Is there a way to add custom properties (asset tag info) to the individual switches in a switch stack?
I am looking to add the info and be able to grab it in some reporting.
Thanks
This what you're after?
If that is what you're after here is how to report on the serial numbers
https://support.solarwinds.com/Success_Center/Network_Performance_Monitor_(NPM)/Create_a_report_showing_the_Switch_Stack_Member_details
I have a feeling its NPM 12 and onwards only
That I already have, though I would like to get a custom property in there to add asset tag info to each switch in the stack.
Ahh okay! Mmmm I don't think there is away without playing about with the Database however I'm sure I might be corrected.
You could also add the asset information to the main interface of each switch and the add in an extra field of the report linked above? Not the best way round it but its an idea. I will have a play an see if I can find an easy way
Got that already, though I would like to add info to the report, so when I pull serial #s it can also pull the (custom) asset tag info
The only way I can see so far would be to add (up to) 9 new fields in the custom property editor, and add the asset tag for each individual switch in that stack, but that would be an ugly solution.
grantallenby, I found this report. I like the information here but want to manipulate it a bit. Do you know of a way to get into the code of the reports to work with it?
CourtesyIT
Hey CourtesyIT,
Which bit are you after?
Do you just mean getting the SQL/SWQL of the web report like you could do with report writer? If so the below will help.
"access the Orion server that hosts the web console and launch the Log Adjuster tool.
From Log Adjuster, enable all items related to Orion Hubble, click apply.
Then, launch the web report on its own browser tab/page.
You'll notice that there's a section that you can expand to see all the details from Orion Hubble.
From those details, you'll be able to see the SWQL used for generating the web report.
Copy the SWQL query and save it to notepad or somewhere.
Go back to Log Adjuster and disable any Orion Hubble stuff, hit apply."
Credit to ekis for the above, if it is what you're after.
Let me know either way
I was able to get it working. Thanks,
CourtesyIT,
I built a report that will take an inventory of all Cisco devices including SFP's, Power Supplies, Fans and Modules for the Cisco Contract. If you need it email me and I can send it out to you.
Hey,
If that's going for all I would like to take a look at it?
I'd love to have a look at that report if possible.
I'd love to have a look at this as well....
Here is an example of how mine looks.

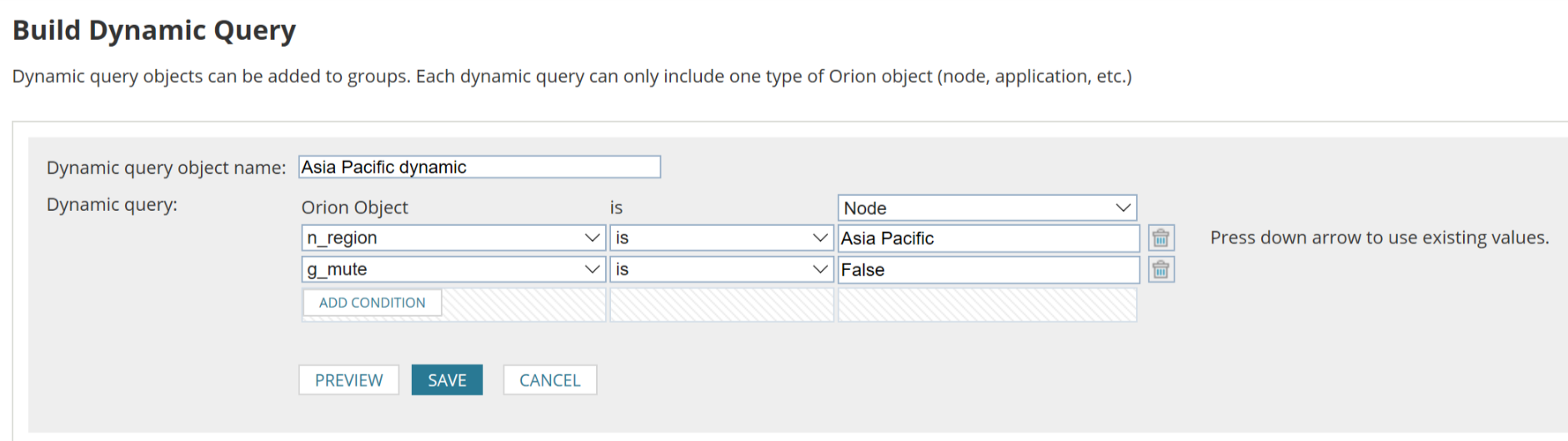

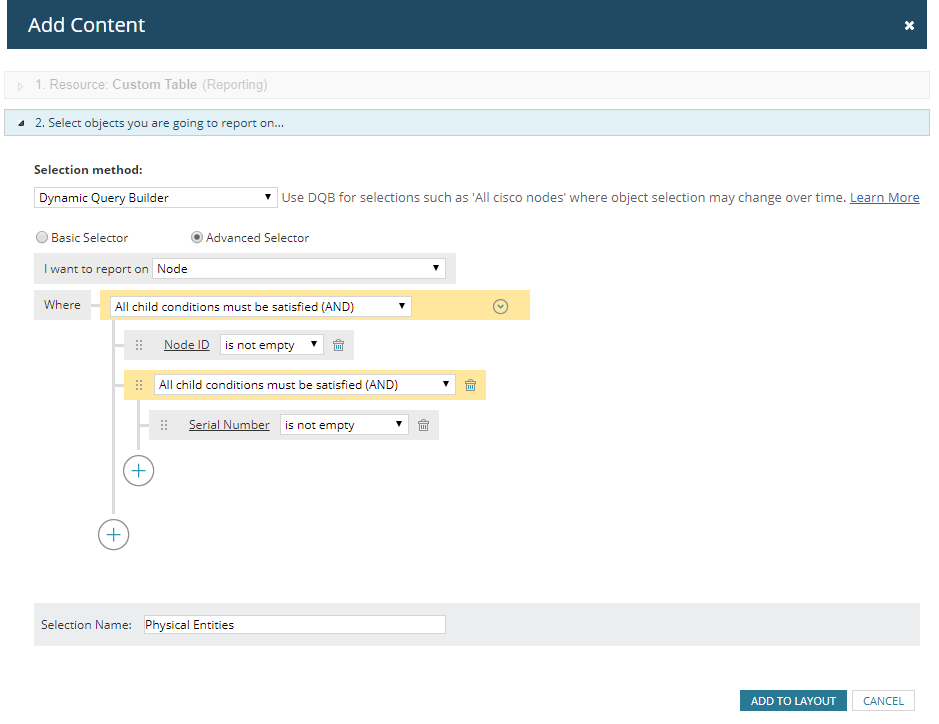

Just copy and duplicate the Cisco 3750 Stack - Physical Entity and edit the dynamic query to match mine
