WPM Domain Account Configuration Tool

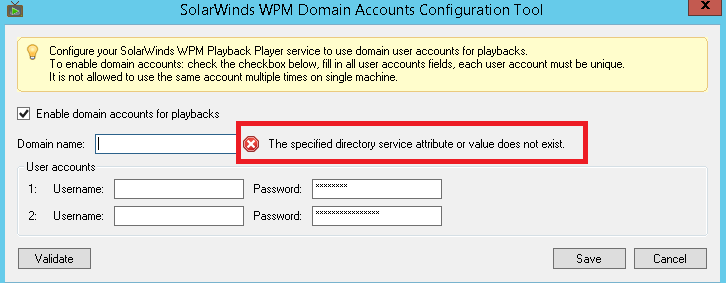

Hi .. i am getting below error when i try to validate. Can anyone help me how i can resolve this. I have entered my FQDN and also tried with IP. But getting same error. Also checked with different domains. Is there any log file i can check to see what is causing this??

Find more posts tagged with

website

Alert

monitor

sam

Node

account

network

tool

recorder

player

npm

wpm

Configuration

server

domain

web

Accepted answers

All comments

max348

anyone???

max348

Seems like the problem was with the permissions. I gave read and list permission for active directory and it seemed to work.

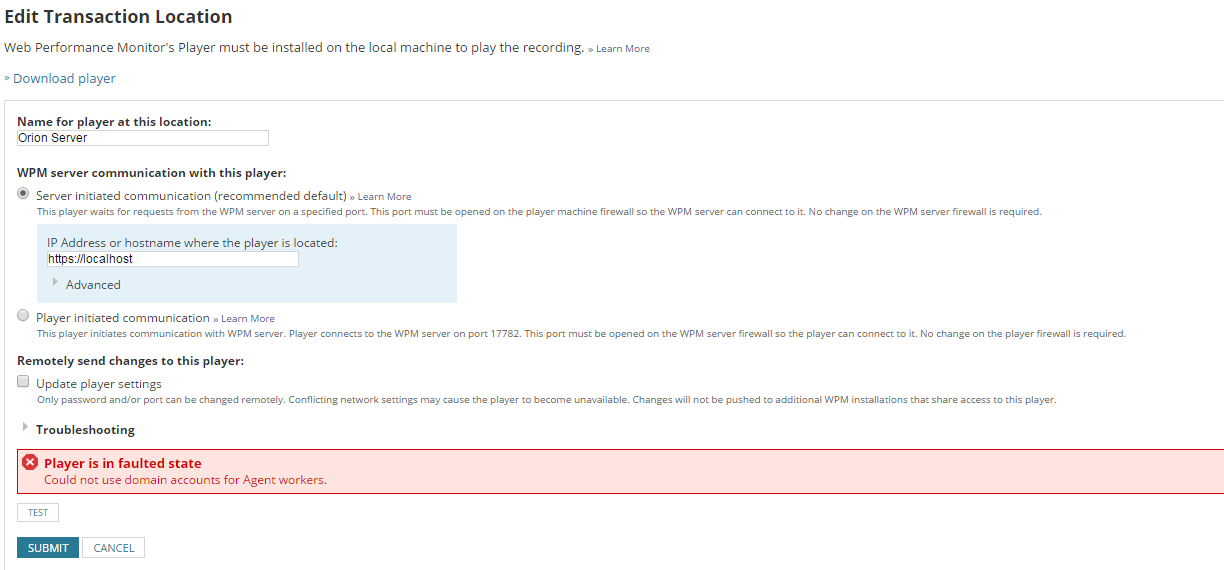

Now i have another problem if anyone could help me with it. After saving the domain account using "Solarwinds.SEUM.AgentDomainConfigurationTool" i am getting below error. Has anyone faced this issue before?? I have checked the file and my domain is in FQDN format and passwords are encrypted.

jiri.tomek

You can check "c:\ProgramData\Solarwinds\Logs\SEUM\AgentService.log" log file. If there is a problem with accounts it should log errors during startup. Common problem with domain accounts is that they have no "logon locally" permission for the machine and WPM player needs that. Try to RDP to player machine using those domain accounts, does it work?

max348

Hi jiri.. Thank you for the reply. I can login with the domain accounts. Here is the log that i got.

*** SolarWinds WPM Agent Service v2.2.1.426, .Net Runtime v4.0.30319 ***

*** Assembly SolarWinds.SEUM.Agent.Service, Version=2.2.1.426, Culture=neutral, PublicKeyToken=null, .NET version v4.0.30319 ***

2017-03-08 13:07:27,926 [7] INFO SolarWinds.SEUM.Agent.Service.AgentService - Starting agent service with PID 23956 as user 'SYSTEM'.

2017-03-08 13:07:27,926 [7] DEBUG SolarWinds.SEUM.Agent.Service.AgentService - { InternalStart entered

*** Assembly SolarWinds.Orion.Common, Version=2.0.0.0, Culture=neutral, PublicKeyToken=316e86daa515e407, .NET version v4.0.30319 ***

2017-03-08 13:07:27,926 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Defining counter [SEUM Agent dropped queue items] type [NumberOfItems64]

2017-03-08 13:07:27,926 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Defining counter [SEUM Agent enqueued items] type [NumberOfItems32]

2017-03-08 13:07:27,926 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Defining counter [SEUM Agent requested playbacks] type [NumberOfItems64]

2017-03-08 13:07:27,926 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Defining counter [SEUM Agent load percentage] type [NumberOfItems32]

2017-03-08 13:07:27,926 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Setting category name to [SolarWinds: WPM Agent service] ...

2017-03-08 13:07:27,942 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Creating counters for category [SolarWinds: WPM Agent service] ...

2017-03-08 13:07:29,457 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Re-creating counters...

2017-03-08 13:07:29,457 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Removing category [SolarWinds: WPM Agent service] ...

2017-03-08 13:07:29,504 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Adding counter [SEUM Agent dropped queue items] type [NumberOfItems64] to CounterCreationDataCollection ...

2017-03-08 13:07:29,504 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Adding counter [SEUM Agent enqueued items] type [NumberOfItems32] to CounterCreationDataCollection ...

2017-03-08 13:07:29,504 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Adding counter [SEUM Agent requested playbacks] type [NumberOfItems64] to CounterCreationDataCollection ...

2017-03-08 13:07:29,504 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Adding counter [SEUM Agent load percentage] type [NumberOfItems32] to CounterCreationDataCollection ...

2017-03-08 13:07:29,504 [7] DEBUG SolarWinds.Orion.Common.SWPerfMonCounters - Creating category [SolarWinds: WPM Agent service] ...

*** Assembly SolarWinds.SEUM.ServiceLocator, Version=2.2.1.426, Culture=neutral, PublicKeyToken=null, .NET version v4.0.30319 ***

2017-03-08 13:07:30,910 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding ILoadMonitor to LoadMonitor

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IWorkerProcessLauncher to WorkerProcessLauncher

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IPlaybackDispatcher to PlaybackDispatcher

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IWorkerProcess to WorkerProcess

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding ISessionHelper to SessionHelper

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IAgentStorage to AgentStorage

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IPendingPlaybackQueue to PendingPlaybackQueue

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IAgentApiEndpoint to AgentApiEndpoint

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IWorkerProcessFactory to WorkerProcessFactory

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IWorkerMonitor to WorkerMonitor

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IRDPClientManager to RDPClientManager

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IWorkerProcessManager to WorkerProcessManager

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding ISessionManager to SessionManager

2017-03-08 13:07:30,926 [7] DEBUG SolarWinds.SEUM.ServiceLocator.BaseNinjectModule - Binding IAgent to Agent

*** Assembly SolarWinds.SEUM.Agent.Common, Version=2.2.1.426, Culture=neutral, PublicKeyToken=null, .NET version v4.0.30319 ***

*** Assembly SolarWinds.SEUM.Common, Version=2.2.1.426, Culture=neutral, PublicKeyToken=null, .NET version v4.0.30319 ***

*** Assembly SolarWinds.SEUM.Agent, Version=2.2.1.426, Culture=neutral, PublicKeyToken=null, .NET version v4.0.30319 ***

2017-03-08 13:07:30,973 [7] INFO SolarWinds.SEUM.Agent.Agent - Starting Agent. Agent ID: afae26b0-07b8-4ec3-b956-cfe2c025b3a7

2017-03-08 13:07:30,973 [7] DEBUG SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - { Start entered

2017-03-08 13:07:30,973 [7] DEBUG SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - Starting worker process manager for 2 workers

2017-03-08 13:07:30,973 [7] DEBUG SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - { LoadAvailableAccounts entered

2017-03-08 13:07:31,207 [7] ERROR SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - Invalid domain account settings.

System.Runtime.InteropServices.COMException (0x8007200A): The specified directory service attribute or value does not exist.

at System.DirectoryServices.DirectoryEntry.Bind(Boolean throwIfFail)

at System.DirectoryServices.DirectoryEntry.Bind()

at System.DirectoryServices.DirectoryEntry.get_SchemaEntry()

at System.DirectoryServices.AccountManagement.ADStoreCtx.IsContainer(DirectoryEntry de)

at System.DirectoryServices.AccountManagement.ADStoreCtx..ctor(DirectoryEntry ctxBase, Boolean ownCtxBase, String username, String password, ContextOptions options)

at System.DirectoryServices.AccountManagement.PrincipalContext.CreateContextFromDirectoryEntry(DirectoryEntry entry)

at System.DirectoryServices.AccountManagement.PrincipalContext.DoLDAPDirectoryInitNoContainer()

at System.DirectoryServices.AccountManagement.PrincipalContext.DoDomainInit()

at System.DirectoryServices.AccountManagement.PrincipalContext.Initialize()

at System.DirectoryServices.AccountManagement.PrincipalContext.get_QueryCtx()

at System.DirectoryServices.AccountManagement.Principal.FindByIdentityWithTypeHelper(PrincipalContext context, Type principalType, Nullable`1 identityType, String identityValue, DateTime refDate)

at System.DirectoryServices.AccountManagement.Principal.FindByIdentityWithType(PrincipalContext context, Type principalType, IdentityType identityType, String identityValue)

at System.DirectoryServices.AccountManagement.UserPrincipal.FindByIdentity(PrincipalContext context, IdentityType identityType, String identityValue)

at SolarWinds.SEUM.Agent.AccountManager.UserExists(String userName)

at SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager.LoadAvailableAccounts()

2017-03-08 13:07:31,207 [7] DEBUG SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - } LoadAvailableAccounts exited

2017-03-08 13:07:31,207 [7] ERROR SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - No user account for Session Manager was found.

2017-03-08 13:07:31,207 [7] DEBUG SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - } Start exited

2017-03-08 13:07:31,207 [7] DEBUG SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerMonitor - Starting worker monitoring

2017-03-08 13:07:31,223 [WorkerProcessMonitor] INFO SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerMonitor - Worker monitoring starting

2017-03-08 13:07:31,223 [7] INFO SolarWinds.SEUM.Agent.Service.AgentServiceApp - Starting Agent Service

2017-03-08 13:07:31,223 [7] DEBUG SolarWinds.SEUM.Common.Helpers.IEHelper - Detected IE version is 11.0.9600.18538

2017-03-08 13:07:31,223 [7] DEBUG SolarWinds.SEUM.Agent.Helpers.DomainAccountsHelper - Encrypting domain account passwords

2017-03-08 13:07:31,254 [7] DEBUG SolarWinds.SEUM.Agent.Helpers.DomainAccountsHelper - Domain passwords successfully encrypted.

*** Assembly SolarWinds.Common, Version=2015.1.35100.9209, Culture=neutral, PublicKeyToken=null, .NET version v2.0.50727 ***

2017-03-08 13:07:31,285 [Scheduler] DEBUG SolarWinds.Common.Utility.Scheduler - Sleeping for 00:00:00.0200000

2017-03-08 13:07:31,285 [Scheduler] DEBUG SolarWinds.Common.Utility.Scheduler - Checking if Scheduler should shutdown

2017-03-08 13:07:31,285 [7] DEBUG SolarWinds.SEUM.Agent.Service.AgentServiceApp - Restarting service host

2017-03-08 13:07:31,285 [7] DEBUG SolarWinds.SEUM.Agent.Service.AgentServiceApp - Configuring HTTPS

2017-03-08 13:07:31,301 [Scheduler] VERBOSE SolarWinds.SEUM.Agent.WorkerProcessManagement.WorkerProcessManager - No active/available worker processes, returning zero load percentage.

2017-03-08 13:07:31,301 [Scheduler] VERBOSE SolarWinds.SEUM.Agent.Service.AgentApiEndpoint - Overall agent load percentage is 0%

2017-03-08 13:07:31,301 [Scheduler] DEBUG SolarWinds.Common.Utility.Scheduler - Checking if Scheduler should shutdown

2017-03-08 13:07:31,301 [Scheduler] DEBUG SolarWinds.Common.Utility.Scheduler - Sleeping for 00:01:00.0200000

2017-03-08 13:07:31,301 [7] INFO SolarWinds.SEUM.Common.Http.HttpsSetup - Using certificate with subject name CN=SolarWinds-SEUM_PlaybackAgent, friendly name SolarWinds-SEUM_PlaybackAgent, and thumbprint 779EE42E8675FA035366E29FD373DD8E1CB1E6B5

2017-03-08 13:07:31,301 [7] DEBUG SolarWinds.SEUM.Common.Http.HttpsSetup - No sslcert http configuration for endpoint 0.0.0.0:17781 exists. Creating a new one.

2017-03-08 13:07:31,317 [7] INFO SolarWinds.SEUM.Common.Http.HttpsSetup - Added sslcert http configuration with appid 47469240-857c-4eed-a69e-818753f6e618 for endpoint 0.0.0.0:17781 and cert with hash 779EE42E8675FA035366E29FD373DD8E1CB1E6B5

2017-03-08 13:07:31,364 [7] INFO SolarWinds.SEUM.Agent.Service.AgentServiceApp - HTTPS Server listening at https://localhost:17781

2017-03-08 13:07:31,364 [7] DEBUG SolarWinds.SEUM.Agent.PlaybackDispatcher - Starting transaction queue dispatcher.

2017-03-08 13:07:31,364 [7] DEBUG SolarWinds.SEUM.Agent.Service.AgentService - } InternalStart exited

2017-03-08 13:07:31,364 [PlaybackDispatcher] DEBUG SolarWinds.SEUM.Agent.PlaybackDispatcher - { ProcessQueue entered

2017-03-08 13:07:31,364 [PlaybackDispatcher] DEBUG SolarWinds.SEUM.Agent.PlaybackDispatcher - } ProcessQueue exited
