Alert from SNMP Trap

tkercher

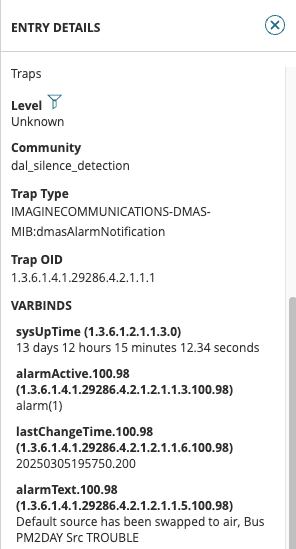

Hello, new to Log Analyzer and have a simple use case that i cannot get to work.  Hoping someone can point me in the right direction.  Below is the trap received in LA:

The conditions that i need to alert on are as follows:

1. The trap must have Varbind called 'alarmActive'.  This varbind from the example above is:  alarmActive.100.98 (1.3.6.1.4.1.29286.4.2.1.2.1.1.3.100.98) where the first part (1.3.6.1.4.1.29286.4.2.1.2.1.1.3) is always the same and the last two integers are variable (100.98) in the example.
2. The value for this varbind must be 'alarm(1)'.

I've tried several different rules but thus far nothing is triggering an alert.  Below are examples of the rules I'm trying:

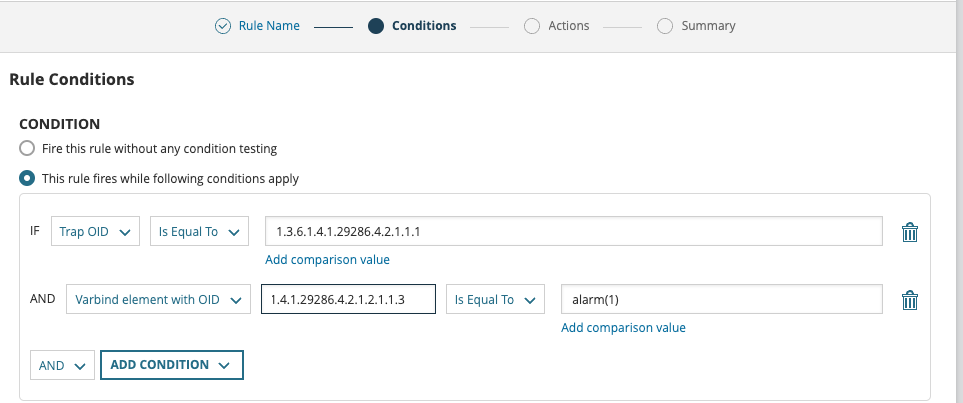

Test Rule 1:

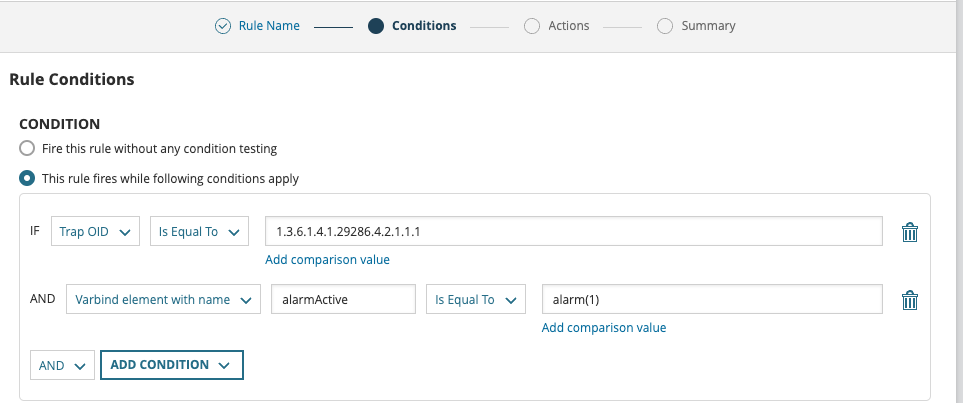

Test Rule 2:

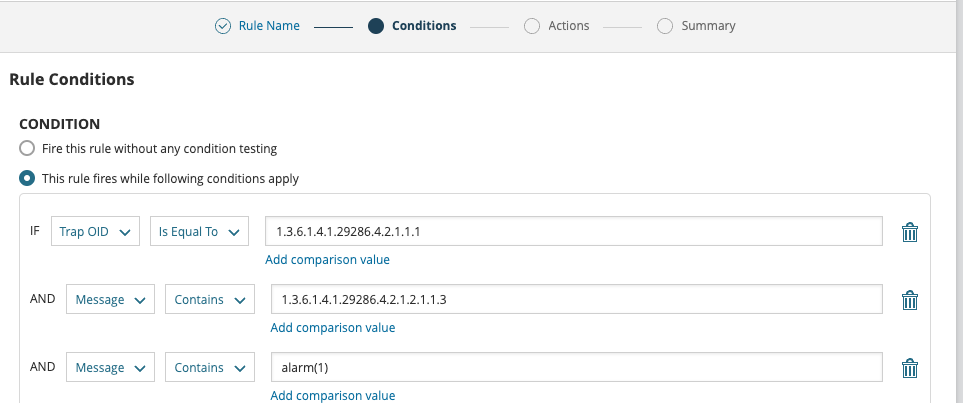

Test Rule 3:

Test Rule 4:

Test Rule 5:

I just can't get match the traps with the processing rules.  Any assistance would be much appreciated!

HillyBilly

Use Test 1 or 2 but use exclude the.100.98 at the end of the Varbinds OID or Name.
the Varbind elements need to be an exact match before it will look at the value being returned.

ie.
Trap OID is equal to 1.3.6.1.4.1.29286.4.2.1.1.1

VarBind Element with OID 1.3.6.1.4.1.29286.4.2.1.2.1.1.3.100.98 is equal to alarm(1)

or

VarBind Element with Name alarmActive.100.98 is equal to alarm(1)

When you get to reporting the alert in a email you can select the VarBinds data by entering  ${N=OLM.AlertingMacros;M=OLMAlertMessage.VbData1} change the number value for the varbind data you require, the default value count is 0 to 20.
