Help with a new group with Dynamic Query

sja

Very new to the PS & API

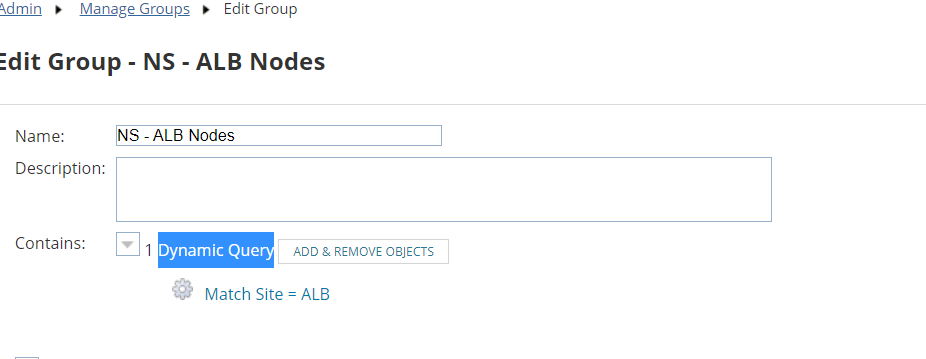

I like to duplicate from the GUI

Group name ALB

filter is CP Site = ALB

Find more posts tagged with

groups

PowerShell

orion sdk

Accepted answers

All comments

KMSigma.SWI

Do you want to enumerate the members of the existing group or do you want to build a new Group containing Dynamic Queries?

sja

Yes do you have something close to that?

KMSigma.SWI

They are two different requests.

Enumerating group membership is (relatively) easy. There's a custom query that does something very similar.

If you wanted to build a group with a single dynamic query inside it, you'd use the CreateContainer verb under the Orion.Container entity. An example is published at OrionSDK/Groups.ps1 at master · solarwinds/OrionSDK · GitHub.

This is what I came up with for your request

# Build a group with a dynamic query member
# Variables

# Group Name and Description
$GroupName = 'ALB'
$GroupDescription = 'ALB Group - build by PowerShell'

# Dynamic Query Name and Description
$QueryName = "DQ_Custom Property 'Site' matches 'ALB'"
$QueryDefinition = "filter:/Orion.Nodes[CustomProperties.Site='ALB']"

# Build the Definition for the Dynamic Query
$MemberDefinitions = [xml]( @"


      $( $QueryName )
      $( $QueryDefinition )


"@ )



      $( $Query1Name )
      $( $Query1Definition )


      $( $Query2Name )
      $( $Query2Definition )


"@ )
#>

# Connect to SolarWinds Information Service
$SwisConnection = Connect-Swis -Hostname "orion.demo.lab" -Username 'YourUsername' -Password 'YourPassword'

# Call the verb
# Arguments are as follows:
#   Name of the Group
#   "Owner" of the group - this is almost always be "Core"
#   Time to poll for status changes (in seconds)
#   Status calculation type: 0 = Mixed [default], 1 = show worst, 2 = show best
#   Description for the group
#   Polling enabled "true" / "false"
#   Member Definitions from above converted to a 'document' from raw XML

# Make the call and store the response (it includes the group ID
$BuildGroupResponse = Invoke-SwisVerb -SwisConnection $SwisConnection -Entity 'Orion.Container' -Verb 'CreateContainer' -Arguments @( $GroupName, "Core", 60, 0, $GroupDescription, "true", $MemberDefinitions.DocumentElement )
# Output the group ID for fun
Write-Host "We created a group with ID: $( $BuildGroupResponse.InnerText )"

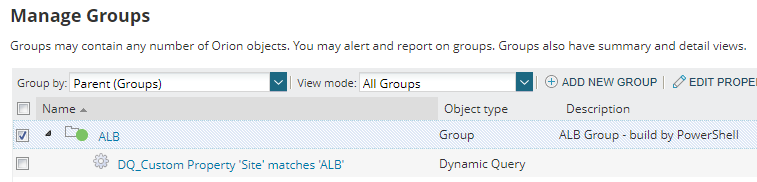

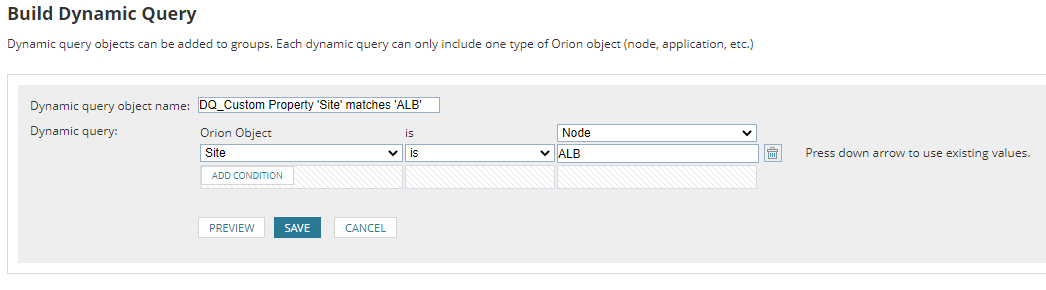

And this is what it did on my lab system:

Hope that helps!
