Reports are one of the powerful tools of Orion Platform. Proper usage of these tools gives deep insight and Monitoring awareness to Users. Re-Indexed Interfaces one of the useful report used in SolarWinds Environment.
Creation of Re-Indexed Interfaces
- Create New Report.

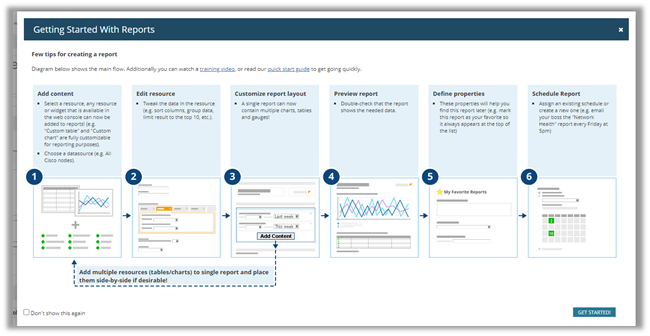

- Click Get started.

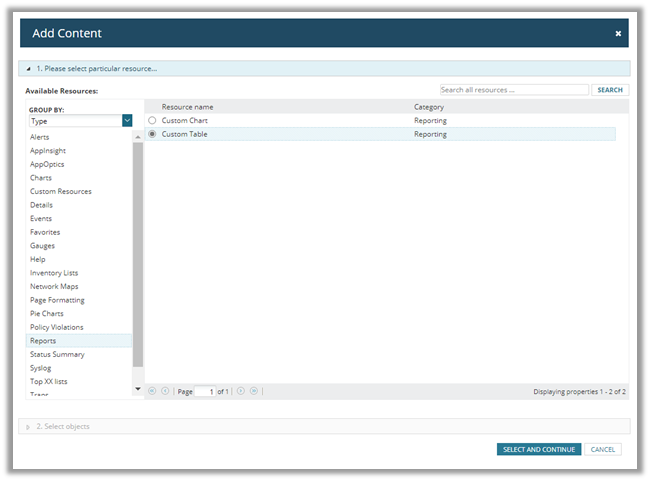

- Select Reports
- Custom Table

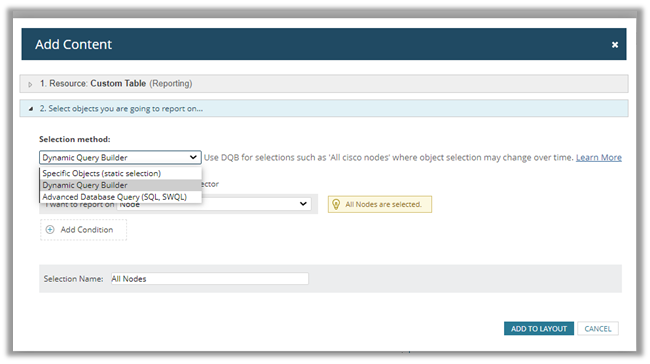

- Here Under selection 3 Options are available.
- Dynamic Query Builder
- Dynamic Query Builder
- Advanced Database Query

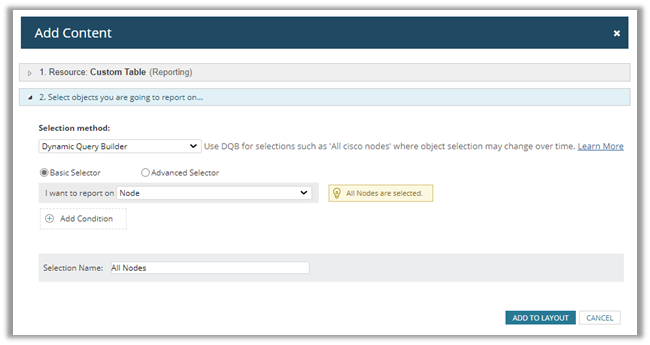

- Can choose basic Sector or Advanced Sector.

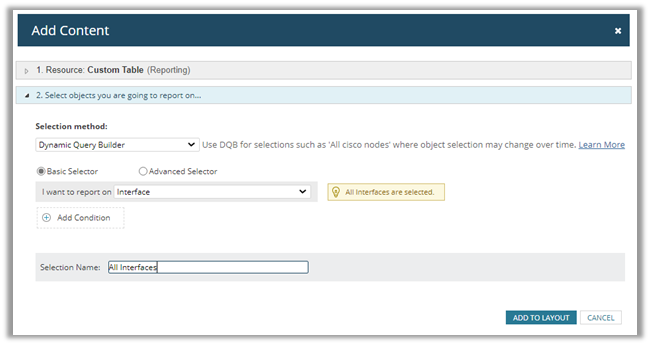

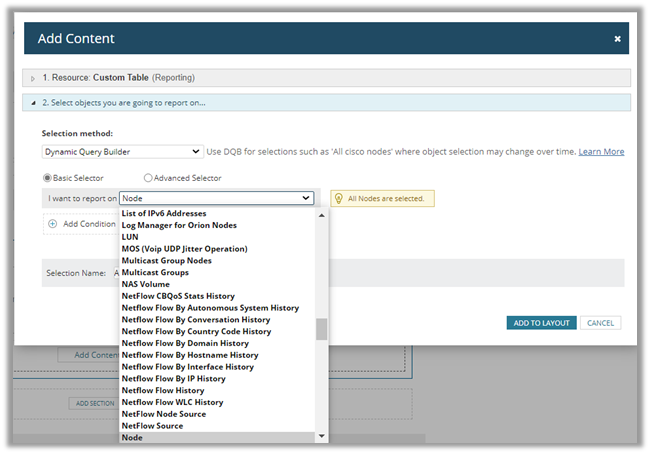

- Click the Dropdown Menu next to “ I want to report on.”
- Interface is selected for this Lab Testing
- Provide the selection Name.
- Click on Add Condition.

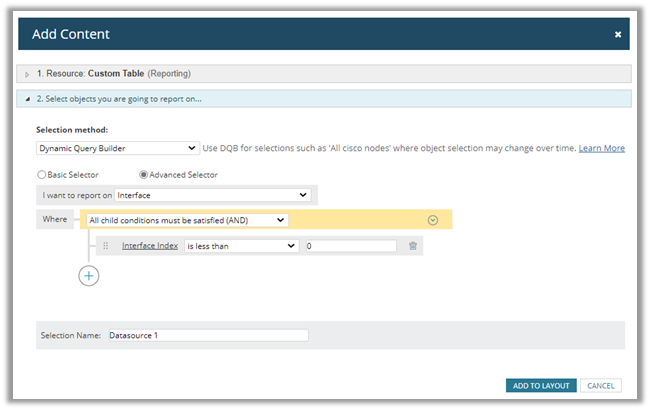

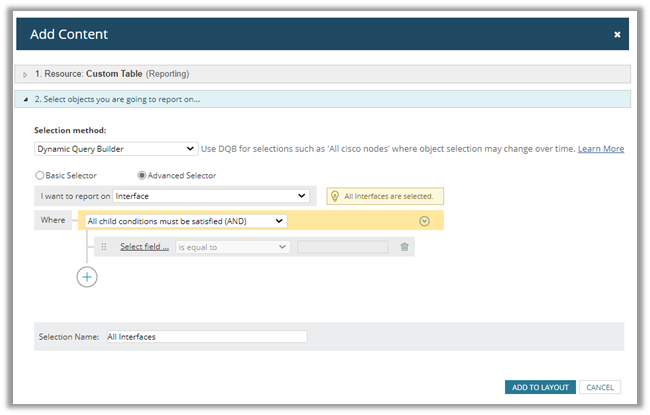

- Advanced Selector Option is used.
- AND Condition is used.

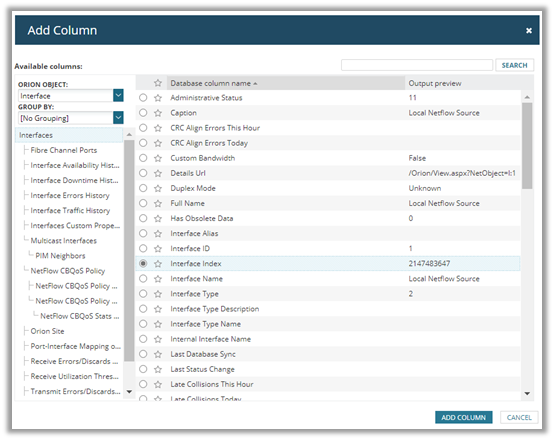

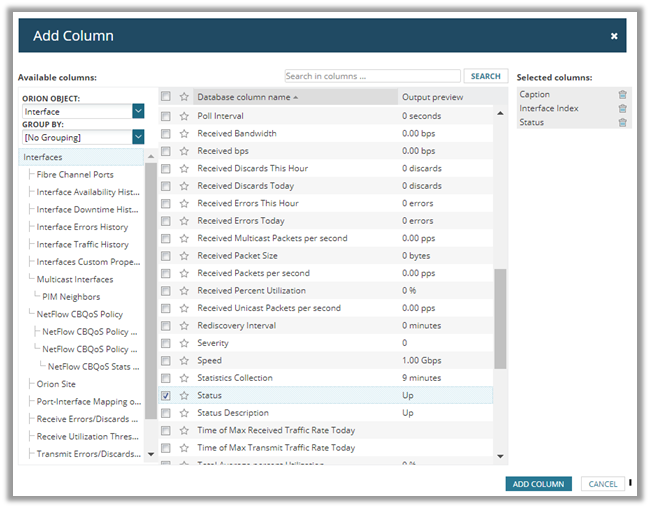

- Click on Select Field
- Interface Index is selected.
- Condition is given as “Interface Index is Less than 0”

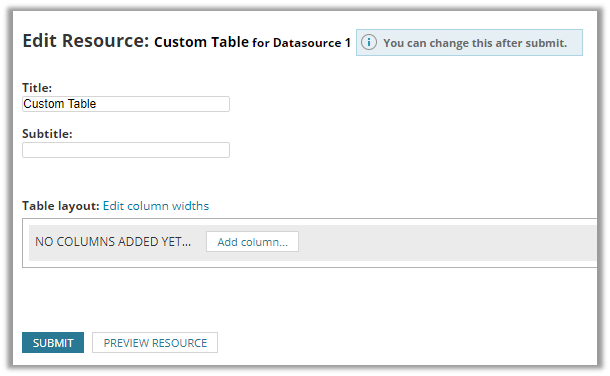

- Add to Layout.

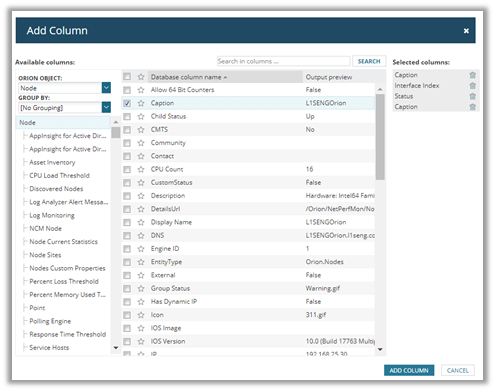

- Under Orion Object Select Node
- Caption Selected from Node

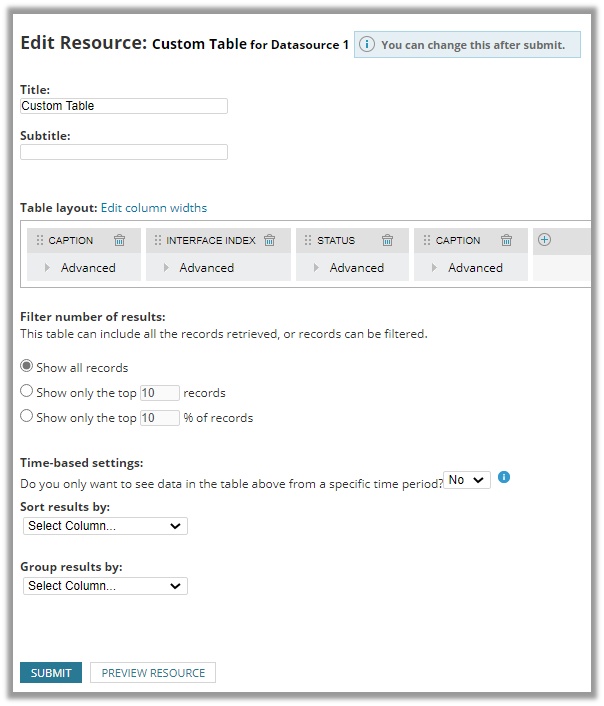

- Rearrange the Columns

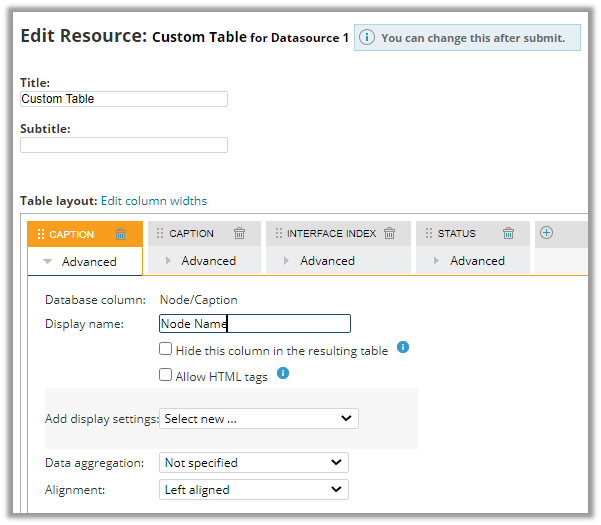

- Rename the Caption. ( Node Caption as Node Name & Interface Caption as Interface Name )

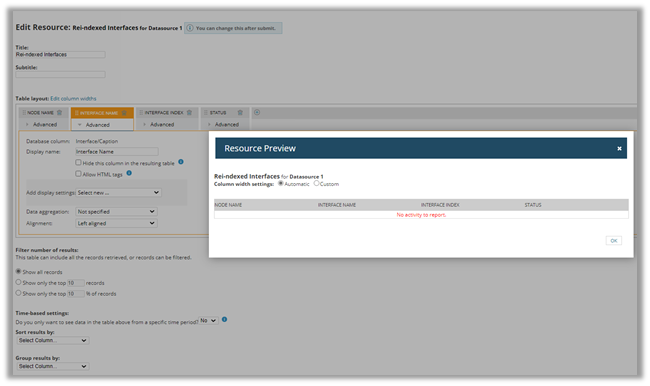

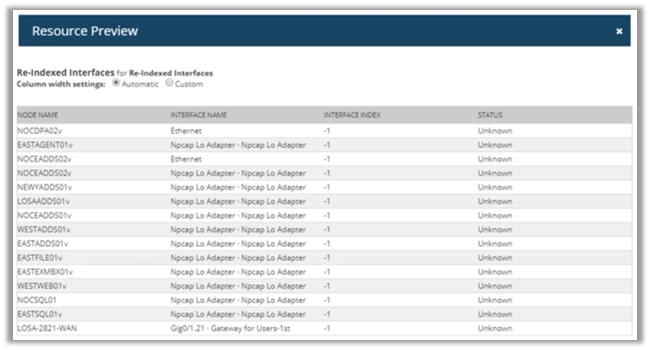

Use Preview resource to check how this report looks like.
- Click Submit

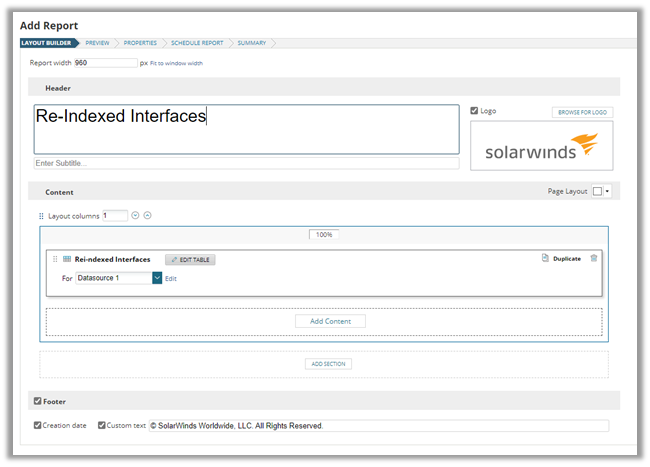

- Add report Name
- Click Next
- Add required Properties

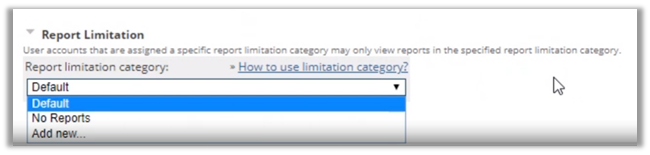

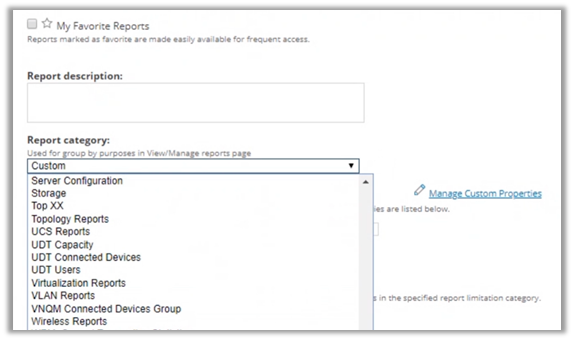

- Here Report Category Can be defined. Also, Report Limitations can be applied.
- Click Next
- Set Schedule report
- Click Next

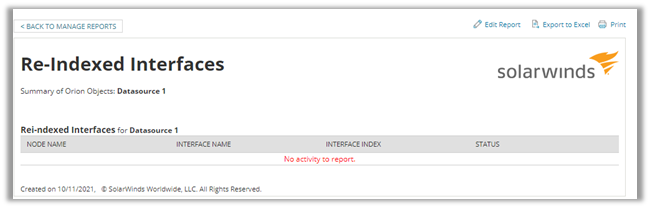

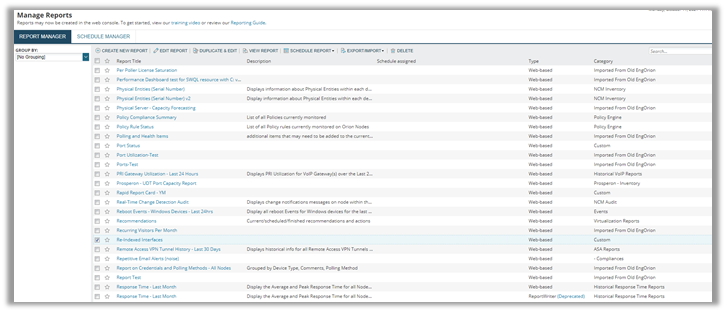

- Summary
