Kindly help me on the OID SNMP UPtime for Network devices

Hi All,

We created the SNMP UPTIME application Monitoring through network devices. we used the Component type SNMP Monitor.

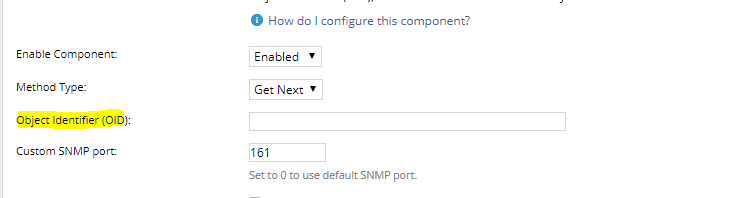

Could you please help me on the OID for this one. Please find the below Screen shot. we used the all CISCO devices in my environment.

Regards,

krish.

Find more posts tagged with

network_monitoring

SNMP

npm

cisco

Accepted answers

All comments

stuartd

Does this post answer your question?

The OID in question for sysUpTime is: 1.3.6.1.2.1.1.3 but you would need to test/check it works for all your devices.

kishore574

Thanks For update.

we tired with this OID(1.3.6.1.2.1.1.3) but it is showing exact time some of network devices. could you advise on the network devices for Sys uptime OID.

Regards,

Krish.

stuartd

Sorry - but I have no idea what you are asking now.

mcam

Probably time to break out the SNMP browser and look at the device.

Try the one from ireasoning.com

That will let you browse through and find the OIDs your looking for

Jfrazier

Be aware that in many cases the uptime value you receive is the uptime of the SNMP agent and not the device/server. You will need to validate that be sure on various devices.

kishore574

Thank you Mcam

actually in that case we have identified the different OID's available in device Browser. Do we have any Single unique OID for network devices Uptime. Please suggested.
