Orion NPM (2019.v4) Website Load Balance Toolbar Issue

Hello All,

We currently stood up a new instance of Orion NPM (2019.v4) in our NA environment. It consists of 1 main polling engine and 2 additional engines as well as 1 additional web engine.

Using our NetScaler device I would like to load balance the 2 Orion web pages creating a VIP (not to be confused with the HA software) called
HTTP://Orion , this way if one site goes down users will be directed to the secondary site. This seems to work however the issue we are running into when accessing the load balanced site (traffic being routed through NetScaler) is the main tool bar seems to disappear.

We previously were F5 load balancing without any issues.

I will post a picture for reference.

Has anyone else experienced this issue before?

thanks,

Matt

attachments.zip

Find more posts tagged with

website

load balance

toolbar

npm

Accepted answers

All comments

saw10

Not had this issue yet, I am in the process of bringing up 3 additional Web Servers (AWS), total of 4 AWS.

the link that I give my users is http://orion01.domain.com

But I have had problems between the primary and AWS

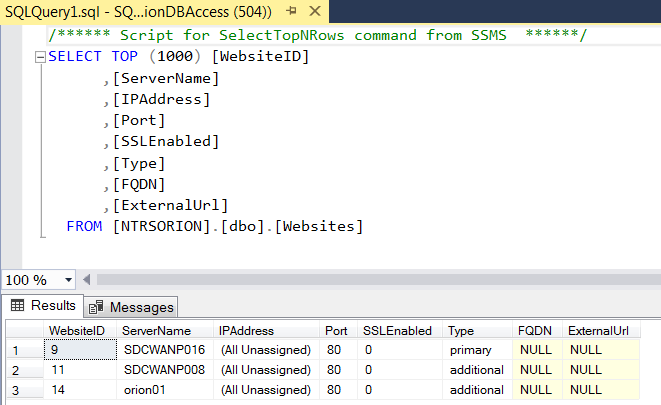

you may want to dig into the use of this table, not sure it may be just for links

Not Sure

But like I said, we are bring 3 AWS so . . . . .

dgsmith80

Hi Matt, I had this issue just recently when trying to use a custom port from our LB, for some reason it didn't like it and we had to roll back to 443. Might be worth checking if your LB does anything similar in terms of port changes from the NetScaler to the IIS.

primom

Thank you dgsmith80. Once we configured the Orion website to use SSL cert and configured NetScaler to use port 443 our issue with the toolbar has been resolved.
