NetPath Accuracy

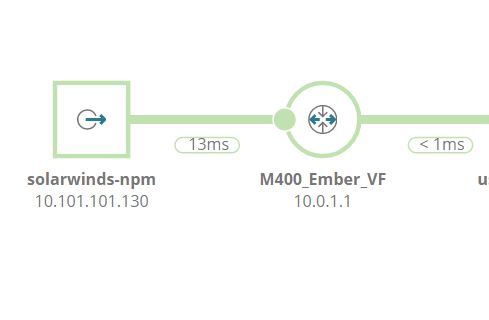

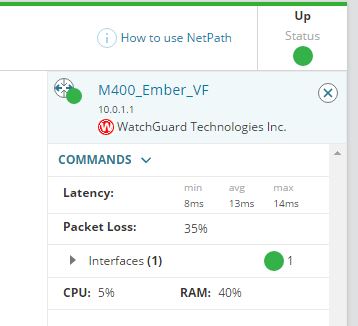

I have a Netpath connection from my Solarwinds Orion server to a customer. This first connection on the path shows a 30% packet loss w/ 13ms latency. This is my local firewall. Pinging the firewall from my Solarwinds Orion server directly reports back 1ms, and no packet loss. Any ideas? The reason in the image for the subnet change - this firewall has multiple LAN and WAN addresses. I'm assuming NPM is using the default LAN address, even though Solarwinds is using 10.101.101.1 to get out. To verify it's not a routing issue I've also pinged 10.0.1.1 from Solarwinds and received the same result from pinging 10.101.101.1 - low latency and no packet loss.

Find more posts tagged with

npm 12.0

NetPath

network performance montor

Accepted answers

jeff.stewart

There is a hotfix for NPM that should address the 13ms latency issue between those two devices. Can you apply that and see if it helps?

Jeff

All comments

slebbon

Just a thought, but it's a firewall/security device right? Does it have 'dynamic' or behavior based rules that block/filter 'suspicious' traffic? The scanning traffic from NetPath might be triggering some protections and it might rate-limit or block some of the traffic? Is there a way to white-list the solarwinds server in it's rules?

jeff.stewart

There is a hotfix for NPM that should address the 13ms latency issue between those two devices. Can you apply that and see if it helps?

Jeff

rschroeder

jeff.stewart, would you please post more information about that fix? I have the same problem.

Also, if that's not it, remember that ICMP is not a high-priority protocol. A firewall or router or switch will answer ICMP requests if configured to do so, but only after their main duties (forwarding packets to / from computers and servers) are complete.

I, too, have seen unexpectedly high latency from my NPM server to its gateway. I later saw that the gateway (a 7609 doing L2 and L3 services, along with WCCP) had one of eight CPU's often at 100%. Finding and correcting the cause of that resource utilization resulted in a mapped / recorded decrease in apparent latency between the Orion box and its gateway.

If your ends up having similar issue to my situation, you can look at NetPath as a nice tool that's discovered a potential problem on your router, and then you can spend your cycles appropriately to discover and correct the cause.

mtoto

Thank you all for the suggestions. Jeff - thanks for the heads up on the hotfix. That did fix my gateway latency issue. Still seeing a lot of packet loss - maybe that's legit and I need to figure that one out.

Thank you.

rmatejka

NetPath does not use ICMP because of the accuracy issues. It uses TCP in a manner that is similar to the way an actual application would respond.

Rick Matejka

vmorales1234

We have applied the NPM hotfix that fixes the long latency report for first hop. However, we are seeing the same packet loss issue from the core switch to our enclave firewall, and between the edge router to the perimeter firewall. The packet loss reported by netpath is between 30% to 50% at times. Can someone explain how netpath calculates the packet loss, and is there any issue specifically with the hops to Cisco ASA firewalls, because that seems to be the common element.

We are looking at the hardware, but we don't want to waste time on troubleshooting if this is a known issue.

Thanks

rmatejka

We are currently looking into the packet loss issues that are occurring within certain environments.

Rick Matejka

vmorales1234

Thanks for the info.

Hello everyone,

Does anyone know if there is a fix for the packets loss issue ?

We are currently running NPM 12.0.1 and are seeing packets loss above 40% where there most likely is none.

With a packets loss of 40% between the probe and destination, the network would be unusable.

byrona

jeff.stewart we are also seeing packet loss similiar to others but are unable to verify that packet loss anywhere. Also when I look at the NetPath Packet Loss graph (which you need to add as it isn't there by default) it doesn't show any packet loss.

Thoughts?

jeff.stewart

Adding cobrien the PM for NetPath to see if he has any suggestions.

CC - lanli.fsm

cobrien1

Can you provide a sanitized screenshot highlighting what is unexpected?

byrona

cobrien sure thing! Here is a screenshot where you can see NetPath suggesting packet loss on an interface on the Firewall; however, we are unable to actually substantiate this packet loss anywhere. Also on the graph at the bottom I have added the Packet Loss graph and it also doesn't show any packet loss. I am trying to understand where NetPath is getting this packet loss number from. It's also not the first time I have seen this on a NetPath.

NetPath Packet Loss.png

ecklerwr1

It actually does us ICMP as well actually:

Ports

Open the following ports on your firewall for network connectivity used by NetPath:

Port	Protocol	Direction	Source	Destination	Description
17778	TCP	Outgoing	NetPath probe	Polling engine	Used to send information back to your Orion server.
11 (ICMP Time Exceeded)	ICMP	Incoming	Networking devices along your path	NetPath probe	Used by the NetPath probe to discover network paths.
User configured	TCP	Outgoing	NetPath probe	Endpoint service	Any ports of the monitored services that are assigned to the probe. Used by the NetPath probe to discover service status.
43 443	TCP	Outgoing	Main polling engine	BGP data providers and announcements, such as: http://whois.arin.net/ui/ https://stat.ripe.net/	Used by NetPath to query BGP information about the discovered IP addresses.

rschroeder

If you haven't already verified or resolved the packet loss issue, what have you done to prove there's loss, or no loss?

If you remoted into your NPM poller that says there's packet loss, and set a steady ping to nodes that show high packet loss in NPM, your results should prove whether there is packet loss. Have you tried confirming using pings?

byrona

I have basically done all of those things. NPM shows no packet loss dropped/discards on any of the interfaces. A continuous ping (while I realize this is not what NetPath does it's still a valid test) also shows no packet loss. Also, with packet loss as high as is being indicated the application wouldn't work and it's working just fine.

rschroeder

The only other test might be to send fully-loaded packets in the ping and verify the larger packets (1500 bytes) are not being dropped. Use "ping x.x.x.x -t -w 1 -l 1500". Ordinary ping tests from windows boxes only send 32 bytes of data instead of 1500.

I've seen cases where small (default) ping packets pass successfully, but packets larger than a specific size (e.g.: 1424, 1432, 1472, 1488) were dropped. This was caused by intermediate equipment not being able to handle the required packet sizes for q-in-q. "Normal" traffic, like typical PC and ICMP tests, all worked perfectly. "Special" traffic that required all 1500 bytes, plus 22 more for tagging VLANs inside WAN provider VLANs, were dropping.

In that case the WAN provider's gear couldn't handle packets larger than 1500, while our WAN routers' MTU's handled up to 1532 quite nicely. The WAN provider had to replace their gear with something more robust.

If your fully loaded packets fail, then it's time to open a technical support case with your network hardware service provider and find out why.

If they DON'T fail, it's time for a technical support call to SW to get resolution.

Always assuming your interface stats on the NPM poller and the polled device show no errors, no loss.

ed.amerson

Is there any update on when this bug might be fixed?

worto03

I'm seeing this too, has anyone raised it with SW? It doesn't happen to all netpaths but we have some that show high packet loss and from what I can tell it's not a real issue.

A tcping on the same port shows no packet loss & there are no complaints from customers whose traffic would be using this route.

rschroeder

The hot fix corrected the problem in my SW environment. NetPath is much improved by it.

worto03

Thanks for the reply which hotfix was it?

I see we haven't applied this one

Orion Platform 2017.1-Hot Fix 3

But there is nothing in the release notes about netpath?

rschroeder

It'll depend on the version you're running, but I believe you've probably found the right one. So far I've had no problems with any of my Orion modules after installing hot fixes (since 2004!); I suspect you'll be safe installing it.

agbansil

May I know the Hotfix version for this issue?

rschroeder

This is an old thread--I don't recall which hotifix did the job, and we're already on 2019.2. It works fine in this environment.

rschroeder

This is an old thread--I don't recall which hotifix did the job, and we're already on 2019.2. It works fine in this environment.
