Question on Network Atlas maps

Hi, I have a couple of questions on statuses and colors. According to the documentation, when an interface goes down, the icon should turn yellow. I created a network map, put a device in it, and shut down the interface. I now get a green circle with a little red circle on the lower right; however, the icon is green, not yellow. Subsequently, when I add the device into a group, and put that group in the map, the group icon does not turn yellow, even if I have it set up to show the worst condition.

Is there any way to set up the maps, so that when an interface goes down, it will turn the group icon yellow? I have a feeling the color stays green because all of the nodes within the group still have a status of "UP." I can set up alerts for the notification when the interface goes down, but I would also like to see a visual representation of it.

Any help would be greatly appreciated.

Find more posts tagged with

color_indicator

maps

status_icon

Accepted answers

cmgurley

To make the group/map icon turn yellow, you will need to add the interfaces to the group and/or put the interface (not the node/device) on the map. That sub-icon you're seeing is showing you that a component of the node is down, but that the node itself is still up.

Let me know if that helps. I can give more details/steps if needed. Thanks!

~Chris

All comments

cmgurley

Let me know if that helps. I can give more details/steps if needed. Thanks!

~Chris

rhugh

This seems to ALMOST work the way I want. The only thing I see here is that I had to create a dynamic query to get to the interface. There is no way to add the interface to a group; you can only add the whole node to the group.

Also, after trying this out, I shut down the interface, but the group icon still shows green. Am I missing a trick somewhere?

Ray

cmgurley

Hey Ray,

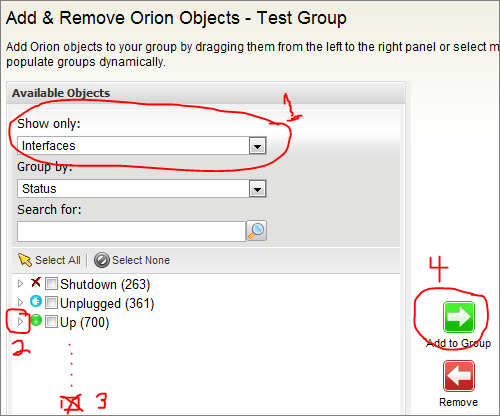

What version of NPM are you using? I'm running 10.2.2 and my groups can have interfaces. When I create a group and am on the "Add & Remove Orion Objects" step/page, the "Show only:" drop down list has "Interfaces". When I select this, I see all of my interfaces from which I can check the boxes next to individual ones and click the green arrow to "Add to Group".

If I missed the issue, let me know and we'll keep digging together on it. Thanks.

~Chris

rhugh

Chris,

That's a big fat DUH! I am running 10.2.2 as well, and now I see what you are saying. I wasn't even looking at the dropdown boxes at all. I used the dynamic queries, which led me to the same place, and, unfortunately, the same conclusion: your method works if the interface is actually down, but doesn't work if it was administratively shut. That is to say, the group icon stays green even though the port is shut down. I don't know if that is by design, but I would prefer, for my purposes, that the icon turns yellow or red.

Thanks for all of your input!

Ray
