SNMP Tables

Hi,

We are currenly running Orion NPM 10.1.

We have an IBM BladeCenter that has an SNMP Table available for monitoring the Fan Packs (average Speed, RPM, Error Status) etc.

What I have attempted to do in the Universal Device Poller is pull in multiple columns from the SNMP table and display them in the Orion console. This however, does not seem possible?

Currently, I have only been able to get 2 columns showing. Is it possible for NPM to pull multiple OID's from an SNMP table and display them in a single, 3 or 4 column table in Orion?

I hope this all makes sense.

Cheers in advance.

EDIT: The OID of the table I want to retrieve is: 1.3.6.1.4.1.2.3.51.2.2.6.1

Find more posts tagged with

SNMP

ibm_bladecenter

snmp_table

Polling

Accepted answers

shuth

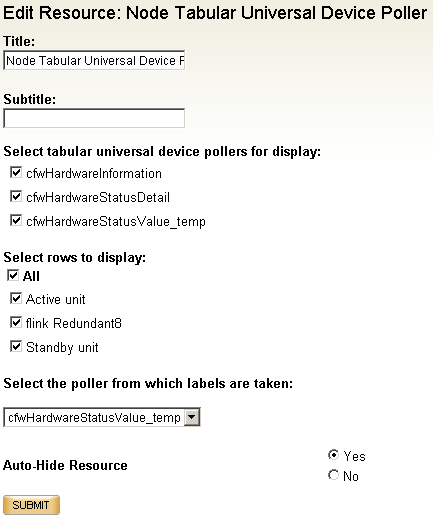

You should be able to poll the multiple OIDs and then add a "Node Tabular Universal Device Poller" resource to the Node Details page. If you click Edit, you should be able to tick/check the checkboxes next to the universal device pollers that you want to display in that single table.

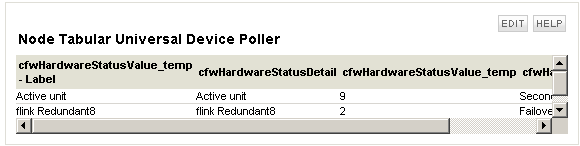

For example, I've been playing around with some ASA OIDs and created the following to demonstrate.

I hope this is what you were looking for.

Steven

All comments

shuth

For example, I've been playing around with some ASA OIDs and created the following to demonstrate.

I hope this is what you were looking for.

Steven

nvink

Champion!

That is exactly what I wanted.

Cheers!
