Monitoring Serverscheck devices through Orion

I'm trying to get these environment sensors for temp and humidity to show up in Orion, but so far haven't had any luck. Does anyone have any experience with these devices or any custom pollers they could share?

I have 2 SensorGateways, 3 temp sensors, and a humidity sensor.

Link for reference: http://www.serverscheck.com/sensors/

Thanks in advance.

Find more posts tagged with

custom_poller

solarwinds

mib

serverscheck

Accepted answers

cczech

I just purchased one of these myself, however just the base unit, no additional sensors.

Here's what I did.

SolarWinds Knowledge Base :: How do I add a MIB to the SolarWinds database? How do I add OIDs to the SolarWinds database?
SolarWinds Knowledge Base :: Updating an existing MIB database
Added the SensorGateway to NPM
It was then detected as a "Microchip Technology Inc" device
Then using ServersCheck free MIB Browser - http://www.serverscheck.com/mib_browser/
and their MIB file - http://downloads.serverscheck.com/sensors/sensorgateway.mib
I was able to find that Sensor 1 (LCD Screen) MIB was "1.3.6.1.4.1.17095.3.2.0"

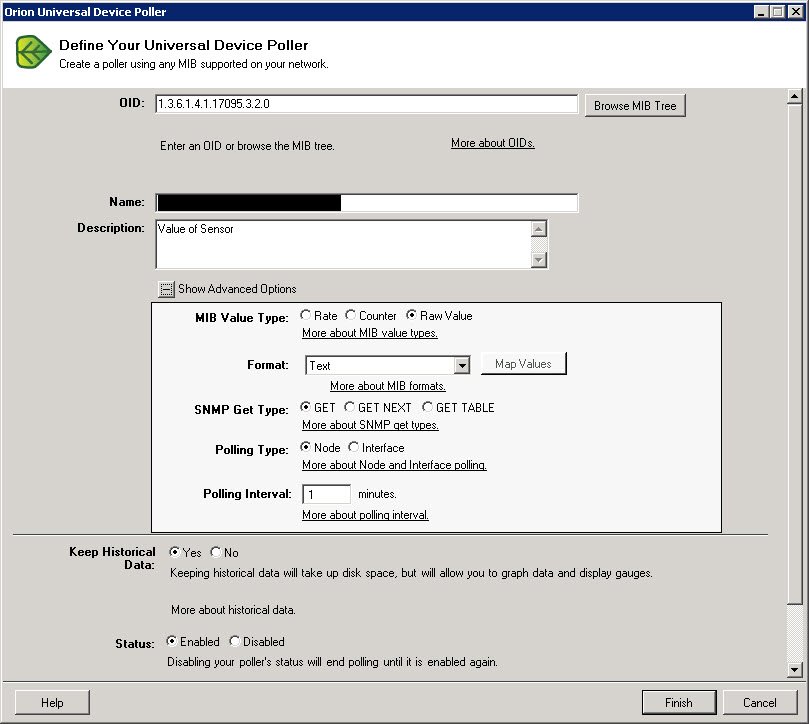

This led me to being able to configure the poller with the following (picture) config to get the LCD temp info.

11-4-2013 11-50-20 AM.jpg

Hope this helps... don't forget to rate the response.

Chris

sensorgateway.zip

All comments

cczech

I just purchased one of these myself, however just the base unit, no additional sensors.

Here's what I did.

SolarWinds Knowledge Base :: How do I add a MIB to the SolarWinds database? How do I add OIDs to the SolarWinds database?
SolarWinds Knowledge Base :: Updating an existing MIB database
Added the SensorGateway to NPM
It was then detected as a "Microchip Technology Inc" device
Then using ServersCheck free MIB Browser - http://www.serverscheck.com/mib_browser/
and their MIB file - http://downloads.serverscheck.com/sensors/sensorgateway.mib
I was able to find that Sensor 1 (LCD Screen) MIB was "1.3.6.1.4.1.17095.3.2.0"
This led me to being able to configure the poller with the following (picture) config to get the LCD temp info.

11-4-2013 11-50-20 AM.jpg

Hope this helps... don't forget to rate the response.

Chris

sensorgateway.zip

ddewane

It looks like Orion likes having a trailing .0 on the OID. I added that in and it started getting temp data. Now I just have a weird issue where the temp graph is showing correctly under the node display, but not on my main summary homepage, but that's not that big of a deal.

Many thanks for your help!

matthew.mills

For V5 base stations I had to use iReasoning as serverscheck's mib browser is deprecated and the link on their website is dead.

One comment I would make about the screen shot of the device poller, I have been setting that to format: None rather than text and that seems to be very reliable.

OIDs

base station - 1.3.6.1.4.1.17095.3.2.0

temp/humidity off probe 1 - 1.3.6.1.4.1.17095.3.6.0

temp/humidity off probe 2 - 1.3.6.1.4.1.17095.3.10.0
