Cisco 3850 Reporting lsmpi_io

We recently installed our first WS-C3850-48P switches. NPM has been reporting high memory utilization, which is attributed to the lsmpi_io reading. I saw that there were similar issues with Cisco ASR devices and a customer poller was created. Are there any pollers out there than can show the correct memory utilization for the 3850's, or an incoming update to the existing MIB? Thanks.

ASR Thread: Memory usage reporting incorrectly on CISCO ISR 4331

Switch readout:

"switch-a" #show memory free

Total(b) Used(b) Free(b) Lowest(b) Largest(b)

Processor 916107072 310302384 605804688 600460920 601617972

lsmpi_io 6295128 6294304 824 824 412

NPM readout:

Find more posts tagged with

nodes with high memory utilization

lsmpi_io

cisco 3850

pollers

Accepted answers

All comments

bmason

Sean -

Did you find an appropriate poller to use for your 3850s? I'm actually running into the same thing. I don't believe it is reporting on the lsmpi_lo value though. It is reporting on the output of the following command:

show platform software status control-processor brief

If you take the Used sum / Total sum, you will get the percentage that Solarwinds is reporting. Currently my Active/Standby switches run at about 84% and my Member switches run at about 51%. What this leads to is the switch stacks that have more switches show considerably less memory usage than 1 or 2 switch stacks, since the more Member switches in the stack bring down the average. I'm looking to get something that shows a more consistent memory percentage across the switches stacks that have varying amounts of switches in them.

Brendan

sean.vankirk

Brendan, the tldr version is that no, we have not found the right poller. Our switch stack only has three switches in it currently, so it's not maxed out. Has anyone else found something?

pmurray

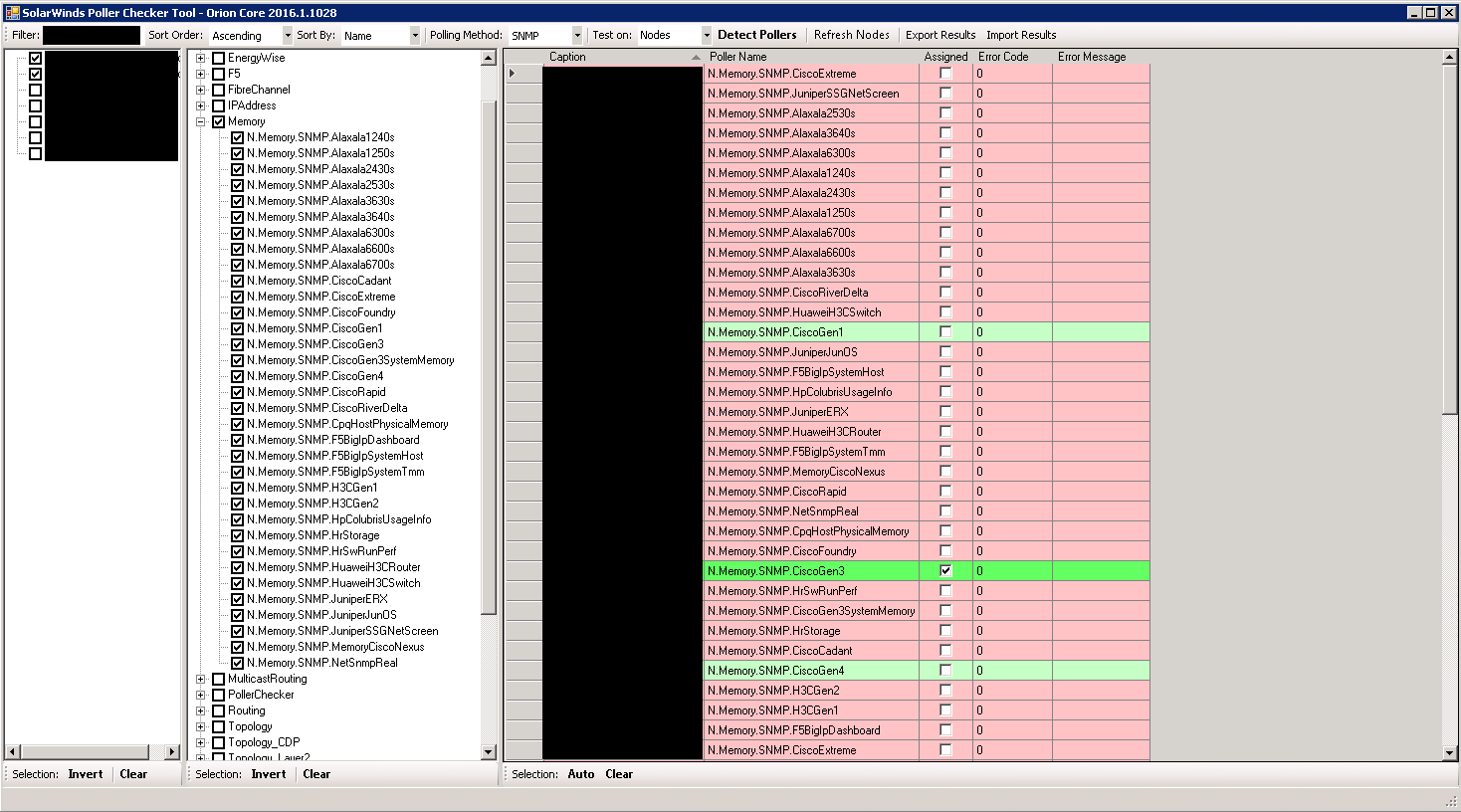

I ran into the same issue myself on a WS-C3850-12XS-E, and followed the recommendations at this link:

A Node Shows Incorrect CPU & Memory Utilization - SolarWinds Worldwide, LLC. Help and Support

I selected and checked each supported poller until I found one that reported the right results.

Hope this helps.

Patrick

bhoglan

I ran into this issue on a pair of Cisco 4451 Gen 3 ISR routers. Same issue with lsmpi_io. I followed the directions under A Node Shows Incorrect CPU & Memory Utilization - SolarWinds Worldwide, LLC. Help and Support

In my specific case, I changed the N.Memory.SNMP.CiscoGen4 memory poller to the N.Memory.SNMP.CiscoGen3 poller and they're now showing correct usage values.

charlesjsmith

I'm running into similar issues you all describe. Seems the mibs being polled by default are not accurate and i have also tried making my own custom poller using

1.3.6.1.4.1.9.9.48.1.1.1.5 (used) 354916752
1.3.6.1.4.1.9.9.48.1.1.1.6 (free) 497362912

no luck though as the numbers do not come close to show platform resources.

Any help is much appreciated.

Chuck

charlesjsmith

I found the mibs which are tables and then created custom pollers

1.3.6.1.4.1.9.9.109.1.1.1.1.12 - mem used

1.3.6.1.4.1.9.9.109.1.1.1.1.13 - mem free

Manipulate as you see fit. Did the trick for us.

B/r,
Chuck
