High Temperature Alert

NPM 12.4

Does anyone have a condition on where NPM will alert when a 3850 single or stack will alert when the system is running a high temperature? Speaking with SW-Tech we could only create per sensor rather than Node alone. So this would give me an alert per sensor.

IE:

1 switch would send 2 emails with high degrees

Find more posts tagged with

high temp

alert details

trigger conditions

npm

Accepted answers

All comments

pratikmehta003

yes it will be sensor based and not overall node based...

lynchnigel

Have you managed to find what you wanted?

Various ways you could do it.

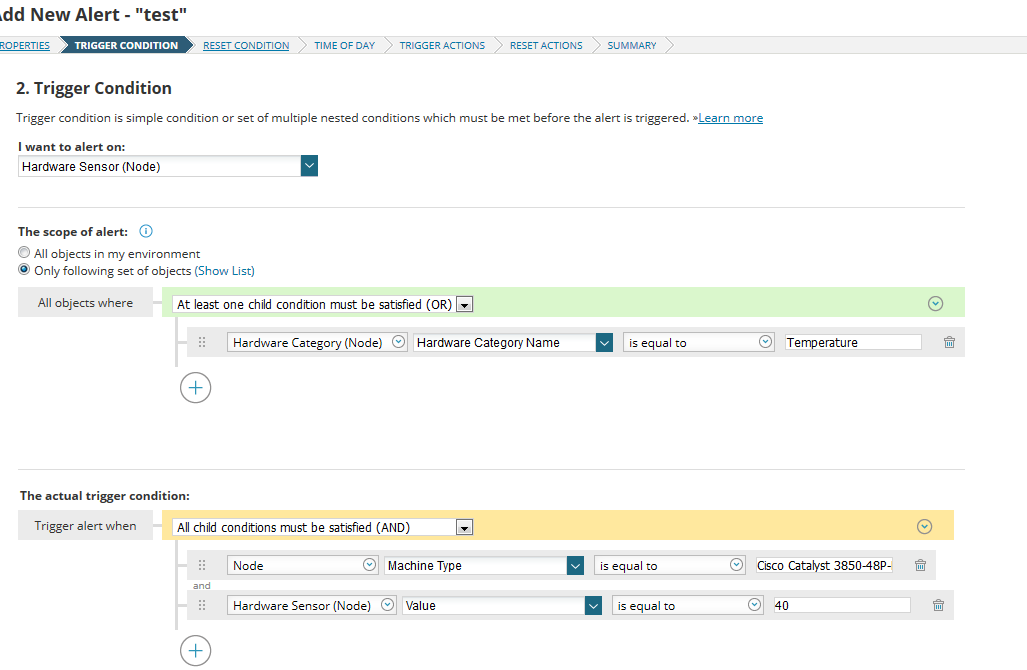

You could do something like this:

We have a group of the sensors that we care about for visual viewing. You can do a dynamic add to the group you want them in for each building or something so they alert on a map.

marnell

thank you I was able to get it working. I had to use a certain Sensor to get the correct temp alert. Cisco TAC sent me their cloud sight for OID

rschroeder

marnell, I think many Thwack users would like to leverage your experience. Would you mind sharing the TAC cloud sight OID, and perhaps some sanitized screen shots of your new alert, its scope, and its trigger conditions?

I think folks would like to have a single widget displaying the top X devices by decreasing temperature. Building it might be complicated if each different kind of hardware node (server, router, switch, UPS, etc.) has a different trigger threshold, or if some use Centigrade while others use Fahrenheit.

Swift packets to you for your good idea!

Rick Schroeder

marnell

Cisco Cloud OID

https://snmp.cloudapps.cisco.com/Support/SNMP/do/BrowseOID.do?local=en

You can use this link to search for the OID and then navigate through the tree. Once you find an OID test it in the Orion Universal Device Poller.

In order to create the widget for decreasing temperature the OID for temperature needs to be assigned to the node. I compare what Orion pulls to what information in the cli of the device. You can convert to Fahrenheit buy using the transform result. I used 0.1*{internalTemp_Arnell} <-- I created that for an OID I was using for a device that was only displaying Celsius.

You can create Custom Chart and then select the nodes and variables by temperature. It should show the temperature edit. I will have to create the widget to verify and test.
