Nesting or Grouping Alerts Clarification

My alerts are getting quite diverse to say the least.

Is there a way to nest or group alerts into single logic where say:

I want to trigger an alert if Linux fixed disk is over 90% or if the server is down for more than 10 minutes.

Or for a Windows example, I alert of if a component has a bad status and I have another alert if the server is down for 10 minutes.

I have these set individually but I would think it of benefit to be able to group these base on server scope. It wouldn't be much of an issue but management of 3 different sets of alerts going to 50 different groups is becoming a bit of a task. I keep coming up empty handed in searching and at first I thought complex conditions would have been the trick but if I am reading the documentation correctly (videos as well) it's an AND statement rather than an OR statement. Should I take a step back and try to approach this from an Application Template perspective and hope the template is out there?

Find more posts tagged with

logic

sam

monitoring alerts

Accepted answers

mesverrum

The alert system is intrinsically tied to the object type you are alerting on, the GUI will not really let you cross from one object type to another in a single alert. You could do that in SQL, but its clunky and unnecessarily complex to even bother.

For the situation like you are describing I typically do this:

Assuming Nodes have a custom property called OwnerEmail

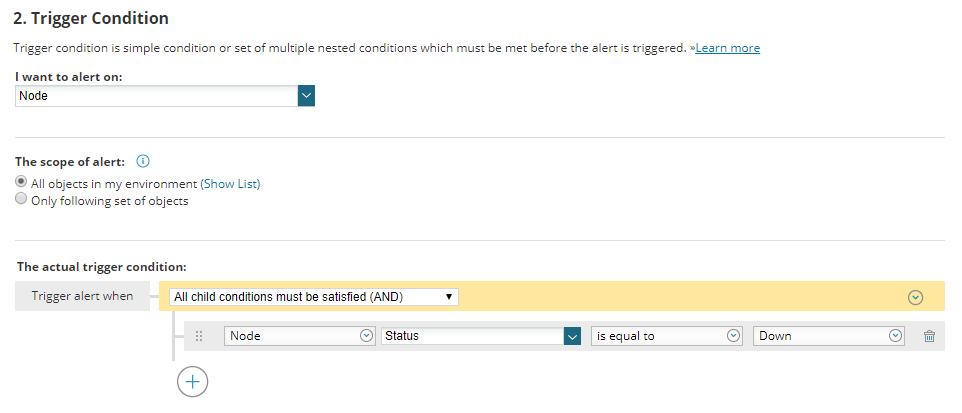

*not filtering against vendor or team or anything else, basically any time a node goes down this one alert covers it, you might come up with a little more filtering to exclude from alerting on test or dev or whatever but the goal is to avoid making things overly granular. If it needs to be alerted at all the one rule should cover it for ALL cases.

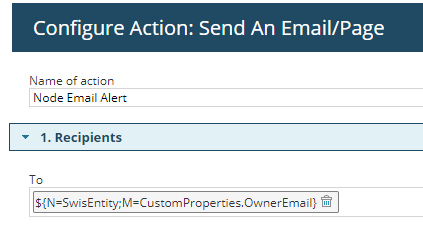

Trigger action

Just populate the OwnerEmail custom property for all the nodes based on whatever teams care to know when a given node has problems. If multiple teams need to know then you can just semi colon separate them and you can notify everyone you want . Alternatively, some companies will set up several custom properties like "systemowner" and "applicationowner" and cc the appowner on system down messages, and not even include the system owner on things like CPU alerts for those cases the system team doesn't care about that kind of thing. You can tweak this kind of structure for whatever your use case is.

In any case leveraging the properties like this you can have one single node down alert that covers all types of hardware and all teams. Absolutely no need to build a separate alert on the same objects for different teams.

You can then apply the same kind of technique to the application template alerts by adding an owneremail custom property to the sam application monitors as well. Just create a single "Component down" and if any component/service/script/log monitor is down then it just emails whoever the owner was. One rule covers all teams, all apps.

For volumes you just set it to be any volume that breaches it's space used threshold alerts the node owneremail.

So in this way you have just 3 alerts replacing what sounds like dozens of copies of what you have in place right now.

Getting a little further into the rabbit hole you can automate the process of filling in the owner custom property by having alert rules that have logic like

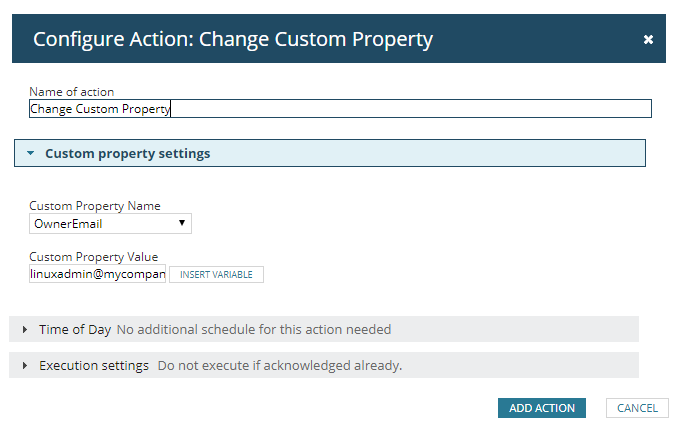

"if a node has a vendor of linux and the owneremail property is null have an alert action to set the owneremail custom property to be linuxadmins@mycompany.com"

All comments

tomiannelli

Creating a Template for these would allow you to create a single alert definition for it. I have not created one with mixed types of items like you are looking at. Given what I have seen on Thwack and built-ins I am sure it is possible.

thwackdude

tomainnelli, thank you for your response. So are you thinking something like building it as a component in a template and simply alerting on components rather than say volume? This is also an option but then I come up with the question how to create a component script that monitors for any fixed disk and a component that monitors for server response. Hmm.

mesverrum

Why would you want to raise the same alert for a disk space issue as you would for a node down issue? The troubleshooting process would be entirely different in each case and depending how your company slices things up it could be different teams handling the issue. If you already have triggered this alert because a disk was nearly full you wouldn't get an additional message that the server crashed, so in theory someone might not be investigating because they think low free space isn't urgent, but node down should be treated urgently.

I have a pretty standard set of alerts I build with most clients and we rarely need more that 35 or so actual alert definitions to cover all cases that matter across all modules and teams.

The most common issues I find is when people don't make full use of custom properties and make their alert logic too specific.

The most generic example would be doing something like having several flavors of node down alerts, a "network switch down" separate from "windows server down" and "linux server down" is usually not required. If the alert action is basically the same, but the only difference is who the message goes to then you can use an OwnerEmail custom property to create logic like "if any node goes down then send an email to the owner of that node."

People can also go pretty crazy on the SAM app monitor side as well with logic like "if such and such exchange component on this server goes down then email the exchange person" with 100 variations on what component and who to notify. I tend to consolidate it down to a single alert condition. If any application is down notify the address in the Application Owner custom property.

So if your alert scheme is becoming overwhelming you might see where you can condense them down from granular logic to more generic situations through the use of custom properties or the built in threshold fields.

How many alert rules do you have in place right now? How many messages does your orion send out most days? How big is the environment in terms of total nodes?

thwackdude

mesverrum, thank you for your response. I suppose I am just trying to untangle everything and get it all straight. We have just north of 900 servers and 45+ different groups that are notified separately as well as a tier 2 24/7 incident response center that currently get any volume on any server over 98%, server down, and select services for mission critical servers. I'm about an 8th of way through and have 216 alerts currently on. I have 3 sets of alerts configured for the working groups currently (windows as an example):

1. Trigger volume alert if any get over 95% and send an email.

2. Trigger node down alert if a server node goes down and send an email.

3. Trigger alert when a component goes critical (say window server service down) and send an email with the component variable that displays what happened.

Based on what you said, do I have the component one wrong and it will only key once? I was under the impression that it would key for any component that goes critical. Ha ha, I feel like I was heading the right direction but now I am questioning my very being.

mesverrum

I don't see why you need 216 alert definitions to cover the 3 cases, is the difference just that you create a different alert depending on who gets notified, but otherwise the alerts are the same?

mesverrum

Assuming that you have so many alerts because you need to control where the alerts are going you should probably read this KB and see if it can be implemented

https://support.solarwinds.com/SuccessCenter/s/article/Use-Custom-properties-when-sending-email-alerts

thwackdude

I apologize I should have clarified. An example would be SQL group gets one set of alerts, Linux gets another set, on and one, application by application or cluster by cluster depending on scope.
