Last status change for interface on node

jacob.decker

I am trying to add a resource view for the Node Details that will show me:

     The name of interface on the node

     The interface's alias

     The interface's current status

     The last time the status of the interface was changed

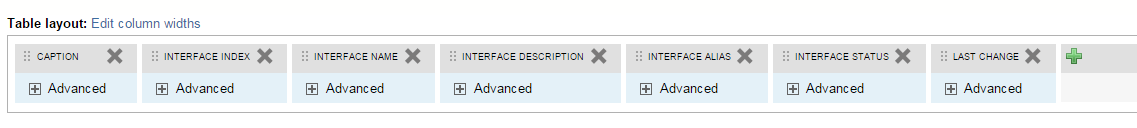

So far I have duplicated the "Last Status Change for Each Interface Report" and edited it to show the following:

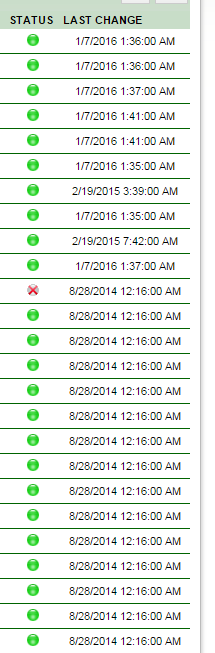

Unfortunately it lists every single interface on every single node, I want it to only show the node for which I am currently looking at, and the "Interface Status" doesn't show the current Up/Down status of the interface.

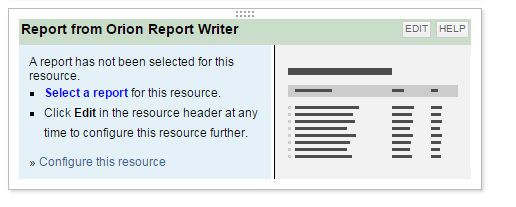

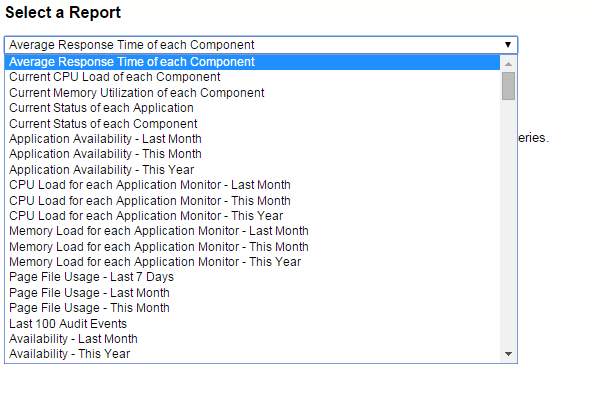

Also, when I try to add the custom report to the "Report from Orion Report Writer", it doesn't show up in the "Select a Report" drop down menu.

I cannot find a way to show the information that I have listed above in any of the Node Details tabs. Can anyone help?

AlexSoul

You have to create your report in Report Writer App, which you can find installed on the server itself.

Then, once you are happy with report and gives you all interfaces and columns as you like - to be able to filter down to a particular node - just use similar approach as described here

Then, add this report on the node page as per your above screenshots (with Report from Orion Writer Resource)
