NCM not showing Dell Firmware Vulnerabilities

Hello,

I have a few Dell S4048-ON switches that I backup in NCM. I just started getting into expanding capabilities and I do not see anything coming up in the "firmware vulnerabilities" and "overall policy report violations" charts. Is this possible for Dell S4048-ON's or are they only for Cisco devices?

Attached are print screens of the charts I am asking about.

Thanks,

Cole

attachments.zip

Find more posts tagged with

dell switches

ncm

dell s4048-on

Accepted answers

All comments

jpetkevich

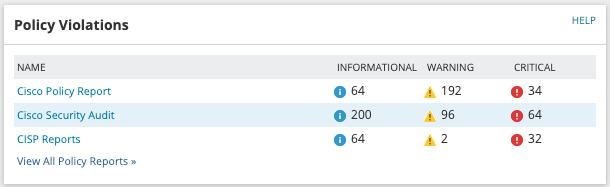

The overall policy reports widget will only populate if you have set up policy reports inside of NCM. Below is an example of how that widget will look once you setup policy reports. You can also visit this to see how to create the policy reports.
Screen Shot 2019-08-27 at 1.54.02 PM.png

Firmware Vulnerabilities will populate for Cisco and Juniper devices, at this time, but there is a feature request you can vote on here about expanding vendor support.

cnicholas

jpetkevich Thanks. I went ahead and voted. I will work on the policy reports as well. Good stuff!

When I get the reports up and running, can it generate a compiled report - sort of like a vulnerability assessment report?

jpetkevich

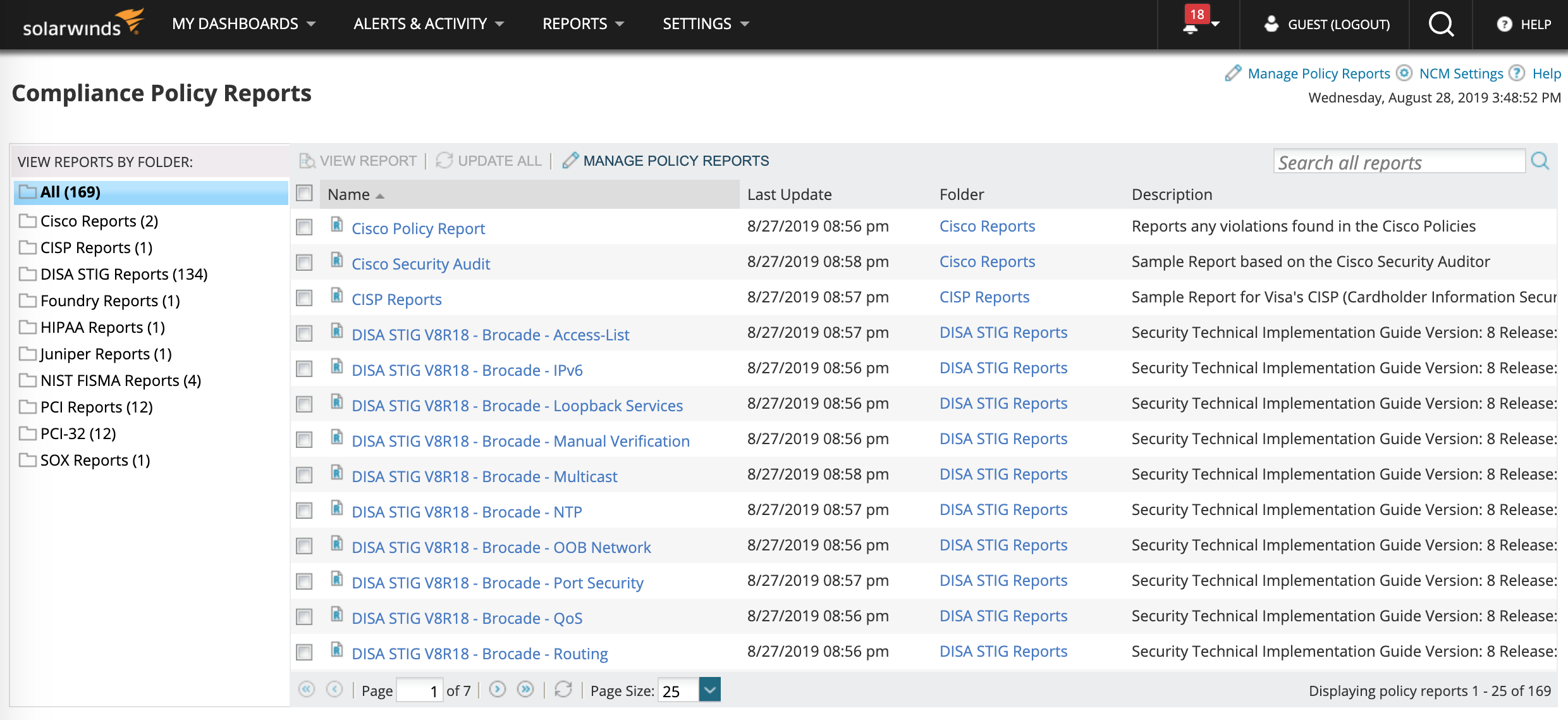

You will see all of the Policy Reports on the Compliance page:

Screen Shot 2019-08-28 at 10.49.07 AM.png

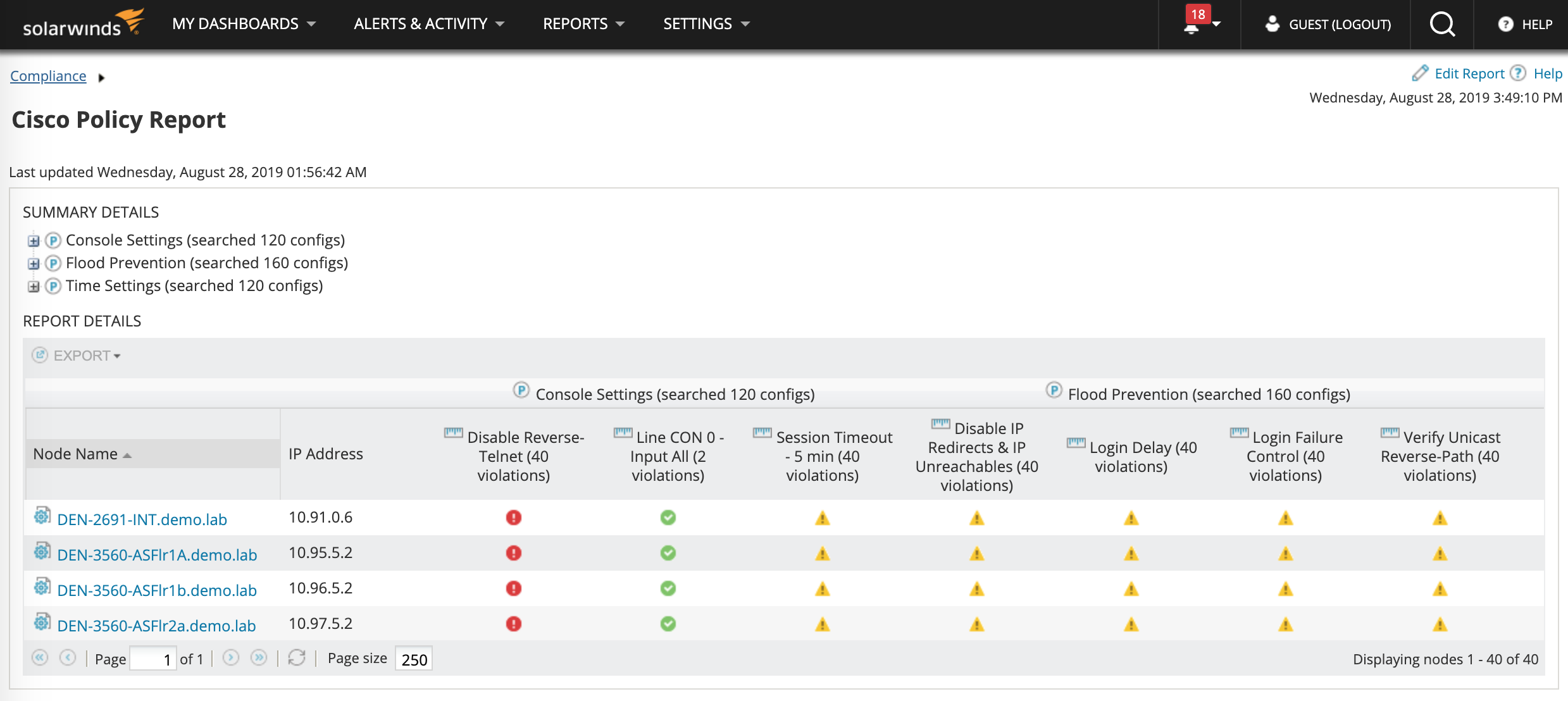

Once you have the report it will look like this once it is completed:

Screen Shot 2019-08-28 at 10.49.26 AM.png

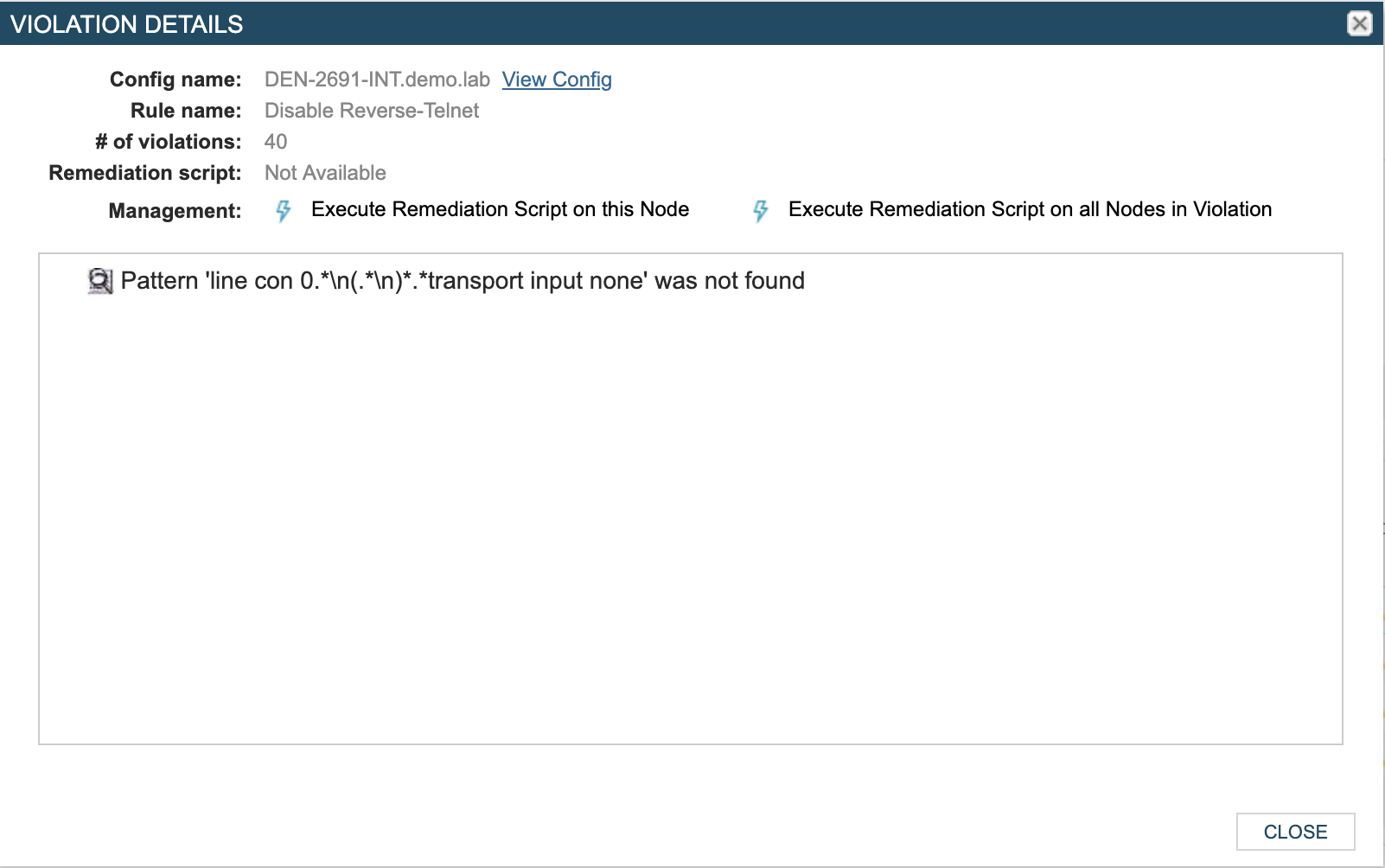

You can then drill into any of the statuses:

Screen Shot 2019-08-28 at 10.51.50 AM.png
