Recreate a Deleted report

pbrooks20017

So i have managed to delete a report we use to monitor disk volumes for your environment

I have spoken to tech support and they advise speaking to people on here for help.

So i have recreated the report but it don't look the same as it previously looked

I'm hoping someone on here can point me in the right direction on getting the report to look the same

So i have attached two of the reports

All Disk Volumes Inventory Report Original.pdf (this is the original one i I've want back or make my one look like this)

All Disk Volumes Inventory Report.pdf (this is my on ei have created and as you can see it looks a Mess)

Any guidance would be gratefully appreciated

attachments.zip

dgsmith80

Hi pbrooks20017 so you got pretty close, it's mainly cosmetics to be fair, here are a few steps to get it looking closer:

1) Firstly in your Table Resources (Edit Table from within the Report Editor) You need to Add the Node/Caption field, and replace Volumem/Volume Name with Volume/Volume Description.

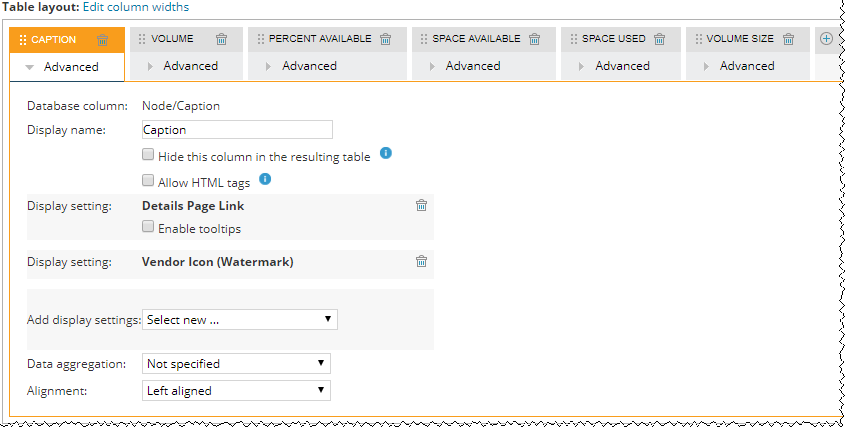

2) Expand the Caption resource and select "Vendor Icon (Watermark) and "Detail Page Link" from the Add Display settings.

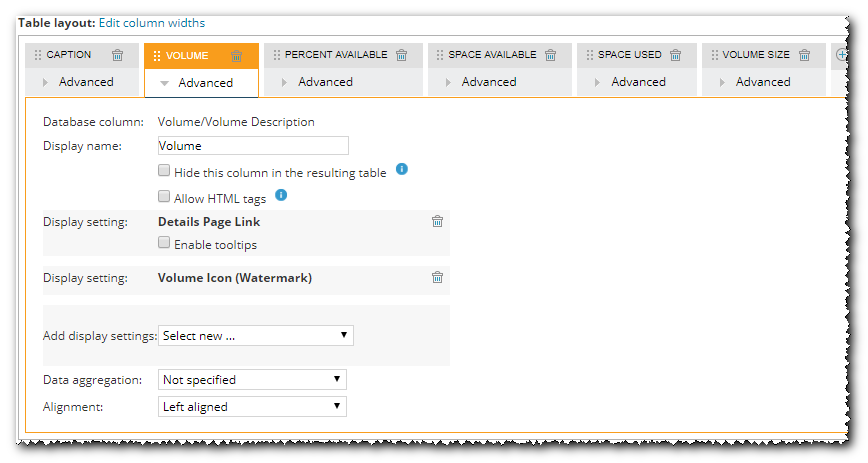

3) Expand the Volume resource and select "Volume Icon (Watermark)" and "Details Page Link" from the add Display settings.

4) In the Sort Results By - Choose Caption - Node

5) Change Group results by to - Caption - Node

Then it should look more like what you had originally. If you get stuck here is an XML of one exported from my lab.

All+Disk+Volumes+Inventory+Report.xml
