I created a custom alert that does this work without the need for the complex SQL (only slightly less complex SWQL).
Hi guys,

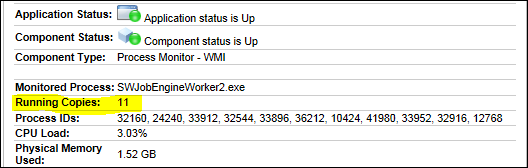

This is a workaround which will address inability to natively set a threshold for the Process Monitor Component to effectively Alert on Running Copies. Well, you "kind of" can do it now already, as described here Re: Running Copies - Trigger alert when number of running copies is greater than 1 but this will not work for different components with different threshold requirements. You will most likely end up with multiple alerts for every case... with mess other words
Some ideas were logged here - give a thumb up:
https://thwack.solarwinds.com/ideas/4359
https://thwack.solarwinds.com/ideas/1471
SO, HERE IS WORKAROUND:
LET'S SETUP ALERT FIRST
(1)
Create New Advance Alert > Trigger Condition > Property to Monitor: Custom SQL Alert > Trigger Query: APM: Component
(2)
Trigger condition - (remember to change database name):
LEFT JOIN (SELECT APM_ComponentStatus_Detail.ComponentID, MAX(APM_ComponentStatus_Detail.[TimeStamp]) as LastCheck
FROM SolarWinds.dbo.APM_ComponentStatus_Detail
GROUP BY APM_ComponentStatus_Detail.ComponentID) c1 on APM_AlertsAndReportsData.ComponentID = c1.ComponentID
INNER JOIN Solarwinds.dbo.APM_ComponentStatus_Detail csd ON csd.ComponentID = APM_AlertsAndReportsData.ComponentID
INNER JOIN Solarwinds.dbo.APM_ProcessEvidence_Detail ped ON ped.ComponentStatusID = csd.ID
INNER JOIN Solarwinds.dbo.APM_ComponentSetting cs ON (cs.ComponentID = APM_AlertsAndReportsData.ComponentID AND cs.[Key] = '__UserNotes')
WHERE
cs.Value LIKE 'RunningCopiesThreshold:%' AND --value mast contain 3 numbers, with leading/trailing zeros if needed (ex. RunningCopiesThreshold:010)
c1.LastCheck = csd.[TimeStamp]
GROUP BY APM_AlertsAndReportsData.ComponentID,APM_AlertsAndReportsData.ComponentName
HAVING
COUNT(*) > CAST(SUBSTRING(MAX(cs.Value),24,3) AS INT)
(3)
Trigger reset (remember to change database name):
WHERE APM_AlertsAndReportsData.ComponentID NOT IN
(
SELECT DISTINCT APM_AlertsAndReportsData.ComponentID
FROM SolarWinds.dbo.APM_AlertsAndReportsData
---------------------------------------------
LEFT JOIN (SELECT APM_ComponentStatus_Detail.ComponentID, MAX(APM_ComponentStatus_Detail.[TimeStamp]) as LastCheck
FROM SolarWinds.dbo.APM_ComponentStatus_Detail
GROUP BY APM_ComponentStatus_Detail.ComponentID) c1 on APM_AlertsAndReportsData.ComponentID = c1.ComponentID
INNER JOIN Solarwinds.dbo.APM_ComponentStatus_Detail csd ON csd.ComponentID = APM_AlertsAndReportsData.ComponentID
INNER JOIN Solarwinds.dbo.APM_ProcessEvidence_Detail ped ON ped.ComponentStatusID = csd.ID
INNER JOIN Solarwinds.dbo.APM_ComponentSetting cs ON (cs.ComponentID = APM_AlertsAndReportsData.ComponentID AND cs.[Key] = '__UserNotes')
WHERE
cs.Value LIKE 'RunningCopiesThreshold:%' AND --value mast contain 3 numbers, with leading/trailing zeros if needed (ex. RunningCopiesThreshold:010)
c1.LastCheck = csd.[TimeStamp]
GROUP BY APM_AlertsAndReportsData.ComponentID,APM_AlertsAndReportsData.ComponentName
HAVING
COUNT(*) > CAST(SUBSTRING(MAX(cs.Value),24,3) AS INT)
)
SETTING UP THRESHOLDS
From now on, all you need to do is the following:

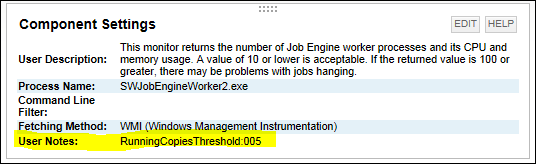

In order to set a threshold you can do this per component. Simply add the following string to the beginning of the User Notes
Have fun!
Alex
