Automating Orion Server Installs - After the O/S

KMSigma.SWI

On a previous post I showed off a little PowerShell script that I've written to build my SolarWinds Orion Servers.  That post left us with a freshly imaged Windows Server.  Like I said before, you can install the O/S however you like.  I used Windows Deployment Services because I'm comfortable with it.

I used Windows Server 2016 because this is my lab and...

Now I've got a list of things that I want to do to this machine.

1. Bring the Disks Online & Initialize
2. Format Disks & Disable Indexing
3. Configure the Page File
4. Import the Certificate for SSL (Optional)

Because I'm me, I do this with PowerShell.  I'm going to go through each of stage one by one.

Stage 0: Declare Variables

I don't list this because this is something that I have in every script.  Before I even get into this, I need to define my variables.  For this it's disk names and drive letters.

#region Build Disk List$DiskInfo  = @()$DiskInfo += New-Object -TypeName PSObject -Property ( [ordered]@{ DiskNumber = [int]1; DriveLetter = "D"; Label = "Page File" } )$DiskInfo += New-Object -TypeName PSObject -Property ( [ordered]@{ DiskNumber = [int]2; DriveLetter = "E"; Label = "Programs" } )$DiskInfo += New-Object -TypeName PSObject -Property ( [ordered]@{ DiskNumber = [int]3; DriveLetter = "F"; Label = "Web" } )$DiskInfo += New-Object -TypeName PSObject -Property ( [ordered]@{ DiskNumber = [int]4; DriveLetter = "G"; Label = "Logs" } )#endregion

This looks simple, because it is.  It's simply a list of the disk numbers, the drive letter, and the labels that I want to use for the additional drives.

Stage 1: Bring the Disks Online & Initialize

Since I need to bring all offline disks online and choose a partition type (GPT), I can do this all at once.

#region Online & Enable RAW disksGet-Disk | Where-Object { $_.OperationalStatus -eq "Offline" } | Set-Disk -IsOffline:$falseGet-Disk | Where-Object { $_.PartitionStyle -eq "RAW" } | ForEach-Object { Initialize-Disk -Number $_.Number -PartitionStyle GPT }#endregion

Stage 2: Format Disks & Disable Indexing

This is where I really use the variables that are declared in Stage 0.  I do this with a ForEach Loop.

#region Create Partitions & Format$FullFormat = $false # indicates a "quick" formatForEach ( $Disk in $DiskInfo ){    # Create Partition and then Format it    New-Partition -DiskNumber $Disk.DiskNumber -UseMaximumSize -DriveLetter $Disk.DriveLetter | Out-Null    Format-Volume -DriveLetter $Disk.DriveLetter -FileSystem NTFS -AllocationUnitSize 64KB -Force -Confirm:$false -Full:$FullFormat -NewFileSystemLabel $Disk.Label        # Disable Indexing via WMI    $WmiVolume = Get-WmiObject -Query "SELECT * FROM Win32_Volume WHERE DriveLetter = '$( $Disk.DriveLetter ):'"    $WmiVolume.IndexingEnabled = $false    $WmiVolume.Put()}#endregion

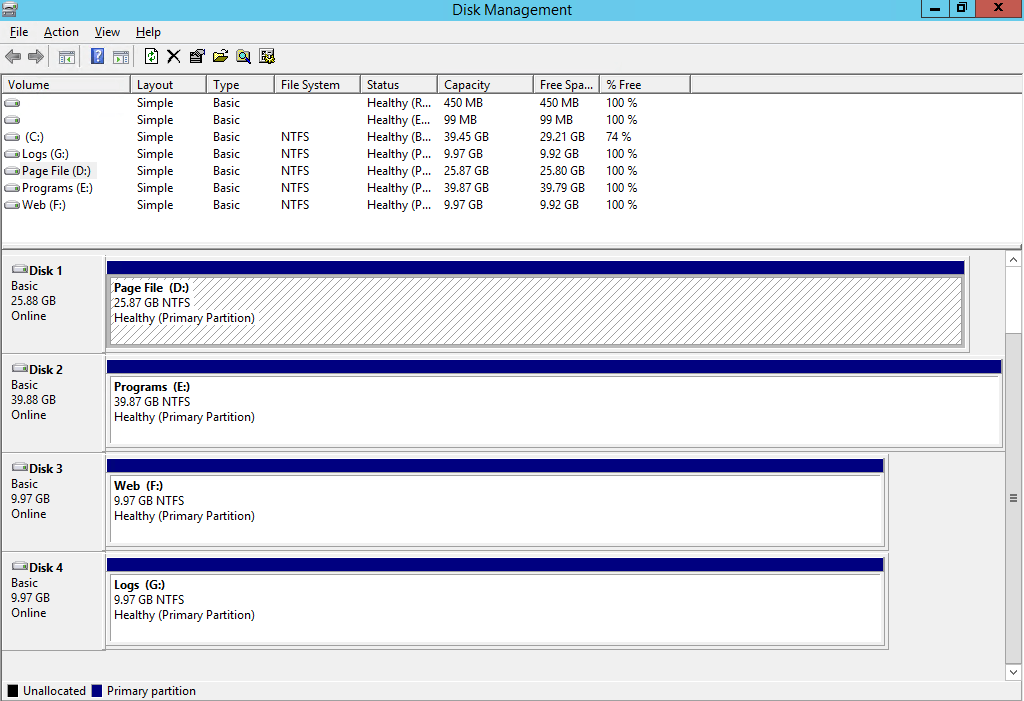

We're getting closer!  Now we've got this:

Stage 3: Configure the Page File

Getting the "best practices" for page files are crazy and all over the board.  Are you using flash storage?  Do you keep it on the O/S disk?  Do you declare a fixed size?  I decided to fall back on settings that I've used for years.

Page file does not live on the O/S disk.

Page file is statically set

Page file is RAM size + 257MB

In script form, this looks something like this:

#region Set Page Files
$CompSys = Get-WmiObject -Class Win32_ComputerSystem -EnableAllPrivileges
# is the system set to use system managed page files
if ( $CompSys.AutomaticManagedPagefile )
{
    # if so, turn it off
    $CompSys.AutomaticManagedPagefile = $false
    $CompSys.Put()
}
# Set the size to 16GB + 257MB (per Microsoft Recommendations) and move it to the \ Drive
# as a safety-net I also keep 8GB on the C:\ Drive.
$PageFileSettings = @()
$PageFileSettings += "c:\pagefile.sys 8192 8192"
$PageFileSettings += "d:\pagefile.sys 16641 16641"Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management\" -Name "pagingfiles" -Type multistring -Value $PageFileSettings
#endregion

Stage 4: Import the Certificate for SSL (Optional)

Since this is my lab, I get to do what I want.  (See above)  I include using SSL for Orion.  I have a wildcard certificate that I can use within my lab, so if I import it, then I can enable SSL when the configuration wizard runs.  This certificate is saved on a DFS share in my lab.  This is the script to import it.

#region Import Certificate# Lastly, import my internal PKI Certificate for use with HTTPS$CertName = "WildcardCert_demo.lab"$CertPath = "\\Demo.Lab\Files\Data\Certificates\"$PfxFile = Get-ChildItem -Path $CertPath -Filter "$CertName.pfx"$PfxPass = ConvertTo-SecureString -String ( Get-ChildItem -Path $CertPath -Filter "$CertName.password.txt" | Get-Content -Raw ) -AsPlainText -ForceImport-PfxCertificate -FilePath $PfxFile.FullName -Password $PfxPass#endregion

That's it.  Now the disks are setup, the page file is set, and the certificate is installed.  Next, I rename the computer, reboot, run Windows Updates, reboot, run Windows Updates, reboot, run Windows Updates... (you see where this is going, right?)

Execution Time: 16 seconds

Time saved: at least 15 minutes.

There's still some prep work I can do via scripting and I'll provide that next.

This is a cross-post from my personal blog post Building my Orion Server [Scripting Edition] – Step 2 – Kevin's Ramblings

dcornell

Cool, what we need next is a way to automate the SWON installation.

I have my test environment that builds VM's for any quantity of Arista devices using a hyper-v VM that I convert from a VMware image. The script builds all the networks for point-to-points and the mgmt. ports, VM's for Orion and a Linux host.

The downside is Orion is a manual install. What is the chance the SWON install can consume a config file with all the installation data needed?
