Routing Neighbor Alerting

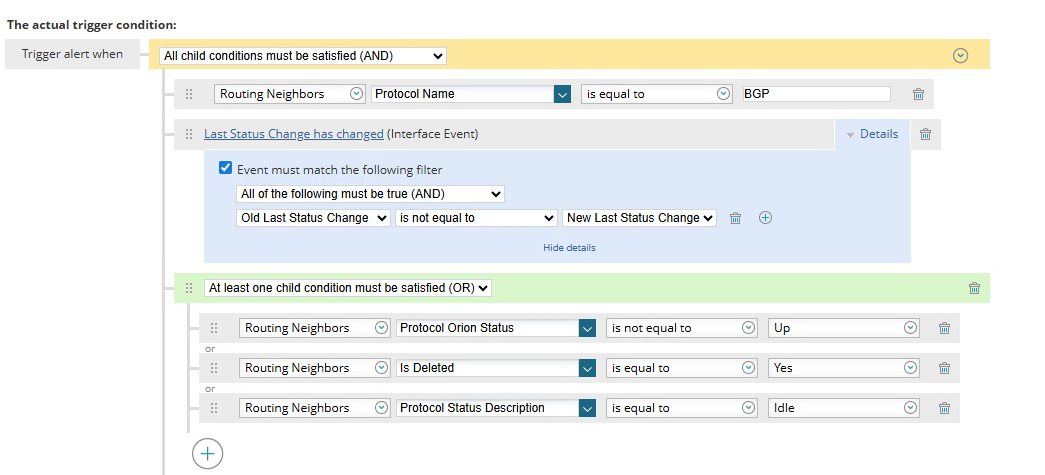

I am trying to configure alerts for Routing Neighbors (OSPF and BGP). I have used the logic below to build out the alerts. I am seeing the interfaces going down with the out-of-the-box alerts but I seem to be missing the trigger for the routing neighbors. This is currently alerting on Routing Neighbors. Any help would be greatly appreciated.

Find more posts tagged with

bgp monitoring

bgp

bgp alerting

bgp neighbors

bgp_status

bgp snmp traps...rules

Accepted answers

naveensingh43

I am not sure, but you can try below query to create you Neighbors' alerts

SELECT Neighbors.Uri, Neighbors.DisplayName FROM Orion.Routing.Neighbors AS Neighbors<br/>LEFT JOIN Orion.NodeIPAddresses I ON Neighbors.NeighborIP = I.IPAddress

WHERE ISNULL(Neighbors.Router.Nodes.CustomProperties.Assignment_Group,'')<>'' AND
      Neighbors.IP_Version=4 AND
      Neighbors.ProtocolOrionStatus=2 AND
      ISNULL(I.Node.Status,0)<>2 AND(
        (Neighbors.ProtocolName='BGP' AND Neighbors.ProtocolStatusDescription<>'Idle') OR
        (Neighbors.ProtocolName='OSPF'))<br/>

All comments

naveensingh43

I am not sure, but you can try below query to create you Neighbors' alerts

SELECT Neighbors.Uri, Neighbors.DisplayName FROM Orion.Routing.Neighbors AS Neighbors<br/>LEFT JOIN Orion.NodeIPAddresses I ON Neighbors.NeighborIP = I.IPAddress
