Display multiple UnDP values in a table

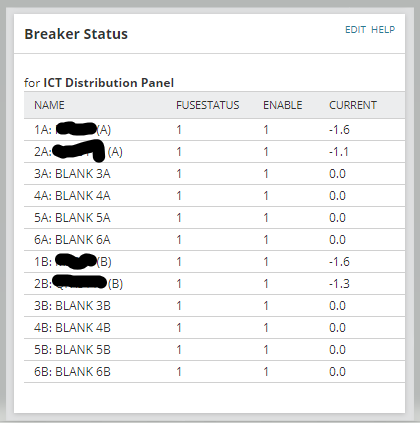

The following SWQL was used to consolidate 48 individual UnDP values into a single table via a Custom Table widget.

UnDPs were named DCBouputNameA1-B6, DCBouputFuseStatusA1-B6, DCBouputEnableA1-B6, and DCBoutputCurrentA1-B6.

select a.CurrentValue as [Name], fuse.CurrentValue as [FuseStatus], enable.CurrentValue as [Enable], current.CurrentValue as [Current]

from orion.npm.CustomPollerAssignment a

join orion.npm.CustomPollers b on a.CustomPollerID=b.CustomPollerID

join orion.Nodes n on a.NodeID=n.NodeID

join (select a.CurrentValue, substring(b.UniqueName,17,2) as breaker

from orion.npm.CustomPollerAssignment a

join orion.npm.CustomPollers b on a.CustomPollerID=b.CustomPollerID

join orion.Nodes n on a.NodeID=n.NodeID

where n.DisplayName like '%DCB%'

and b.UniqueName like 'DCBoutputCurrent%') as current on substring(b.UniqueName,14,2)= current.breaker

join (select a.CurrentValue, substring(b.UniqueName,20,2) as breaker

from orion.npm.CustomPollerAssignment a

join orion.npm.CustomPollers b on a.CustomPollerID=b.CustomPollerID

join orion.Nodes n on a.NodeID=n.NodeID

where n.DisplayName like '%DCB%'

and b.UniqueName like 'DCBoutputFuseStatus%') as fuse on substring(b.UniqueName,14,2)= fuse.breaker

join (select a.CurrentValue, substring(b.UniqueName,16,2) as breaker

from orion.npm.CustomPollerAssignment a

join orion.npm.CustomPollers b on a.CustomPollerID=b.CustomPollerID

join orion.Nodes n on a.NodeID=n.NodeID

where n.DisplayName like '%DCB%'

and b.UniqueName like 'DCBoutputEnable%') as enable on substring(b.UniqueName,14,2)= enable.breaker

where n.DisplayName like '%DCB%'

and b.UniqueName like 'DCBoutputName%'

ORDER BY b.UniqueName
