Did any get Cattools 3.11 working with SonicWALL backups?

I have handful of SonicWALLs in field I need to do scheduled backup. However from what I can tell, the Cattools 3.11 still can not backup SonicWALL properly. Versions of the running SonicOS are 5.9 and newer.

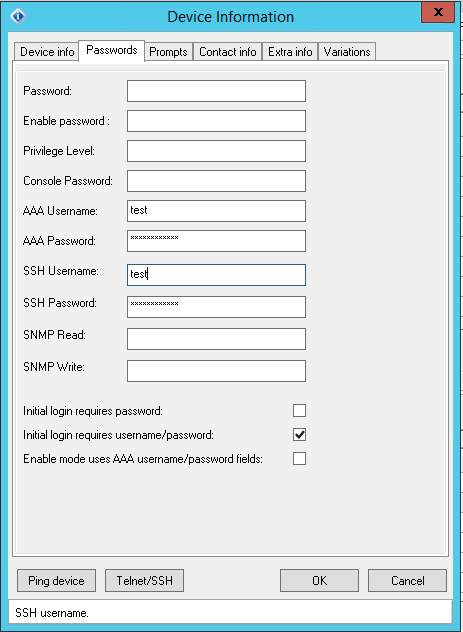

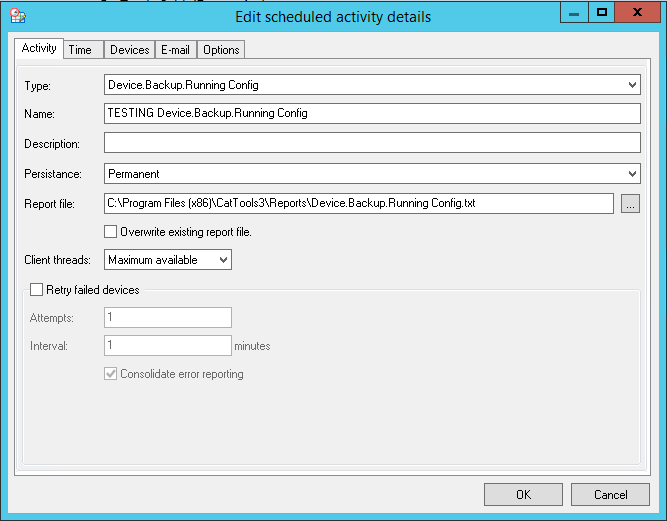

Maybe it was my configuration issue...Here below are some screenshots.

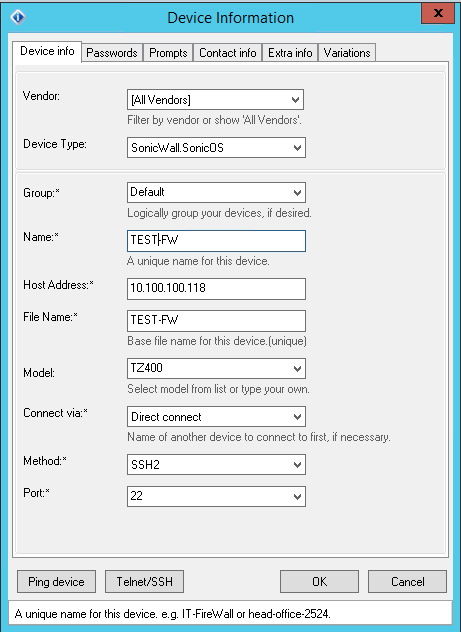

Screen Shot 2016-06-13 at 9.21.19 AM.png

Other tabs are defaults and I did not use Variants if that matters.

Thanks,

Find more posts tagged with

Accepted answers

bkyle

Try setting up your device like this(with the disable paging option):

All comments

bkyle

Can you clean up a debug log, and post it here? Use the CatTools File menu to select the "Enable capture mode" option. Run the Sonicwall activity that you are having trouble with. This should create a debug file in the \CatTools3\Debug folder.

chinese_ys

Here you have it (I believe I gave these to support as well)...

<PROTOCOL=SSH2>

<W-12:34:10 PM>[13]

<R-12:34:10 PM>[13][13][10]test@test-gw01>

<W-12:34:10 PM>show all

<R-12:34:10 PM>show all

<W-12:34:10 PM>[13]

<R-12:34:10 PM>[13][13][10][07]% Error encountered at '^' marker:[13][10] show all[13][10] ^[13][10]% Error: No matching command found.[13][10]test@test-gw01>

<W-12:34:10 PM>[13]

<R-12:34:10 PM>[13][13][10]test@test-gw01>

<W-12:34:10 PM>exit[13]

<HOSTNAME="test@test-gw01">

bkyle

We are sending a "show all" command. Is this the correct command to display the configuration?

chinese_ys

I am not sure. I never use CLI on SonicWALL...

bkyle

Try connection to the Sonicwall with putty. Run the "show all" command, and see if you get an error. If so, try show ?, and let me know what you get back.

chinese_ys

The closet one I can see is "show current-config" but there is no "show all" command. Even I use variant to do "show current-config" still not working...

test@TEST-FW> show all

% Error encountered at '^' marker:

show all

% Error: No matching command found.

test@TEST-FW> show

System Commands:

cli Show CLI status or configuration.

current-config Show current configuration.

Top Level Commands:

access-rule Show an access rule.

access-rules Show all access rules.

action-object Show action object configuration.

action-objects Show all action objects.

address-group Show an address group.

address-groups Show all address groups.

address-object Show an address object.

address-objects Show all address objects.

administration Show Administration Configuration and Information.

anti-spam Show anti-spam configuration and status.

app-control Show App Control configuration.

arp Show ARP status or configuration.

bandwidth-management Show bandwidth management settings.

bandwidth-object Show a bandwidth object.

bandwidth-objects Show all bandwidth objects.

checksum Validate configuration checksum.

client-av-enforcement Show client anti-virus enforcement configuration.

dhcp-server DHCP server.

dns Show DNS configuration.

dpi-ssl Show DPI-SSL configuration.

dynamic-dns Show dynamic DNS status or configuration.

email-object Show an e-mail address object.

email-objects Show all e-mail address objects.

failover-lb Show failover and load balancing information.

fips Show FIPS configuration.

firewall Show firewall settings.

firmware Show Firmware configuration.

gateway-antivirus Show Gateway Anti-Virus configuration.

high-availability Show high availability configuration.

icmp Show ICMP configuration.

interface Show interface configuration.

interfaces Show all interfaces.

intrusion-prevention Show Intrusion Prevention configuration.

ip-helper Show IP helper configuration.

license Show license.

log Show device log and configuration.

mac-ip-anti-spoof Show MAC-IP anti-spoof configuration and

information.

match-object Show a match object.

match-objects Show all match objects.

multicast Show multicast configuration.

nat-policies Show NAT policies.

nat-policy Show NAT policy.

ndp Show NDP status or configuration.

ndpp Show NDPP configuration.

network-monitor Show network monitor status or configuration.

packet-monitor Show packet monitor configuration.

qos-mapping Show QoS mapping.

rbl Show Real-Time Blacklist configuration.

routing Show routing status or configuration.

schedule Show a Schedule Object.

schedules Show all Schedule Objects.

security-services Show security services configuration.

service-group Show service group.

service-groups Show all service groups.

service-object Show service object.

service-objects Show service objects.

snmp Show SNMP Configuration and Information.

ssh Show SSH configuration.

ssl-control Show SSL control configuration.

ssl-vpn Show SSL VPN status or configuration.

status Show basic system status and information.

tcp Show TCP configuration.

tech-support-report Display complete technical support report or

sections.

time Show Time information.

tunnel-interface Show tunnel interface configuration.

tunnel-interfaces Show all tunnel interface configuration.

udp Show UDP configuration.

user Show user-related status or configuration.

version Show system version information.

virtual-assist Show virtual assist configuration.

voip Show VoIP configuration.

vpn Show VPN status or configuration.

web-proxy Show web proxy configuration.

zone Show a Zone Object.

zones Show all Zone Objects.

bkyle

Please try the following:

1. Edit your Sonic wall device

2. Go to the Variations tab, and click Use Variations

3. Go to the Additional Commands tab, and check the Show Running Config box

4. In the box type show current-config

See below:

chinese_ys

Did exactly that but no luck. It complains about no response received for the command.

i also add paging option. The same result.

bkyle

Please post a new debug file result.

chinese_ys

Here is the debug. First one does include "--MORE--" as the paging option in Variations and second one does not. Made no difference.

<PROTOCOL=SSH2>

<W-1:07:46 PM>[13]

<R-1:07:46 PM>[13][13][10]test@test-gw01>

<W-1:07:46 PM>show current-config

<R-1:07:46 PM>show current-config

<W-1:07:46 PM>[13]

<R-1:07:46 PM>[13][13][10]

<R-1:07:46 PM>firmware-version "SonicOS Enhanced 6.2.4.2-20n"[13][10]rom-version 5.6.0.11[13][10]safemode-version 6.2.3.5[13][10]model "TZ 400"[13][10]serial-number 18B1-xxxx-CC34[13][10]system-time "2016/06/14 12:07:03.768"[13][10]system-uptime "42 Days, 19 Hours, 20 Minutes, 54 Seconds"[13][10]last-modified-by "test 172.24.90.120:X1 UI 2016/05/12 14:28:13"[13][10][13][10]administration[13][10] firewall-name test-gw01[13][10] firewall-domain-name test.local[13][10] admin-name admin[13][10] no password aging[13][10] no password uniqueness[13][10] password minimum-length 1[13][10] no password complexity[13][10] password constraints-apply-to builtin-admin[13][10] password constraints-apply-to full-admins[13][10] password constraints-apply-to limited-admins[13][10] password constraints-apply-to local-users[13][10] password constraints-apply-to guest-admins[13][10] idle-logout-time 15[13][10]--MORE--

================================================================================

WFMDRetVal=1 Waiting for: "--MORE--"

WFMDRetVal=2 Waiting for: "%% Syntax error (no matching command):"

WFMDRetVal=3 Waiting for: "%% Syntax error (incomplete command):"

WFMDRetVal=4 Waiting for: "(y/n)"

WFMDRetVal=5 Waiting for: "Unknown command:"

WFMDRetVal=6 Waiting for: "%% Syntax error (ambiguous command):"

WFMDRetVal=7 Waiting for: "%% incomplete command!"

WFMDRetVal=18 Waiting for: "test@test-gw01>"

WFMDRetVal=19 Waiting for: "test@test-gw01>"

WFMDRetVal=20 Waiting for: "test@test-gw01])>"

WFMDBuffer=""

================================================================================

<W-1:10:16 PM>[13]

<R-1:10:17 PM> no user-lockout[13][10]--MORE--

================================================================================

WFMDRetVal=1 Waiting for: "test@test-gw01>"

WFMDRetVal=2 Waiting for: "test@test-gw01>"

WFMDRetVal=3 Waiting for: "test@test-gw01])>"

WFMDRetVal=4 Waiting for: "(config)"

WFMDBuffer=" no user-lockout[13][10]--more--"

================================================================================

<W-1:10:47 PM>exit[13]

<HOSTNAME="test@test-gw01">

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

<PROTOCOL=SSH2>

<W-1:15:18 PM>[13]

<R-1:15:18 PM>[13][13][10]test@test-gw01>

<W-1:15:18 PM>show current-config

<R-1:15:18 PM>show current-config

<W-1:15:18 PM>[13]

<R-1:15:18 PM>[13][13][10]firmware-version "SonicOS Enhanced 6.2.4.2-20n"[13][10]rom-version 5.6.0.11[13][10]safemode-version 6.2.3.5[13][10]model "TZ 400"[13][10]serial-number 18B1-xxxx-CC34[13][10]system-time "2016/06/14 12:14:35.800"[13][10]system-uptime "42 Days, 19 Hours, 28 Minutes, 26 Seconds"[13][10]last-modified-by "test 172.24.90.120:X1 UI 2016/05/12 14:28:13"[13][10]

<R-1:15:18 PM>[13][10]administration[13][10] firewall-name ncs-gw01[13][10] firewall-domain-name test.local[13][10] admin-name admin[13][10] no password aging[13][10] no password uniqueness[13][10] password minimum-length 1[13][10] no password complexity[13][10] password constraints-apply-to builtin-admin[13][10] password constraints-apply-to full-admins[13][10] password constraints-apply-to limited-admins[13][10] password constraints-apply-to local-users[13][10] password constraints-apply-to guest-admins[13][10] idle-logout-time 15[13][10]--MORE--

================================================================================

WFMDRetVal=1 Waiting for: "q-quit n-next p-prev h-head t-tail /-search?"

WFMDRetVal=2 Waiting for: "%% Syntax error (no matching command):"

WFMDRetVal=3 Waiting for: "%% Syntax error (incomplete command):"

WFMDRetVal=4 Waiting for: "(y/n)"

WFMDRetVal=5 Waiting for: "Unknown command:"

WFMDRetVal=6 Waiting for: "%% Syntax error (ambiguous command):"

WFMDRetVal=7 Waiting for: "%% incomplete command!"

WFMDRetVal=18 Waiting for: "test@test-gw01>"

WFMDRetVal=19 Waiting for: "test@test-gw01>"

WFMDRetVal=20 Waiting for: "test@test-gw01])>"

WFMDBuffer="[13][13][10]firmware-version "sonicos enhanced 6.2.4.2-20n"[13][10]rom-version 5.6.0.11[13][10]safemode-version 6.2.3.5[13][10]model "tz 400"[13][10]serial-number 18b1-xxxx-cc34[13][10]system-time "2016/06/14 12:14:35.800"[13][10]system-uptime "42 days, 19 hours, 28 minutes, 26 seconds"[13][10]last-modified-by "test 172.24.90.120:x1 ui 2016/05/12 14:28:13"[13][10][13][10]administration[13][10] firewall-name ncs-gw01[13][10] firewall-domain-name test.local[13][10] admin-name admin[13][10] no password aging[13][10] no password uniqueness[13][10] password minimum-length 1[13][10] no password complexity[13][10] password constraints-apply-to builtin-admin[13][10] password constraints-apply-to full-admins[13][10] password constraints-apply-to limited-admins[13][10] password constraints-apply-to local-users[13][10] password constraints-apply-to guest-admins[13][10] idle-logout-time 15[13][10]--more--"

================================================================================

<W-1:17:49 PM>[13]

<R-1:17:49 PM> no user-lockout[13][10]--MORE--

================================================================================

WFMDRetVal=1 Waiting for: "test@test-gw01>"

WFMDRetVal=2 Waiting for: "test@test-gw01>"

WFMDRetVal=3 Waiting for: "test@test-gw01])>"

WFMDRetVal=4 Waiting for: "(config)"

WFMDBuffer=" no user-lockout[13][10]--more--"

================================================================================

<W-1:18:19 PM>exit[13]

<HOSTNAME="test@test-gw01">

bkyle

Try setting up your device like this(with the disable paging option):

chinese_ys

Thanks. That works however with some 5.9.x SonicWALL, I also have to configure password like below. For newer version, only SSH username/password will be enough.

Screen Shot 2016-06-14 at 3.45.38 PM.png

AndrewHM

The work back up works with the settings but it's a .txt file instead of .exp. Any idea?
