ConnectNow not connecting network links

Question

We've got some connections that just had some changes made to them, that no longer show a connection between themselves and our Core.

My network supervisor suggested I reach out and ask a question as we attempt to troubleshoot this in-house.

Is the native VLAN required as allowed on the trunk interface for layer 2 or layer 3 connection mapping, when you're using ConnectNow in Network Atlas?

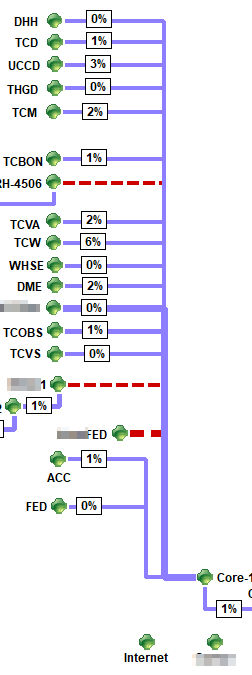

Here's a picture of the 3 disconnects that we're seeing.

Any help is greatly appreciated, thanks all!

Edit: The "Core" node that these nodes should linking back to is listed as a N9K-C9508.

The three endpoints that aren't connecting back to the Core are as follows... Cisco Catalyst 4506-E, Cisco Catalyst 9300 Series Switch, and WS-C3560V2-4​8PS.

superfly · Answer

In the above reply you mentioned you have added in the new interface to be monitored at both ends. Can you confirm that you've selected the correct interface? As for a copy of CPD neighbour so you can confirm the correct interfaces.

You will need to delete the old link out of Atlas and select the 2 nodes in question. Now click on ConnectNow.

If it still doesn't work, then just create the link manually in atlas.

MulattoTech · Answer

I asked our network engineer and he confirmed that everything can see everything in CDP neighbor.

Regarding the changes that were made to the links I asked my network engineer and his words verbatim were, the uplink side moved to a different port on the same switch.

superfly · Answer

The native vlan is not required for connect now to work. You say changes were made to the links, what changes were made? I assume you can see the core from these 3 switches as a CDP neighbour?
