Viewing all CPUs for a network device

nmazur

I am in the process of creating a report that shows the current CPU load on all Network devices. Currently, all of the devices are displaying an average of multiple CPUs. Is there a way to display the current load of all CPUs of a device. We can see both CPUs when running a perfstack, but looking to see both CPUs on a report. Any advice is greatly appreciated!

stuartd

To clarify ... are you looking to:

1. Show a combined output of both CPU's averaged out ..? or
2. Show both CPU's on a single report

And next, did you just want the data shown in % or as a graph?

For example we have a client based report on their F5 CPU Load on a n hourly basis - the logic is this:

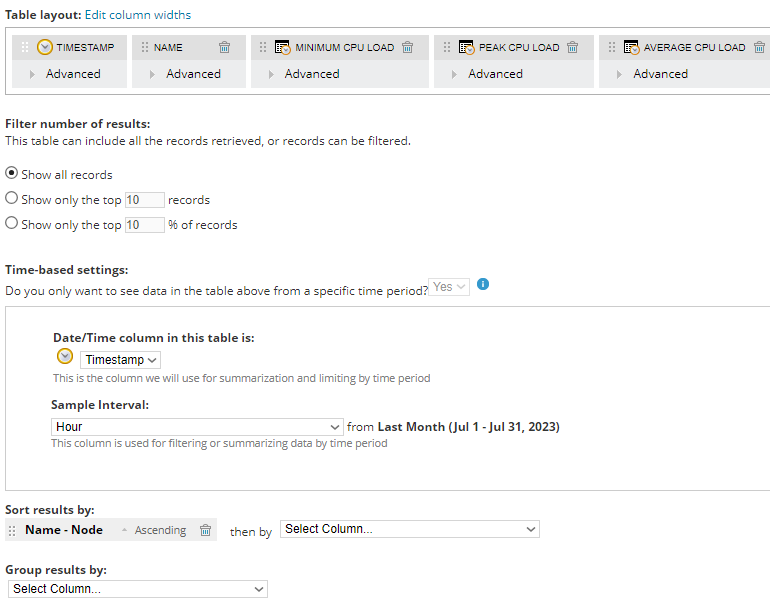

In the Edit Resource section we then have it set like this:

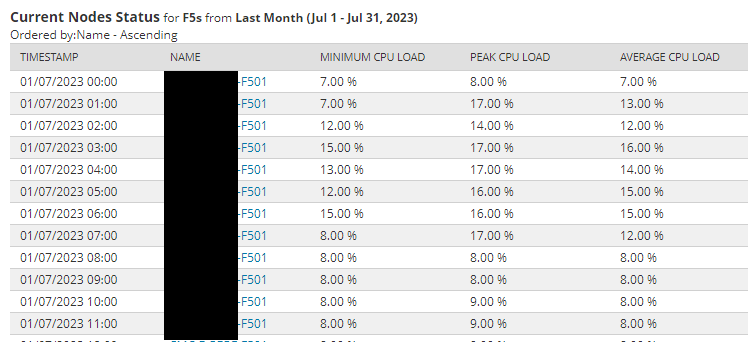

You can add or remove the column values as you see fit or edit the time span to suit but the combined logic and resource produces this output:



And so on down for every hour, of every day that month - then it starts on the next F5 and so on.
