Node Bandwidth thresholds for transmit and recieve

Rob.Beard.IT

We have a number of 'symbol' APs on the network, reporting to Solar winds. We are noticing the transmit and receive traffic volume is showing 'red' however traffic levels are low. It appears the bandwidth threshold numbers are in-correct.

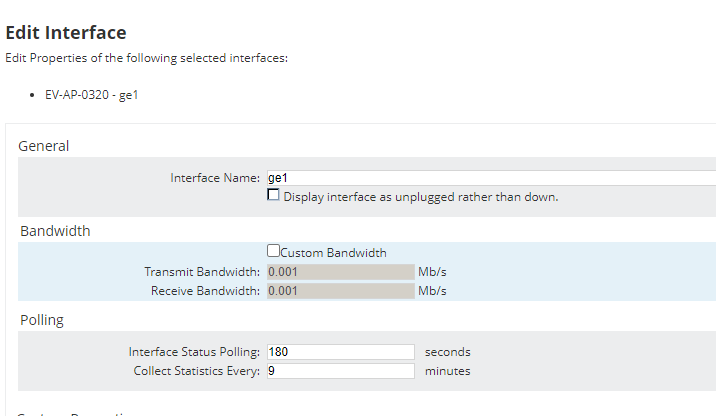

upon going to one of AP nodes and going to interface 'GE1' (main link to switch) it has a transmit and receive bandwidth numbers as '0.001Mbps' and are set to grey (screen grab below). You can override the numbers by ticking a box, however I need to set this to all APs. There must be a global/group policy / setting applying the '0.001Mpbs'. All Aps can handle 1GBps on their GE interface.

Can anyone advise where I could locate/find the policy applying the low bandwidth numbers?

Many Thanks

Find more posts tagged with

Accepted answers

bobmarley

There is a way to do it, but you need to be very specific to what you filter an select.

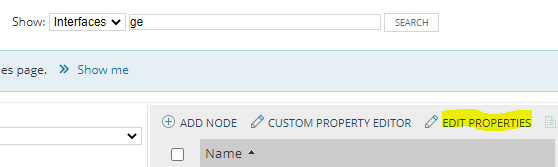

On your Manage Nodes menu select Show: Interfaces, put in your filter text and click Search

After you have done your search, expand the nodes and select all of the interfaces you want to edit and click Edit Properties

*Important, make sure you are selecting individual interfaces and not nodes.

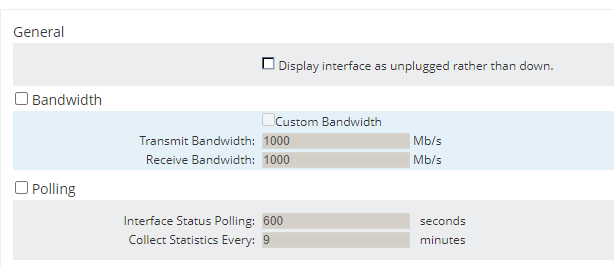

The next screen will show a list of all the interfaces you selected. Adjust the bandwidth as needed and click Submit.

*Try a few 'test' interfaces first before doing this en-mass
