Help - Alert for disk space on NetworkDisks (NFS) that are shared across ESXi Hosts

First off, I own SAM, but I do not own SRM or VMAN. I use basic VMware Polling against vCenter, with SNMP polling on each ESXi host in order to see the NetworkDisks (NFS datastores).

I need some help crafting a low disk space alert for NFS Network Disks that are connected to and shared with several ESXi Hosts. My issue is not so much crafting the alert, but crafting the alert so it doesn't trigger a low disk space alert for each ESXi host that is connected to the same shared network disk. All the Network Disks are shared across the hosts, reporting the same usage.

I could create the alert against a single ESXi host, but I have to think there's a better way. Any help would be greatly appreciated!

Find more posts tagged with

alert configuration

disk_space_alerts

VMware

Accepted answers

All comments

KMSigma.SWI

Now this is a fun challenge! Like you said, low disk space alert should be no problem, the problem it feels like you are running into is "distinct" alerts.

So here is my question: are your data stores named the same across all of your hosts?

What does the output of

SELECT  [V].VolumeID
      , [V].Caption
      , [V].Type
      , [V].FullName
      , [V].VolumeType
      , [V].VolumeDescription
      , [V].Size
      , [V].VolumeSize
      , [V].VolumeSpaceUsed
      , [V].VolumeSpaceAvailable
      , [V].VolumePercentUsed
      , [V].DeviceId
      , [V].Uri
FROM Orion.Volumes AS [V]
WHERE [V].VolumeType = 'NetworkDisk'

Look like for your environment?

LatteLarry

Fun indeed!

Yes, all datastores are named exactly the same across all the hosts. The output is the same across hosts- all volume usage is exactly the same. See below for an example

	13436	/vmfs/volumes/nfsdrive01	NetworkDisk	esxihost4-/vmfs/volumes/nfsdrive01	NetworkDisk	/vmfs/volumes/nfsdrive01	59711878889472	59711878889472	54972184559616	4739694329856	92.06239	NULL	swis://mysite/Orion/Orion.Nodes/NodeID=21902/Volumes/VolumeID=13436
	13451	/vmfs/volumes/nfsdrive01	NetworkDisk	esxihost5-/vmfs/volumes/nfsdrive01	NetworkDisk	/vmfs/volumes/nfsdrive01	59711878889472	59711878889472	54972184559616	4739694329856	92.06239	NULL	swis://mysite/Orion/Orion.Nodes/NodeID=21903/Volumes/VolumeID=13451

KMSigma.SWI

One last query...

What does the results of:

SELECT DISTINCT [V].Uri
      , [V].DisplayName
FROM Orion.Volumes AS [V]
WHERE [V].VolumeType = 'NetworkDisk'
  AND [V].VolumeDescription LIKE '/vmfs/volumes/%'

Show?

KMSigma.SWI

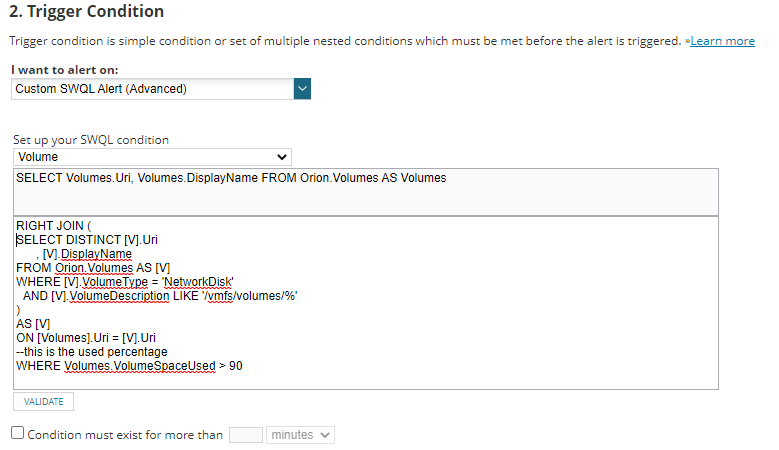

Here's my thought. Build a new volume alert and select Custom SWQL Alert as the type. Select "Volume" as the entity type.

Have it look like this:

SELECT Volumes.Uri, Volumes.DisplayName FROM Orion.Volumes AS Volumes
-- Above is automatically selected
-- below is what you can paste in
RIGHT JOIN ( SELECT DISTINCT [V].Uri
      , [V].DisplayName
FROM Orion.Volumes AS [V]
WHERE [V].VolumeType = 'NetworkDisk'
  AND [V].VolumeDescription LIKE '/vmfs/volumes/%'
)
AS [V]
ON [Volumes].Uri = [V].Uri
--this is the used percentage
WHERE Volumes.VolumeSpaceUsed > 90

Big old check on this: I don't have this setup, nor can I build something like this in my lab, so I'm going purely from my gut here.
