Cisco SDWAN SNMP OID monitoring. BFD sessions. Fail.

M33DLO

Hey guys..
Before we get the API stuff working I want to at least get some 'basic' SNMP OID polling for BFD sessions on colours. The aim being to alert. No bfd sessions = the ISP is dead. Simples.

I've just today updated to the latest MIB DB from SW. 1.3.0.50014.

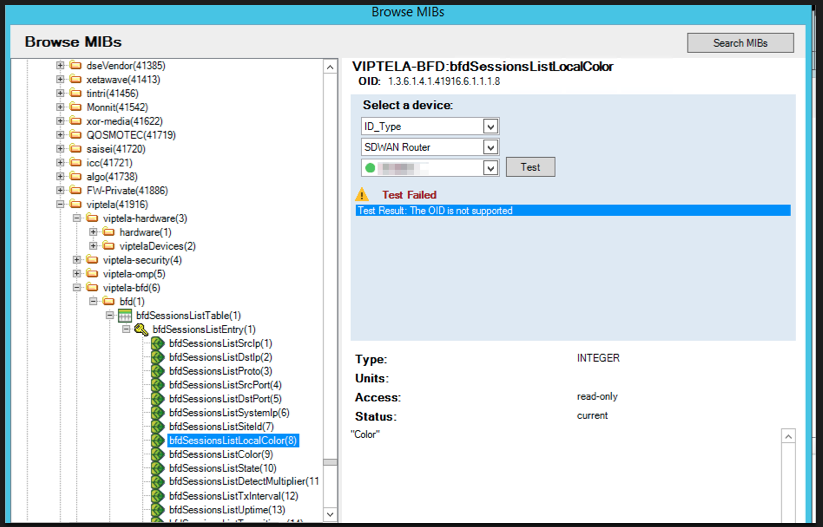

When I try to browse the MIB tree for 1.3.6.1.4.1.41916.6.1.1.1.8 (VIPTELLA-BFD:bfdSessionsListLocalColour)

I get: OID is not supported:

This is the same result for a Cisco 8200-1N-4T and a Cisco ISR4331 (converted to controller mode)

Browsing other viptella based OID's also fails.

Is the latest Solarwinds MIB DB capable of monitoring OID's for version 17.5.01a.0.165?

M33DLO

Digging a little deeper it seems that the OID 1.3.6.1.4.1.41916 for BFD sessions may only be supported on these devices:

Until we upgrade to 17.6.x as that includes a bunch of new MIBs:

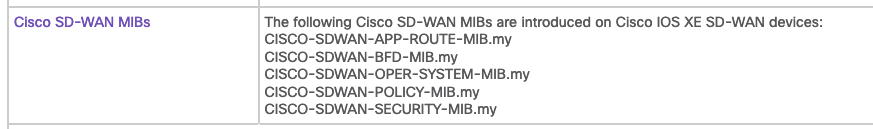

(from the 17.6 release notes)
.

I have a copy of the 17.6 MIB, how do we know if SW are actively importing this into their MIB DB ?
Searching on some of the OID descriptions in the 17.6 MIB file shows no hits against the 1.3.0.50014 SW MIB DB.
