UNDP Graphing in Performance Analyzer?

FormerMember

I appear able to create a traditional graph of a Universal Device Poller OID for number of

active Global Protect VPN sessions Palo Alto Networks firewall. But I seem to not be

able to get that UNDP data mapped in Performance Analyzer. Is it possible but I haven't

figured it out? Or just not going to happen with current versions of the product? 2020.2.5

is what I'm running

Find more posts tagged with

performance analyzer

Accepted answers

All comments

stuartd

Not sure I 100% follow your query.

Are you saying you can't open the UnDP in PerfStack?

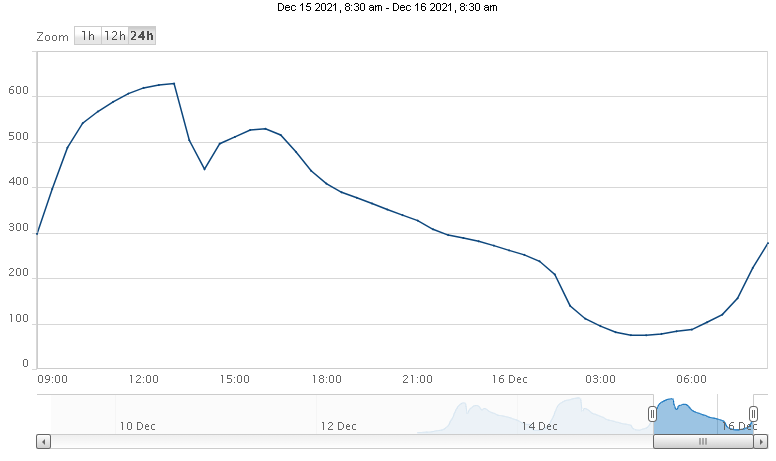

If so, then I don't see the benefit even if you could, as Global Protect VPN Sessions OID is just a binary number... we are using OID: 1.3.6.1.4.1.25461.2.1.2.5.1.3 and we put the figures into a graph which looks something like the below - which is one of ours for the last 24hrs.

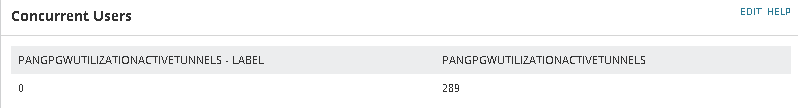

- alternatively you could just put in the current polled numbers - e.g.

stuartd

Having said that - I just read this thread where @george.subnet says they are running a perfstack widget to do do just what you are after - so have tagged him in and maybe he can advise how?

FormerMember

Thank you. Yes. Within the Node Details page I was able to add a graph of active sessions having added a certain widget. But there is no place on that widget to then open Perfstack as there are for most of the other widgets on that page. So then I tried to go about it another way - opening Perfstack and creating a new graph. I tried looking at Node and other options that would eventually get me to that tracked OID. But so far no luck. The Perfstack graphs are just better and you can easily scroll to see a point in time on the series. My graph is just a static image until the next data point arrives.

FormerMember

The widget I am using is the Multiple Universal Device Pollers Chart. As I note there's no link on it to Perfstack.

KMSigma.SWI

As an alternative: why not put it on a Modern Dashboard as @george.subnet did?
