Using VRealize to install agent on new vms with API but has stopped working after recent updates.

Using VRealize to install agent on new vms with API but has stopped working after recent updates. Now when listing resources the installing agent screen displays and then works. If this manual process is not done all the plugins are never installed and monitoring is not completely setup correctly. This is the point of the automation to no longer need to run manual steps. Any help is appreciated. Opened a ticket with support but was sent to THWACK to get the answer - Case # - 00887421 Since API is not fully supported - Support for Orion SDK and other API-related tools (solarwinds.com)

Find more posts tagged with

list resources

agent install

vrealize

API

Accepted answers

All comments

KMSigma.SWI

Can you provide the following?

The Orion Platform Version
The script you are using
Detailed information on the problem and the steps to reproduce the problem
The expected outcome from the script

cory.chandler

Her you go... The outcome is to get the installation of the agent to complete without manual intervention. This was working on 2019.4.2.

Orion Platform - 2020.2.6

API to Create node
API to Add 9 pollers to node
API to Deploy agent - it is not installing all plugins. When listing resources a popup that the agent software is still installing and the rest of the plugins install and the node works after this happens.

solarwinds.org:17778/.../StartIpReservation with paramaters ["10.15.16.0",20,10]
2021-11-19 10:06:24.000 -06:00INFOResponse HTTP status: 200
2021-11-19 10:06:24.000 -06:00INFO__item_stack:/item2/item2
2021-11-19 10:06:24.000 -06:00INFO__item_stack:/item2/item0
2021-11-19 10:06:24.000 -06:00INFO__item_stack:/item0

solarwinds.org:17778/.../ChangeIpStatus with paramaters ["10.15.17.20","Used"]
2021-11-19 10:06:24.000 -06:00INFOResponse HTTP status: 200

solarwinds.org:17778/.../ChangeIpStatus with paramaters ["10.15.17.20","Used"]

Create Node
2021-11-19 10:17:16.000 -06:00INFORequest: {"IP_Address" :"10.15.17.20", "EngineID" : 3, "SysName":"tstswsapp23","ObjectSubType":"Agent","DNS":"tstswsapp23.boystown.org", "NodeName":"tstswsapp23","vendor":"Windows","IsServer":true}
2021-11-19 10:17:16.000 -06:00INFORequest URL: solarwinds.org:17778/.../orion.nodes
2021-11-19 10:17:17.000 -06:00INFOResponse: DynamicWrapper (Instance) : [RESTResponse]-[class com.vmware.o11n.plugin.rest.Response] -- VALUE : com.vmware.o11n.plugin.rest.Response@fb6e095
2021-11-19 10:17:17.000 -06:00INFOStatus code: 200
2021-11-19 10:17:17.000 -06:00INFOContent as string: "swis://NEESSW01.org/Orion/Orion.Nodes/NodeID=4230"

Add Pollers 9

0N.Status.ICMP.Nativestring
1N.ResponseTime.ICMP.Nativestring
2N.Cpu.WMI.Windowsstring
3N.Memory.WMI.Windowsstring
4N.AssetInventory.Wmi.Genericstring
5N.Status.Agent.Nativestring
6N.ResponseTime.Agent.Nativestring
7N.Details.WMI.Genericstring
8N.Uptime.WMI.Genericstring

2021-11-19 10:17:17.000 -06:00INFORequest URL: solarwinds.org:17778/.../orion.pollers
2021-11-19 10:17:18.000 -06:00INFOResponse: DynamicWrapper (Instance) : [RESTResponse]-[class com.vmware.o11n.plugin.rest.Response] -- VALUE : com.vmware.o11n.plugin.rest.Response@36ec8280
2021-11-19 10:17:18.000 -06:00INFOStatus code: 200
2021-11-19 10:17:18.000 -06:00INFOContent as string: "swis://NEESSW01.org/Orion/Orion.Pollers/PollerID=230039"

Install Agent
// Create JSON body for POST call.
var content = '['+nodeID+',"'+svcUser+'","'+svcPassword+'"]';

2021-11-19 10:17:20.000 -06:00INFO__item_stack:/item8/item3/item3
2021-11-19 10:17:20.000 -06:00INFORequest: DynamicWrapper (Instance) : [RESTRequest]-[class com.vmware.o11n.plugin.rest.Request] -- VALUE : com.vmware.o11n.plugin.rest.Request@1912cd5d
2021-11-19 10:17:20.000 -06:00INFORequest URL: solarwinds.org:17778/.../deploytonode
2021-11-19 10:17:50.000 -06:00INFOResponse: DynamicWrapper (Instance) : [RESTResponse]-[class com.vmware.o11n.plugin.rest.Response] -- VALUE : com.vmware.o11n.plugin.rest.Response@43c3d6d0
2021-11-19 10:17:50.000 -06:00INFOStatus code: 200
2021-11-19 10:17:50.000 -06:00INFOContent as string: 1369

cory.chandler

trying to reply with the details but keeps seeing the api details as spam is there a better way to work on this problem?

KMSigma.SWI

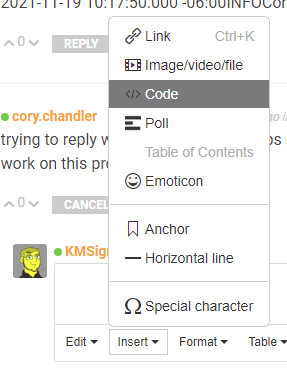

Use "Insert/Code" to past these kinds of details.

cory.chandler

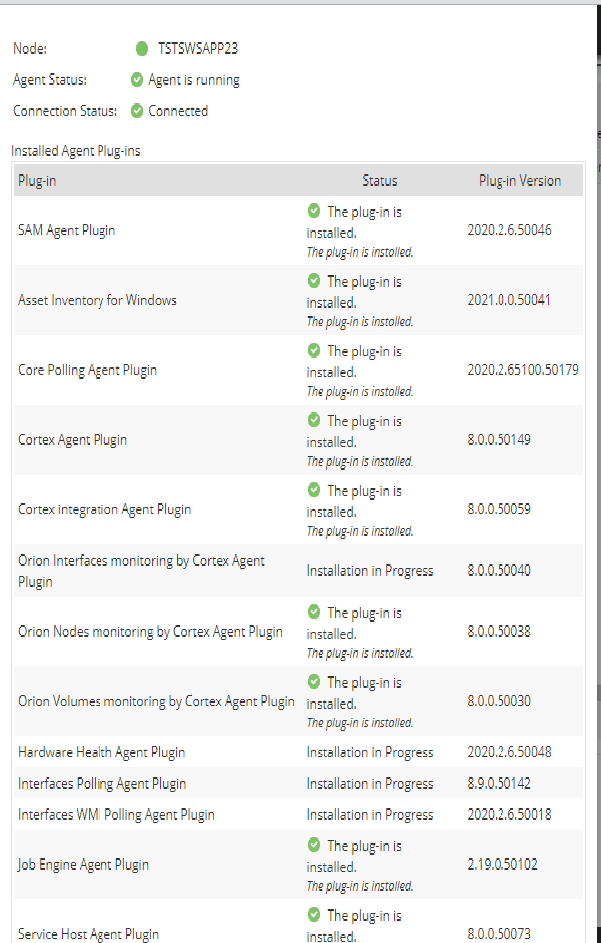

Here's a print screen after the agent is installed from vra and after listing resources within solarwinds to finish the agent install. You can see the remaining plugins install and then the agent starts working correctly. Double checked and .net 4.8 is installed
