Poller transform data not showing correctly

spangsebrg

HI
I have create a custom UDP poller, retrieving an SNMP table with 12 values. Works fine.

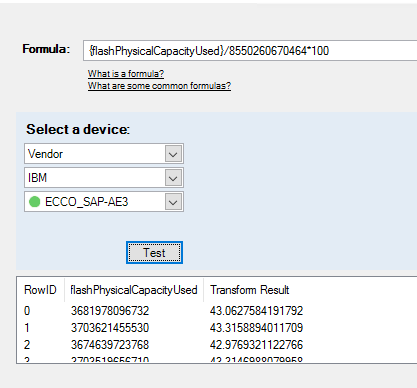

I have then created a transform manipulating the data, and the test run in UDP shows the expected transformed data.

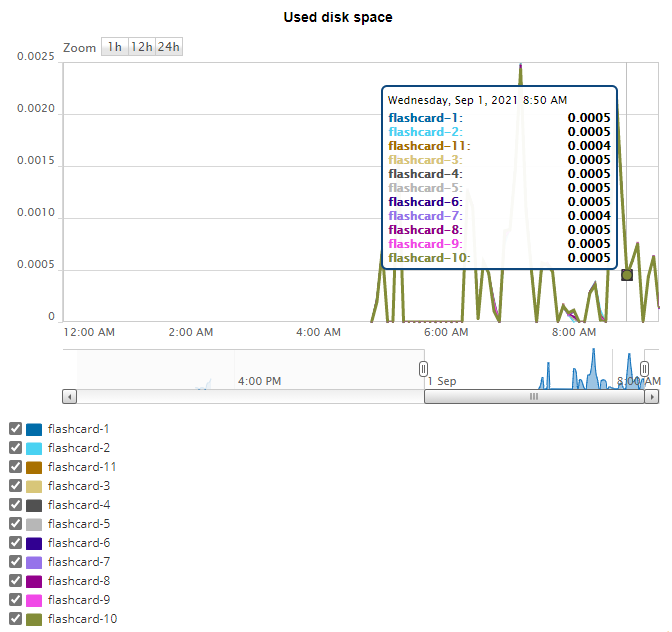

But when I then add the transform to the same node used for testing in UDP, it shows me a graph with data completely unrelated to the data created by the initial poller and the Transform.

What do I need to do to get the graph to show the transformed data??

aLTeReGo

Let's start with something simpler first. Try adding a table of the data to the details view.

Add the Universal Device Poller Status to your View

Click “Settings > All Settings” in the top navigation of the Orion web interface and then click “Manage Views” under “Views”. Select "Node Details" from the list and click "Edit". Click the green [+] to add a resource to the view. Under the "Node Detail Reports - Resources that apply to a single network node" select "Universal Device Poller Status" and click “submit” to add the Universal Device Poller Status to the Node Details view. Lastly click “Done”. Your changes will be saved and you’ll be returned to Manage Views. Now when you navigate to a node that has the  UnDP applied to it. The Universal Device Poller status tabular data will be displayed in the web interface of Orion.
