Number of physical interfaces on cisco devices (powershell)

Hi All,

I wanted to know how many physical interfaces existed on a device. I didn't want to use discovery or list resource.

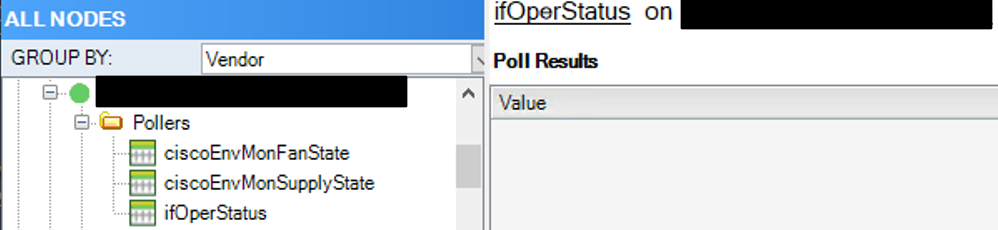

I thought of custom polling for OperationalStatus and NPM let us create a custom poller for that OID, but it does not capture the value.

So, lets have powershell poll it and push the values to a custom property.

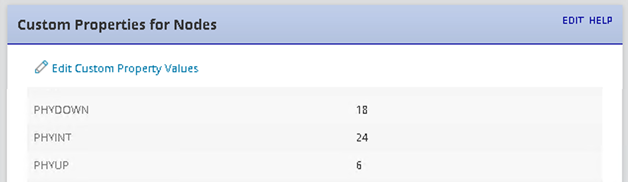

I'm using three custom properties: 1) phyInt - number of physical interfaces (ethernet); 2) number of Up from (1); 3) number of down from (1).

# Get a list of switches

$ErrorActionPreference = 'Stop'
Add-PSSnapin SwisSnapin
$swis = Connect-Swis -Hostname x.x.x.x -Username xxxx" -Password xxxx
$query = "SELECT top 1 n.ip_address, n.CustomProperties.Uri as [uri] from Orion.Nodes n WHERE vendor like 'Cisco'"
$nodes = Get-SwisData -SwisConnection $swis -Query $query
# foreach ($node in $nodes) {Write-Host "$($node)" }

# Go through the nodes
foreach ($node in $nodes) {

# Open SNMP
$SNMP = New-Object -ComObject olePrn.OleSNMP
$SNMP.open($node.ip_address ,'Password',2,1000)

# Get SNMP ifType
try { $SNMPDATA1=$SNMP.GetTree(".1.3.6.1.2.1.2.2.1.3") }
catch { $SNMP.Close() }

# Get SNMP ifOperatioanlStatus
try { $SNMPDATA2=$SNMP.GetTree(".1.3.6.1.2.1.2.2.1.8") }
catch { $SNMP.Close() }

#Close SNMP
$SNMP.close()

$phyInterfaces=0
$phyOperStatusUp=0
$phyOperStatusDown=0

# Go thru each interface and do Counts
for($i=0;$i-lt $SNMPDATA1.length/2;$i++)
{
if ($SNMPDATA1[1,$i] -eq 6) { $phyInterfaces+=1}
if (($SNMPDATA1[1,$i] -eq 6) -and ($SNMPDATA2[1,$i] -eq 1)) { $phyOperStatusUp+=1}
if (($SNMPDATA1[1,$i] -eq 6) -and ($SNMPDATA2[1,$i] -eq 2)) { $phyOperStatusDown+=1}
}
Write-Host "$($node.ip_address) phyInterfcaes:$($phyInterfaces) Up:$($phyOperStatusUp) Down:$($phyOperStatusDown) uri:$($node.uri)"

Set-SwisObject $swis -uri $node.uri -Properties @{phyInt=$phyInterfaces; phyUp=$phyOperStatusUp; phyDown=$phyOperStatusDown}

}

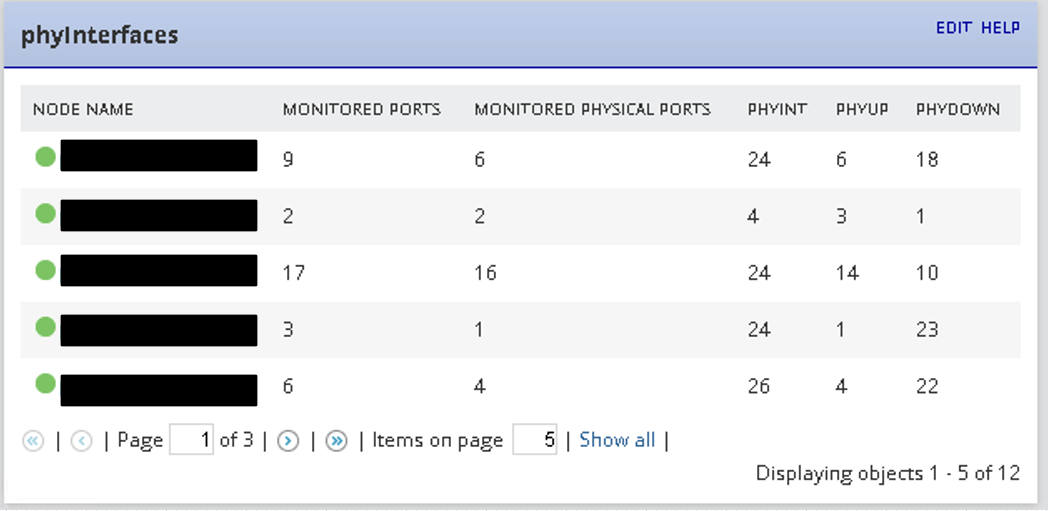

While we're at it - lets create a widget to show the values

SELECT
TOUPPER(SUBSTRING(n.Caption,1,case when charindex('.',n.caption,1) <=4 then length(n.Caption) else (charindex('.',n.Caption,1)-1) end)) AS [Node Name]
,DetailsUrl AS [_LinkFor_Node Name]
,'/Orion/images/StatusIcons/Small-' + StatusIcon AS [_IconFor_Node Name]
,(select count(*) as d from orion.NPM.Interfaces i where i.NodeID=n.nodeid) as [Monitored ports]
,(select count(*) as d from orion.NPM.Interfaces i where i.NodeID=n.nodeid and i.InterfaceType=6) as [Monitored physical ports]
,n.CustomProperties.phyInt
,n.CustomProperties.phyUp
,n.CustomProperties.phyDown
from Orion.Nodes n
WHERE vendor like 'Cisco'

This tells me that for the first device - there are 9 ports monitored and 6 of them are physical. ALso, there are 24 physical ports on the device of which 6 are up and 18 down.

Thank you,

Amit

Loop1 Systems

https://loop1.com/

Find more posts tagged with

npm

Comments

mesverrum

How quickly do those snmp.getTree operations complete? Also seems like you would want to just pull the community as part of your nodes query and pass it into the second argument of the snmp.open.

cscoengineer

You're right - it's simple enough for SNMPv2, but V3 is a bit more complicated.

# Get a list of Cisco SNMPv1, SNMPV2 devices

$ErrorActionPreference = 'Stop'
Add-PSSnapin SwisSnapin
$swis = Connect-Swis -Hostname x.x.x.x -Username xxx -Password xxx
$query = "SELECT n.ip_address, n.Community, n.CustomProperties.Uri as [uri] from Orion.Nodes n WHERE vendor like 'Cisco' and n.SNMPVersion=2"
$nodes = Get-SwisData -SwisConnection $swis -Query $query
# foreach ($node in $nodes) {Write-Host "$($node)" }
