Hi all,
new joiner, but been very impressed with the depth of knowledge on here for months now. If I cannot find an answer in official docs, I can usually find someone else who's had the same/similar questions I have on here.
To follow up on this, a 10+ year old post helped out on this 10+ year old hardware, but I have a question: following https://thwack.solarwinds.com/product-forums/network-performance-monitor-npm/f/forum/23547/cisco-linecard-status-poller-and-reports from wbrown, I have imported the UnDP poller for cefcModuleOperStatus and assigned it to my 6509 VSS. The 2 chassis have 9 linecards each, but this poller and report I'm using show way more rows than linecards, and I can't make out exactly how the rows match with what I see on CLI.
Any pointers, please?
CLI:
CORE#sh modu switch 1
Switch Number: 1 Role: Virtual Switch Active
---------------------- -----------------------------
Mod Ports Card Type Model Serial No.
--- ----- -------------------------------------- ------------------ -----------
1 16 CEF720 16 port 10GE WS-X6716-10GE x
2 16 CEF720 16 port 10GE WS-X6716-10GE x
3 8 CEF720 8 port 10GE with DFC WS-X6708-10GE x
4 48 CEF720 48 port 1000mb SFP WS-X6748-SFP x
5 5 Supervisor Engine 720 10GE (Active) VS-S720-10G x
6 48 CEF720 48 port 10/100/1000mb Ethernet WS-X6748-GE-TX x
7 4 WiSM 2 WLAN Service Module WS-SVC-WISM2-K9 x
8 8 CEF720 8 port 10GE with DFC WS-X6708-10GE x
9 4 CEF720 4 port 10-Gigabit Ethernet WS-X6704-10GE x
Mod MAC addresses Hw Fw Sw Status
--- ---------------------------------- ------ ------------ ------------ -------
1 c47d.4f8f.a430 to c47d.4f8f.a43f 1.1 12.2(18r)S1 12.2(33)SXJ4 Ok
2 442b.0350.0338 to 442b.0350.0347 1.2 12.2(18r)S1 12.2(33)SXJ4 Ok
3 442b.034f.9200 to 442b.034f.9207 3.5 12.2(18r)S1 12.2(33)SXJ4 Ok
4 68ef.bd15.d3f0 to 68ef.bd15.d41f 2.3 12.2(18r)S1 12.2(33)SXJ4 Ok
5 0026.cb61.5328 to 0026.cb61.532f 3.2 8.5(4) 12.2(33)SXJ4 Ok
6 0021.d871.dfd0 to 0021.d871.dfff 3.2 12.2(18r)S1 12.2(33)SXJ4 Ok
7 30f7.0d0b.6e98 to 30f7.0d0b.6ea7 1.1 12.2(18r)S1 12.2(33)SXJ4 Ok
8 0024.c463.9e88 to 0024.c463.9e8f 1.7 12.2(18r)S1 12.2(33)SXJ4 Ok
9 0022.55e6.c4f4 to 0022.55e6.c4f7 2.7 12.2(14r)S5 12.2(33)SXJ4 Ok
Mod Sub-Module Model Serial Hw Status
---- --------------------------- ------------------ ----------- ------- -------
1 Distributed Forwarding Card WS-F6700-DFC3C xxxxxxxxxxx 1.4 Ok
2 Distributed Forwarding Card WS-F6700-DFC3C xxxxxxxxxxx 1.8 Ok
3 Distributed Forwarding Card WS-F6700-DFC3C xxxxxxxxxxx 1.5 Ok
4 Centralized Forwarding Card WS-F6700-CFC xxxxxxxxxxx 4.1 Ok
5 Policy Feature Card 3 VS-F6K-PFC3C xxxxxxxxxxx 1.1 Ok
5 MSFC3 Daughterboard VS-F6K-MSFC3 xxxxxxxxxxx 5.0 Ok
6 Centralized Forwarding Card WS-F6700-CFC xxxxxxxxxxx 4.1 Ok
8 Distributed Forwarding Card WS-F6700-DFC3C xxxxxxxxxxx 1.3 Ok
9 Centralized Forwarding Card WS-F6700-CFC xxxxxxxxxxx 4.1 Ok
Mod Online Diag Status
---- -------------------
1 Pass
2 Pass
3 Pass
4 Pass
5 Pass
6 Pass
7 Pass
8 Pass
9 Pass

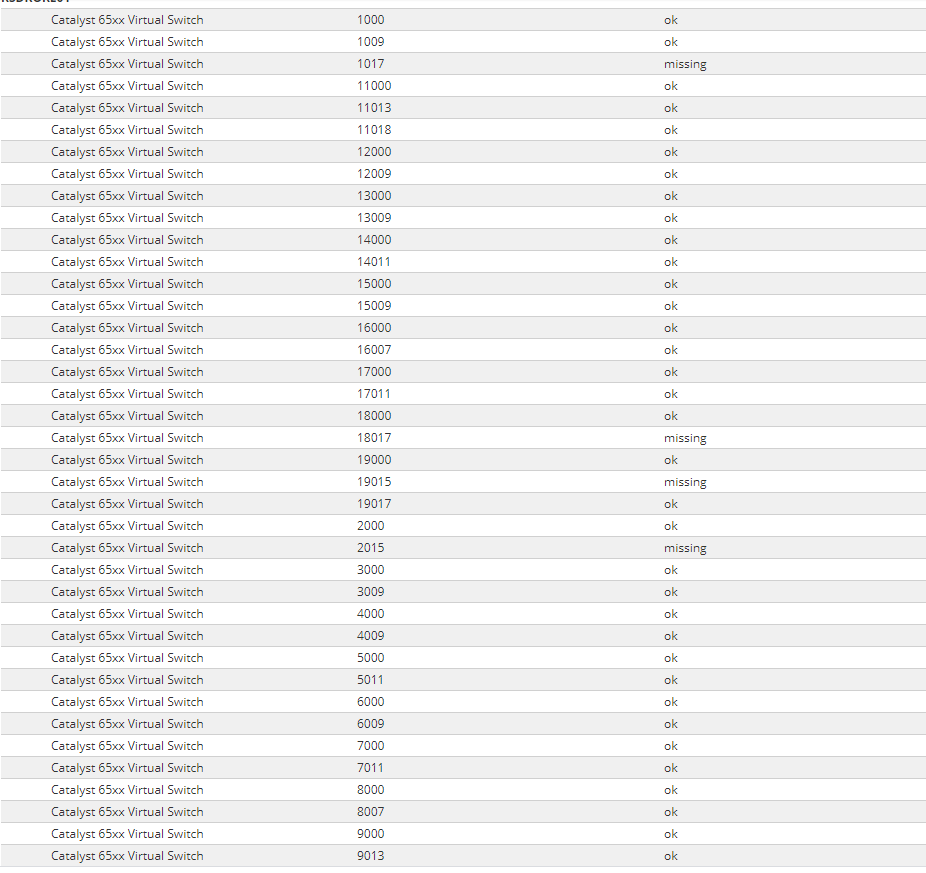

Report:

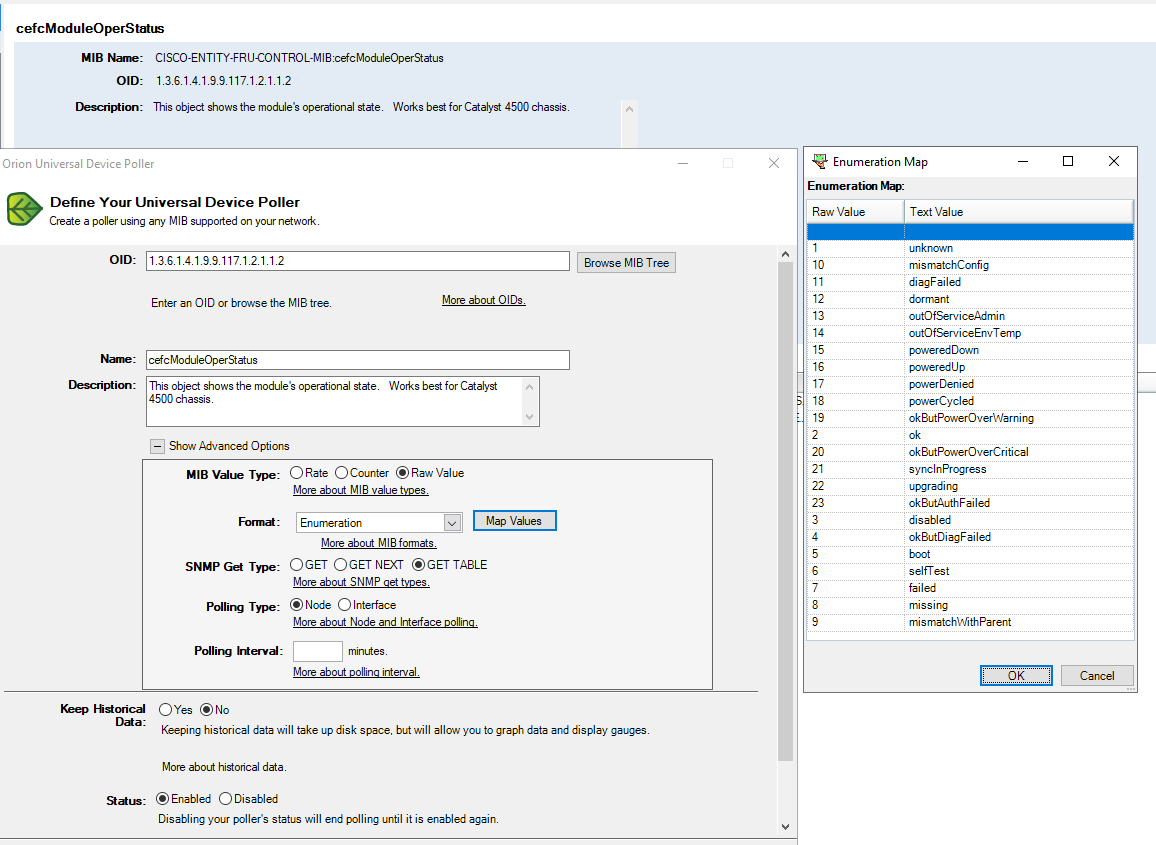

Poller:
