Hi there
I am getting vendor, machine unknowns in the logo for the following node. This is some of the info that I got from from the snmpwalk.
I uploaded the logo but it still shows as a ? .... The logo matched the OID value 47196 , Am I doing something wrong in the custom made poller?

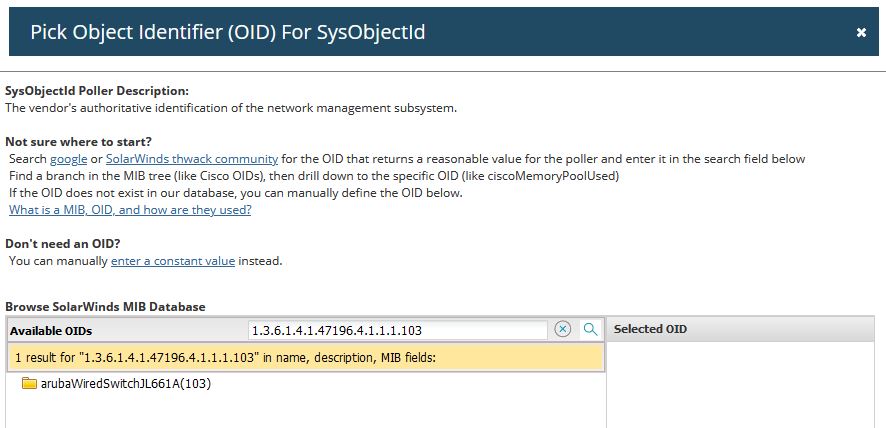

Also when I enter the OID for the Sysobject it just does show the folder but thats it. Can someone help? Thanks!
.1.3.6.1.2.1.1.1.0 = STRING: "FL.10.04.0010"
.1.3.6.1.2.1.1.2.0 = OID: 1.3.6.1.4.1.47196.4.1.1.1.103
.1.3.6.1.2.1.1.3.0 = TIMETICKS: 10975796
.1.3.6.1.2.1.1.4.0 = STRING: """"
.1.3.6.1.2.1.1.5.0 = STRING: "CWC-269-1"
.1.3.6.1.2.1.1.6.0 = STRING: """"
.1.3.6.1.2.1.1.7.0 = INTEGER: 78
.1.3.6.1.2.1.1.8.0 = TIMETICKS: 0
.1.3.6.1.2.1.1.9.1.2.1 = OID: 1.3.6.1.6.3.1
.1.3.6.1.2.1.1.9.1.2.2 = OID: 1.3.6.1.6.3.15.2.1.1
.1.3.6.1.2.1.1.9.1.2.3 = OID: 1.3.6.1.6.3.16.2.2.1
.1.3.6.1.2.1.1.9.1.2.4 = OID: 1.3.6.1.6.3.11.3.1.1
.1.3.6.1.2.1.1.9.1.2.5 = OID: 1.3.6.1.6.3.10.3.1.1
.1.3.6.1.2.1.1.9.1.3.1 = STRING: "The MIB module for SNMPv2 entities"
.1.3.6.1.2.1.1.9.1.3.2 = STRING: "The management information definitions for the SNMP User-based Security Model."
.1.3.6.1.2.1.1.9.1.3.3 = STRING: "View-based Access Control Model for SNMP."
.1.3.6.1.2.1.1.9.1.3.4 = STRING: "The MIB for Message Processing and Dispatching."
.1.3.6.1.2.1.1.9.1.3.5 = STRING: "The SNMP Management Architecture MIB."
