Regular Expressions for Dynamic Query on NPM

I am creating dynamic queries on NPM for sites to fall in their respective groups. I would like to know correct expression to include these subnet's in the queries.

So let’s consider that I have a site with /27 subnet 10.10.10.0/27, which will have a valid rage between 10.10.10.1-30.

What kind of expression will match the range of IP’s in the query given below.

We have used similar expression “ 10.10.[0-3].* ” for matching the 3 octet of the subnet but it only matches " 10.10.0.X "

Similarly when I am matching the last octet ex : 10.10.10.[10-20]

So the match case only matches the first digit inside the bracket and skips the rest

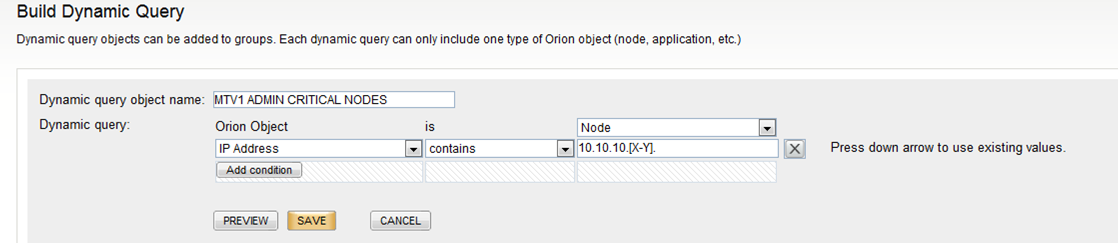

Dynamic query.png

Find more posts tagged with

Accepted answers

njoylif

pretty much sums it up. Also, the ',' is valid if you have to skip numbers..i.e. 10.10.[1,3][2-5].* would give you the supernet 10.10.12-15.x or 10.10.12.0/22 AND 10.10.32-35.x (10.10.32.0/22).

Nice job finding it out!

All comments

gigabyte

So here is the deal !

I spoke with support tech they told me that they don't fully support regular expression.

What I figured out is that when we enter regular expression while building dynamic queries, Orion considers numbers in an IP as characters and will match only one character at a time.

Let's take couple of range of IP's to work with.

IPs Regular Expression

1: 10.30.0.1 - 10.30.3.254 : 10.30.[0-3].*

2: 10.30.42.1 - 10.30.49.254 : 10.30.4[2-9].*

Since it does the charcter matching, we have fixed the first character of the 3rd octet as 4 and the 2nd charcter between 2-9

3: 10.30.156.1 - 10.30.159.254 : 10.30.15[6-9].*

Here first 2 characters in the 3rd octet is fixed.

Note: This whole logic works as long as there is no reset in the character of the octet that you are matching, the reason for which I will clear in the following example.

4: 10.30.68.1 - 10.30.71.254 : 10.30.6[8-9].* & 10.30.7[0-1].*

In this example since the 1st character of the 3rd Octet is getting reset, you need two separate queries to cover the whole range.

5: 10.254.109.209-10.254.109.222 : 10.254.109.209, 10.254.109.21[0-9] , 10.254.109.22[0-2]

Here you will need 3 separate queries to split and match the complete range

I hope that helps,
Open for suggestions if you have any other alternatives.

njoylif

pretty much sums it up. Also, the ',' is valid if you have to skip numbers..i.e. 10.10.[1,3][2-5].* would give you the supernet 10.10.12-15.x or 10.10.12.0/22 AND 10.10.32-35.x (10.10.32.0/22).

Nice job finding it out!
