How To Find All Alerts That Fire On A Node?

cfeltych1911

Is there a way to select a node in Orion NPM and return all the alerts associated with it? We're running NPM 10.0.

Thanks in advance.

Find more posts tagged with

Accepted answers

All comments

superfly

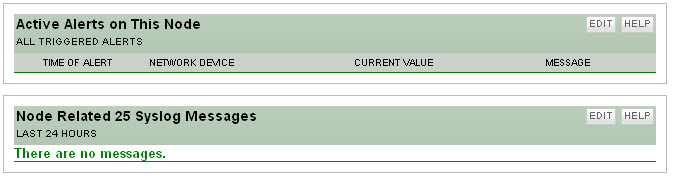

When selecting a node, in that particular view you can add in the "Active Alers on This Node" resource. Or the "Node Releated 25 Syslog Messages".

cfeltych1911

What I need to be able to find is all the alerts that are configured for a given node, not what is currently active on it. Thanks.

cgregors

I went thru the same problem and found a _long_ but workable solution.

I wrote a php script (my scripting language of choice for the last few years) that did the following:

for each alert definition in the Orion database
1. read the trigger condition
2. decompose the sql
3. remove portions of the WHERE clause that related to thresholds or state tests
4. run the remaining sql against the Orion database
5. Take the list of results and associate them with the nodes / apps / components / volumes / interfaces that the alert COULD trigger on.

Needless to say, this took a while to write (2-3 days) and most likely doesn't correctly strip all variations of WHERE statements that you could write.

Example:

alert name : Node MEM Utilization

Original sql:

SELECT DISTINCT Nodes.NodeID AS NetObjectID, Nodes.Caption AS Name

FROM Nodes

WHERE

(

(Nodes.Status = '1') AND

(Nodes.Status <> '0') AND

(Nodes.Status <> '9') AND

(Nodes.customproperty= 1) AND

(Nodes.PercentMemoryUsed >= 85)

)

Stripped sql:

SELECT DISTINCT Nodes.NodeID AS NetObjectID, Nodes.Caption AS Name

FROM Nodes

WHERE ( ( Nodes.customproperty= 1 ) )

In this case the idea is to delete the Nodes.Status and Nodes.PercentMemoryUsed qualifiers and see what comes out.

You can also start by doing the process by hand to understand what needs to be done.

Chris

thamizh85

It is a very good question, because by the nature of Alert definition in Orion, it is not very clear which nodes/interfaces it applies to (if your conditions are too detailed).

Over a course of time, it becomes essential to pick some core nodes and check whether all policies created are applicable for it (i.e, not skipped because of some loosely defined rules)
