MOXA EDS-P510 igmp Group joined ports UnDP

Hi all. We have a number of Moxa EDS-P510 switches that we monitor with SolarWinds. I've set up a number of UnDP's to monitor specific parameters; one of them is the igmpSnoopingMulticastGroup table.

[Note: I've redacted all IP addresses and authentication strings in the following.]

The snmp table looks like this:

SNMP table: MOXA-EDSP510-MIB::igmpSnoopingMulticastGroupTable
igmpSnoopingIpGroup igmpSnoopingMacGroup igmpSnoopingJoinedPorts
   239.xx.y.a         1:0:5e:16:5:4            "C0 00 "
   239.xx.y.b         1:0:5e:16:5:5            "C0 00 "
   239.xx.y.c         1:0:5e:16:5:6            "90 00 "
   239.xx.y.d         1:0:5e:16:5:7            "A0 00 "
   239.xx.y.e         1:0:5e:16:5:8            "A0 00 "
   239.xx.y.f         1:0:5e:16:5:9            "A0 00 "
   239.xx.y.g         1:0:5e:16:5:a            "A0 00 "

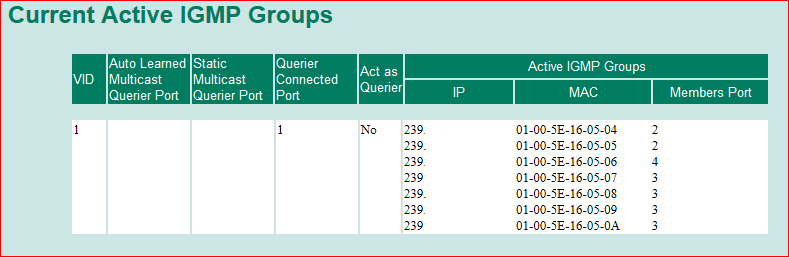

which corresponds to what is displayed here:

If I use snmpbulkget to look at just the igmpSnoopingJoinedPorts column (shown as "Members Port" in the screenshot), I get:

snmpbulkget -v 3 -u admin -a SHA -A <redacted> -l authpriv -x DES -X <redacted> -m +MOXA-EDSP510-MIB -OeT 10.22.5.117 igmpSnoopingJoinedPorts
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.a = Hex-STRING: C0 00   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.b = Hex-STRING: C0 00   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.c = Hex-STRING: 90 00   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.d = Hex-STRING: A0 00   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.e = Hex-STRING: A0 00   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.f = Hex-STRING: A0 00   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.g = Hex-STRING: A0 00   [..]

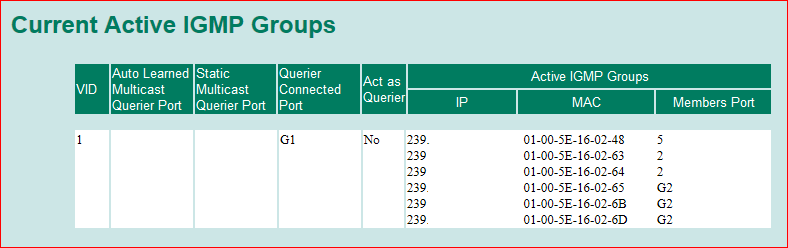

I'm guessing that the Hex String is actually understood by the Moxa web interface as a bitmap field with each bit corresponding to a port (but that is just a guess). Here's another example with corresponding screenshot...

snmpbulkget -v 2c -c public -m +MOXA-EDSP510-MIB -OeT 10.22.2.92 igmpSnoopingJoinedPorts
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.a = Hex-STRING: 09 00   [ .]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.b = Hex-STRING: 41 00   [A.]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.c = Hex-STRING: 41 00   [A.]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.d = Hex-STRING: 01 80   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.e = Hex-STRING: 01 80   [..]
MOXA-EDSP510-MIB::igmpSnoopingJoinedPorts.1.239.xx.y.f = Hex-STRING: 01 80   [..]

Is there any way to transform these results to show the actual port ID's as displayed on the Moxa web ui? I've tried enum but that doesn't seem to like the HEX values (and the corresponding ascii chars are largely unprintable).

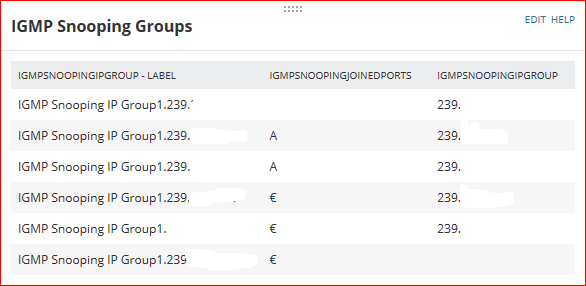

Here's how it displays in SolarWinds at the moment (this corresponds to the example immediately above):

The corresponding MIB section:

-- -------------------------------------------------------------
-- multicast filtering
-- -------------------------------------------------------------
    multicastFiltering OBJECT IDENTIFIER ::= { swMgmt 20 }
    igmpSnooping OBJECT IDENTIFIER ::= { multicastFiltering 1 }

    querierQueryInterval OBJECT-TYPE
        SYNTAX INTEGER (20..600)
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "This query interval of the querier function for this VLAN."
        ::= { igmpSnooping 1 }

    igmpSnoopingSettingTable OBJECT-TYPE
        SYNTAX SEQUENCE OF IgmpSnoopingSettingEntry
        MAX-ACCESS not-accessible
        STATUS current
        DESCRIPTION
            "The IGMP snooping setting table."
        ::= { igmpSnooping 2 }

    igmpSnoopingSettingEntry OBJECT-TYPE
        SYNTAX IgmpSnoopingSettingEntry
        MAX-ACCESS not-accessible
        STATUS current
        DESCRIPTION
            "The IGMP snooping setting Entry."
        INDEX { vlanId }
        ::= { igmpSnoopingSettingTable 1 }

    IgmpSnoopingSettingEntry ::=
        SEQUENCE {
            enableIgmpSnooping
                INTEGER,
            enableQuerier
                INTEGER,
            fixedMulticastQuerierPorts
                PortList,
            learnedMulticastQuerierPorts
                PortList
            }

    enableIgmpSnooping OBJECT-TYPE
        SYNTAX INTEGER {disable(0),enable(1)}
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "This enable the IGMP snooping functon in this VLAN."
        ::= { igmpSnoopingSettingEntry 1 }

    enableQuerier OBJECT-TYPE
        SYNTAX INTEGER {disable(0),enable(1)}
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "This enable the querier function for this VLAN."
        ::= { igmpSnoopingSettingEntry 2 }

    fixedMulticastQuerierPorts OBJECT-TYPE
        SYNTAX PortList
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "The ports that multicast-Querier exist."
        ::= { igmpSnoopingSettingEntry 3 }

    learnedMulticastQuerierPorts OBJECT-TYPE
        SYNTAX PortList
        MAX-ACCESS read-only
        STATUS current
        DESCRIPTION
            "The ports that multicast-Querier exist."
        ::= { igmpSnoopingSettingEntry 4 }

    igmpSnoopingMulticastGroupTable OBJECT-TYPE
        SYNTAX SEQUENCE OF IgmpSnoopingMulticastGroupEntry
        MAX-ACCESS not-accessible
        STATUS current
        DESCRIPTION
            "The multicast group table by IGMP snooping function."
        ::= { igmpSnooping 3 }

    igmpSnoopingMulticastGroupEntry OBJECT-TYPE
        SYNTAX IgmpSnoopingMulticastGroupEntry
        MAX-ACCESS not-accessible
        STATUS current
        DESCRIPTION
            "The multicast group entry by IGMP snooping function."
        -- INDEX { vlanId,multicastIpGroup }
        INDEX { vlanId, igmpSnoopingIpGroup }
        ::= { igmpSnoopingMulticastGroupTable 1 }

    IgmpSnoopingMulticastGroupEntry ::=
        SEQUENCE {
            igmpSnoopingIpGroup
                IpAddress,
            igmpSnoopingMacGroup
                MacAddress,
            igmpSnoopingJoinedPorts
                PortList
            }

    igmpSnoopingIpGroup OBJECT-TYPE
        SYNTAX IpAddress
        MAX-ACCESS read-only
        STATUS current
        DESCRIPTION
            "The multicast IP group by IGMP snooping function."
        ::= { igmpSnoopingMulticastGroupEntry 1 }

    igmpSnoopingMacGroup OBJECT-TYPE
        SYNTAX MacAddress
        MAX-ACCESS read-only
        STATUS current
        DESCRIPTION
            "The multicast MAC group by IGMP snooping function."
        ::= { igmpSnoopingMulticastGroupEntry 2 }

    igmpSnoopingJoinedPorts OBJECT-TYPE
        SYNTAX PortList
        MAX-ACCESS read-only
        STATUS current
        DESCRIPTION
            "The ports that joined this multicast group."
        ::= { igmpSnoopingMulticastGroupEntry 3 }

    enableGlobalIgmpSnooping OBJECT-TYPE
        SYNTAX INTEGER {disable(0),enable(1)}
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "This enable the IGMP snooping functon ."
        ::= { igmpSnooping 4 }

    enhancedMode OBJECT-TYPE
        SYNTAX INTEGER {disable(0),enable(1)}
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "This enable the IGMP enhancedMode ."
        ::= { igmpSnooping 5 }

    multicastFastForwarding OBJECT-TYPE
        SYNTAX INTEGER {disable(0),enable(1)}
        MAX-ACCESS read-write
        STATUS current
        DESCRIPTION
            "This Enable Multicast Fast Forwarding Mode functon ."
        ::= { igmpSnooping 7 }

    staticMulticast OBJECT IDENTIFIER ::= { multicastFiltering 2 }
    staticMulticastTable OBJECT-TYPE
        SYNTAX SEQUENCE OF StaticMulticastEntry
        MAX-ACCESS not-accessible
        STATUS current
        DESCRIPTION
            "The static multicast table."
        ::= { staticMulticast 1 }

    staticMulticastEntry OBJECT-TYPE
        SYNTAX StaticMulticastEntry
        MAX-ACCESS not-accessible
        STATUS current
        DESCRIPTION
            "Static multicast Entry."
        INDEX { staticMulticastAddress }
        ::= { staticMulticastTable 1 }

    StaticMulticastEntry ::=
        SEQUENCE {
            staticMulticastAddress
                MacAddress,
            staticMulticastPorts
                PortList,
            staticMulticastStatus
                INTEGER
            }

    staticMulticastAddress OBJECT-TYPE
        SYNTAX MacAddress
        MAX-ACCESS read-create
        STATUS current
        DESCRIPTION
            "The static multicast address."
        ::= { staticMulticastEntry 1 }

    staticMulticastPorts OBJECT-TYPE
        SYNTAX PortList
        MAX-ACCESS read-create
        STATUS current
        DESCRIPTION
            "The port map of the static multicast address."
        ::= { staticMulticastEntry 2 }

    staticMulticastStatus OBJECT-TYPE
        SYNTAX INTEGER {
            active(1),
            createAndGo(4),
            createAndWait(5),
            destroy(6)
        }
        MAX-ACCESS read-create
        STATUS current
        DESCRIPTION
            "The status is active to indicate normal.
            Use createAndGo to create new on multiple SET.
            Use createAndWait to create new on one SET all then actvie.
            Use destroy to delete this row."
        ::= { staticMulticastEntry 3 }

I'd be grateful for any ideas.

Find more posts tagged with

eds-p510

igmp

moxa

Accepted answers

All comments

FormerMember

Found more information: the type of field is "OCTET-STRING". Loading up the MIB in MIB Smithy reveals the following:

"Each octet within this value specifies a set of 8 ports, with the first octet signifying ports 1 through 8 , the second octet signifying ports 9 through 16, etc. Within each octet, the most significant bit represents the lowest numbered port, and the least significant bit represents the highest numbered port. Thus, each port of the bridge is represented by a single bit within the value of this object. If that bit has a value of '1', then that port is included in the set of ports; the port is not included if its bit has a value of '0'."

Which is pretty much as I thought. The question is, can this be dealt with via a UnDP?

mesverrum

Unfortunately, at this time the UNDP tool does not work nicely with hex values.

There is a feature request open for this

FormerMember

Thanks - I've added my vote to that one. Unfortunately it doesn't seem to have gotten a lot of attention, given it was last updated mid 2016.

wildersa

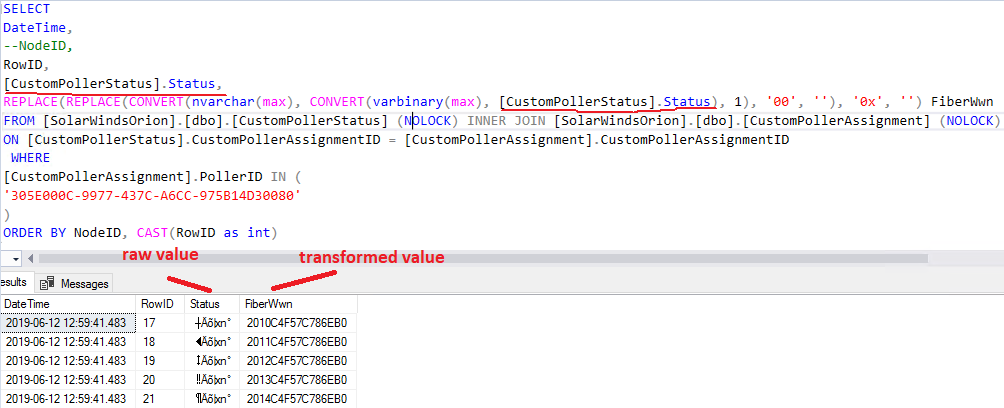

Hi, you can try this query:

SELECT
DateTime,
--NodeID,
RowID,
[CustomPollerStatus].Status,
REPLACE(REPLACE(CONVERT(nvarchar(max), CONVERT(varbinary(max), [CustomPollerStatus].Status), 1), '00', ''), '0x', '') FiberWwn
FROM [SolarWindsOrion].[dbo].[CustomPollerStatus] (NOLOCK) INNER JOIN [SolarWindsOrion].[dbo].[CustomPollerAssignment] (NOLOCK)
ON [CustomPollerStatus].CustomPollerAssignmentID = [CustomPollerAssignment].CustomPollerAssignmentID
WHERE
[CustomPollerAssignment].PollerID IN (
'305E000C-9977-437C-A6CC-975B14D30080'
)
ORDER BY NodeID, CAST(RowID as int)
Change the bold colounm for your necessity.

In SQL:

In snmp walk

For now, it's working for me.
