Interface Bandwidth Configuration on NPM

Guys,

I have a firewall interface under monitoring in NPM. Though the interface on the device is Configured for 10Gbps Bandwidth, the NPM only calculates it for 1Gbps.

Thus NPM calculates the Percentage Utilization of the Port wrong and keeps trigger me alerts saying it has crossed its threshold.

How can make my NPM aware that the Interface bandwidth is 10gbps and not 1gbps?

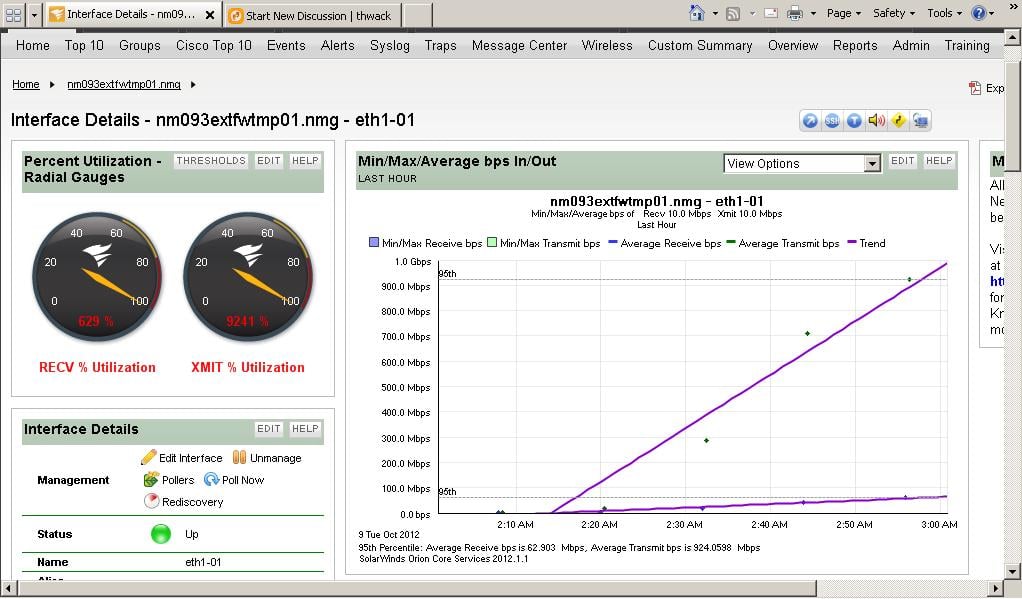

Image attached.

Kindly help

Rgds,
Prashanth

Find more posts tagged with

interface_state

npm_f5_device

Accepted answers

zbynek.botlo

You can set custom bandwidth for the interface (Interface Details -> Edit Interface -> Custom Bandwidth).

Hope this helps,

Zbynek Botlo

All comments

zbynek.botlo

You can set custom bandwidth for the interface (Interface Details -> Edit Interface -> Custom Bandwidth).

Hope this helps,

Zbynek Botlo

pskfun

Thank you Zbynek!!

That worked great... thanks again

markmattix

I'm having a similar problem. My interface is 100Mbps but the internet link data travels across is only 30mbps. I go into (Interface Details -> Edit Interface -> Custom Bandwidth) and change the bandwidth to 30mbps but the information is not reflected in charts. Any help would be appreciated!

superfly

Have you got a bandwidth statement on the interface itself?

markmattix

There may be a statement on the interface, NTA takes this statement into consideration? I'll have to check for it tomorrow, thanks for the advice!
