Monitoring Calamp (Vanguard) Cellular Modems

We have a few thousand of these Vanguard 3000 cellular modems and would like to put them all into Orion NPM. However, the cellular interface is not polling and there's no device template. Does anyone have any of these in your network? Just need some assistance getting started.

Find more posts tagged with

calamp

cellular

npm

vangurad

modem

Accepted answers

d09h

cwbojarski , any success with traps as shown above or with SNMPwalk?

All comments

d09h

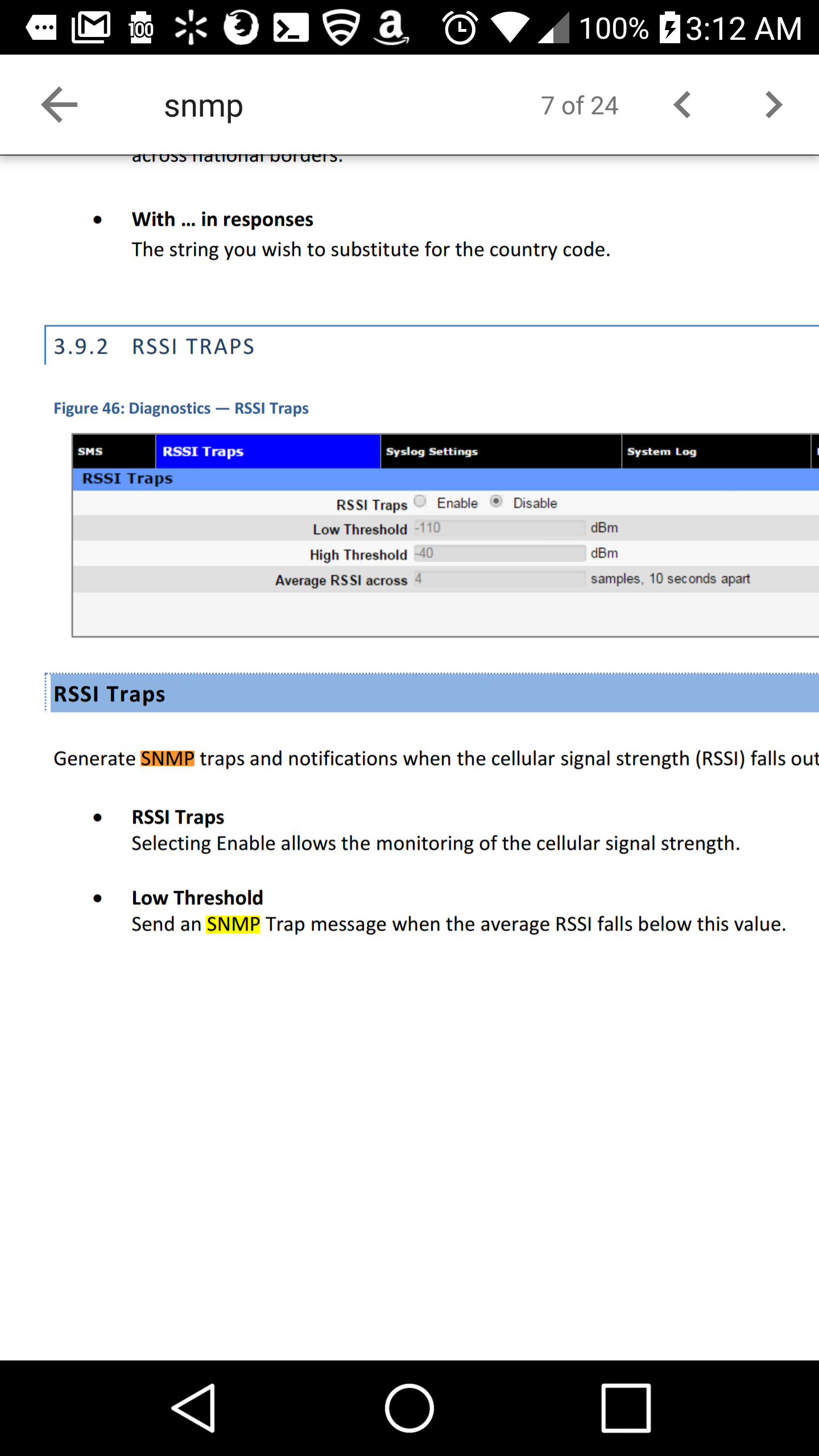

I would set up traps as described in the vendor documentation.

You can SNMPwalk to see if the cellular radio metrics appear. Make note of their OIDs for custom MIB polling if you find them.

d09h

cwbojarski , any success with traps as shown above or with SNMPwalk?

cwbojarski

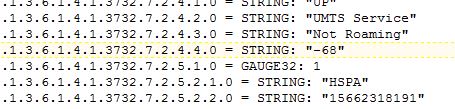

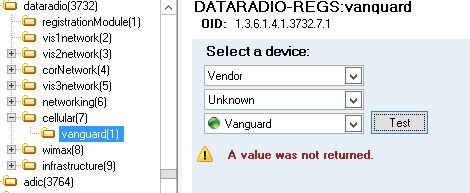

I did the SNMP walk and found the OIDs i needed. However, they do not show up in the MIB tree when try to create a new poller. It onlyh goes to 1.3.6.1.4.1.372.7.1 and comes back as nothing. oid from walk.JPG

cwbojarski

Disregard...i got it working. I'm a n00b.

d09h

Awesome. Glad that worked.
