Events - Warning State (Member state)

Hello Thwackers,

I am having a rough time explaining to some peers on why some devices are appearing in a "warning state" as they are members from a group.

The following screenshots give a better explanation.

1) Events appearing as the node is a member state of a group.

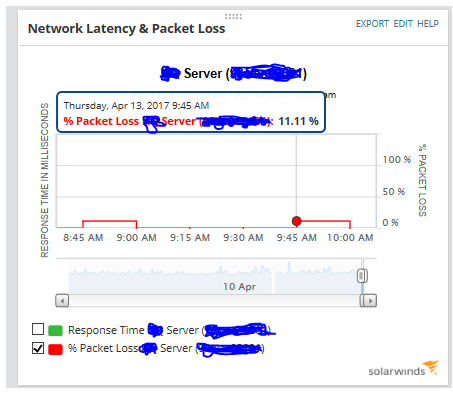

2) Drilled down, this is the only issue I could find pertaining to this node. Notice the timeline of 9:45am - 10:00am at 11.11% Packet loss.

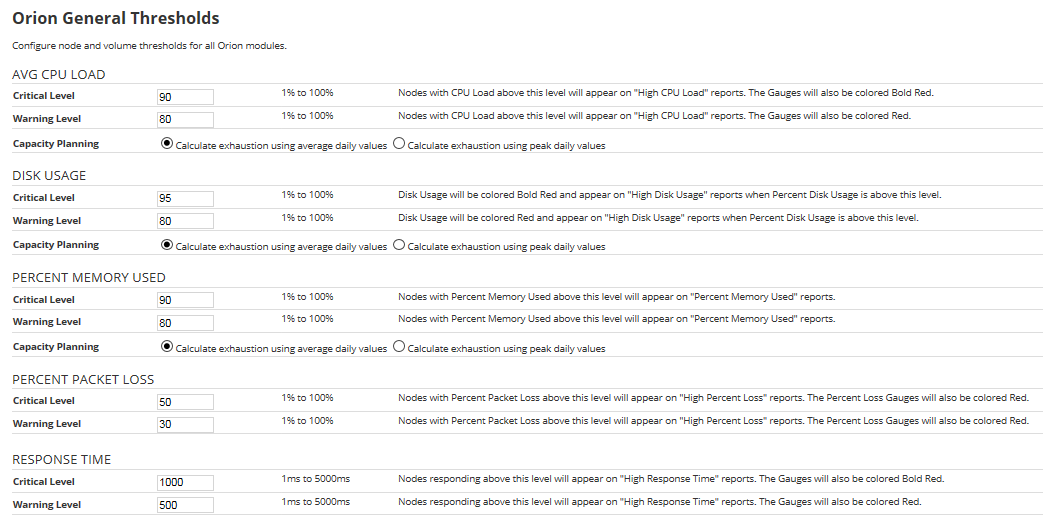

3) Thresholds is set to 30% when giving a "warning level" for packet loss.

While drilled down specifically to this node, I could not find anything else pertaining to the event for the "warning state" of this device. any other hints I could look at?

what am I missing? I have a couple colleagues inquiring on why some devices emit these events.

Thanks much,

WessenS

Find more posts tagged with

Accepted answers

All comments

d09h

Can you change the graph to show only the 9:45 - 10 timeframe?

wessens

I am able to change the interval to 5 minutes which for some events being triggered has resolved my issue per the following:

For this one the event was triggered at 4/13/2017 11:01AM

at a 5 minute granularity, between 11:00AM - 11:05AM I was able to get it over 30% which is what our threshold is set to.

I thought I figured it out by changing the interval to 5 minutes yet, 1 out of 5 events showed a trigger of only 25% in correlation to the exact timing an event was triggered.

So I could not tell my peers I figured out why completely.

Event Time: 9:59AM

Packet Loss Time: 9:55AM - 10:00AM

Packet Loss: 25%

- WessenS
