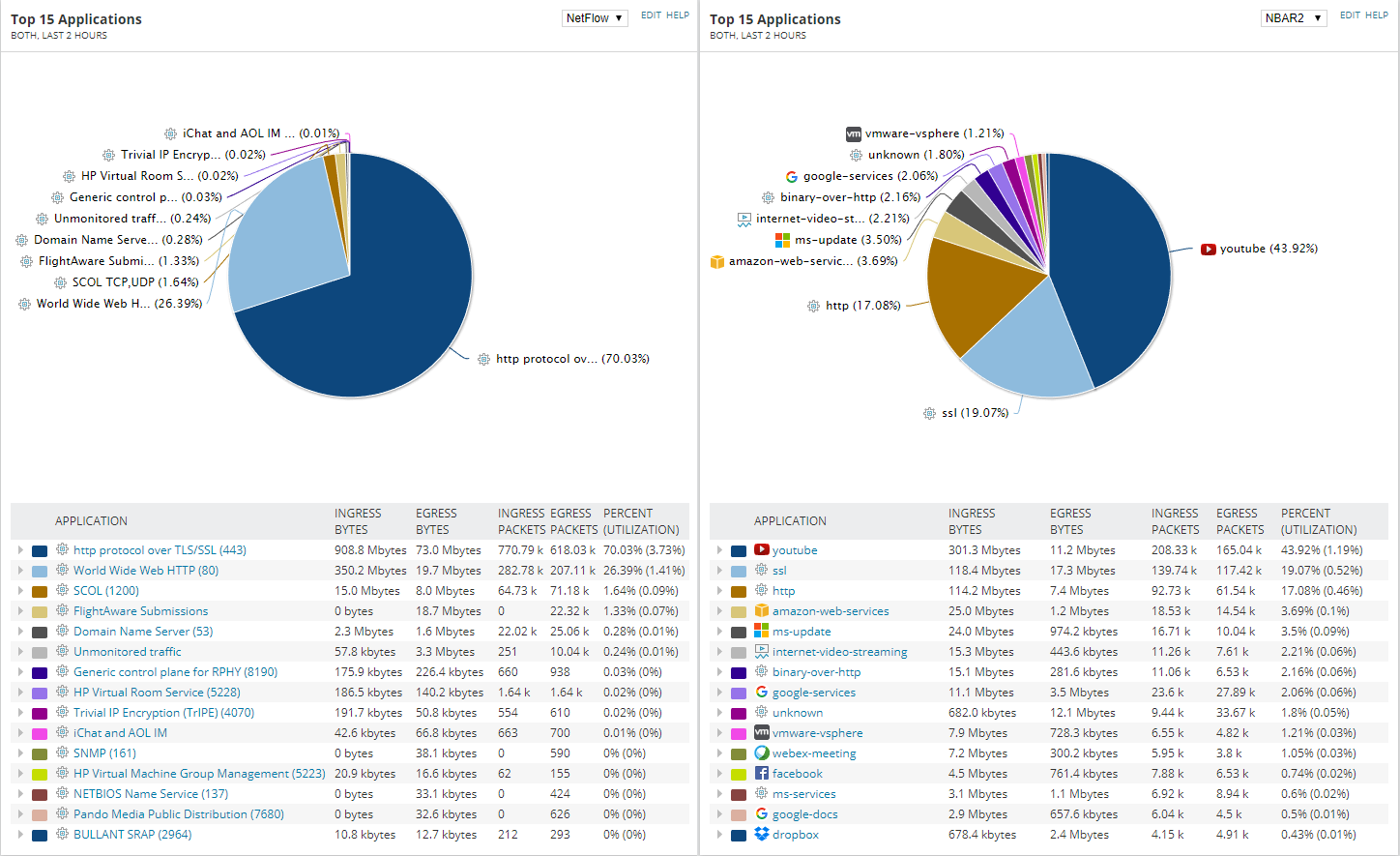

This is showing NetFlow and Nbar2 details. Same Interface, same time-frame. All I did was flip the Dropdown at the Top Right from NetFlow to NBar2 to show how much more detail you can see with NBar2.
PURPOSE: Showing how NBar2 can be configured, using the NBar2 Protocol Pack to see more details as to the sites used.
Add NBar2 Protocol Pack to your Cisco NBar2 capable device.
NBAR2 Protocol Pack version information for IOS versions - Cisco
NBar Protocol Pack needs to be added through Configuration Terminal:
NBAR Protocol Pack Configuration - Cisco
ip nbar protocol-pack flash0:pp-adv-isrg2-155-3.M2-23-27.0.0.pack
Add NBar Discovery on the Interface you want to see NBar2 Traffic.
QoS: NBAR Configuration Guide, Cisco IOS Release 15M&T - NBAR2 HTTP-Based Visibility Dashboard [Support] - Cisco
Configure Terminal
interface <your interface>
ip nbar protocol-discovery
Then follow the Administrative Guide on Setting up NBar2 to be seen Set up NBAR2 on Cisco devices
The picture above is based on the configuration in the Administrative Guide utilizing the NBar2 Protocol Pack available for the IOS the router I was using.
