Hello Y'all
Anyone come across this in the New Network Atlas?
I am unable to get untilization stats between two bits of kit..
Devices
Cisco ASR 1002 - 15.2(1)S, RELEASE SOFTWARE (fc1) - (SYSOID-1.3.6.1.4.1.9.1.923)
Cisco 7606s - 12.2(33)SRE7, RELEASE SOFTWARE (fc1) (SYSOID-1.3.6.1.4.1.9.1.863)
So I have defined both the physical interfaces that connects the devices together L2 and Layer connectivity is present on said interfaces using a /30 to connect them.
From the below you can see that the 7606 can get L3 and L2 utilization to other devices correctly but not to the ASR which I believe is the issue as the L2 Poller does not return a match for this device.

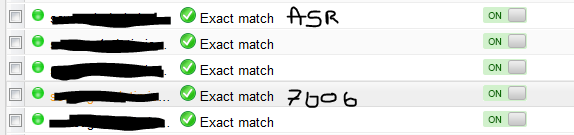

But the links in question between the ASR and 7606 are showing as down even though it has L2 and L3 connectivity.. I have checked the pollers and it does say that the L2poller does not match on the ASR but L3 does.
L2 Poller
L3 Poller
I was under the assumption that as long as there was either L2 or L3 connectivity it would "ConnectNow"
Anyone able to help, would be forever in your debt
