VPN tunnel monitoring for Cisco ASA - graphs showing obscure results

Hi,

Regards VPN monitoring on an ASA 5545, I have found the following article below:-

http://thwack.solarwinds.com/docs/DOC-137039

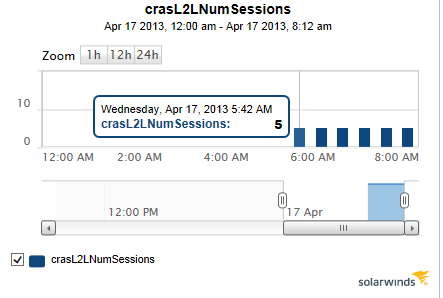

Using Universal Device Poller I have created the four OID's & they appear to be graphing. The site to site VPN graph identifies the number of correct, current no. of VPN tunnels but there are consistent gaps in the graph. See below:

L2L tunnels.PNG

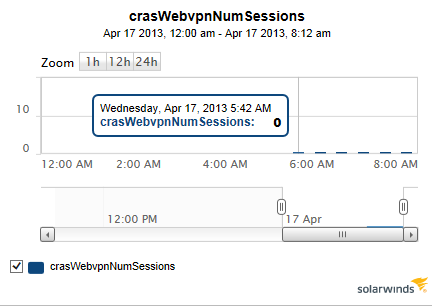

Also, the webvpn anyconnect graph displays no active users but logging onto the ASA there are at least 3 active users. See graph below:

Webvpn active users.PNG

Can anyone shed some light on why they don't appear to be graphing correctly?

Thanks.

Find more posts tagged with

Accepted answers

All comments

michal.hrncirik

try to change the sampling interval in "edit" settings of the chart or use line chart so you have continuous line over the time.

paulwoodsy

I have selected the trend line which makes graph look a little tidier.

How would I go about amending the polling intervals of the graph? On NPM I have shrunk the sample interval with graph>Edit. Is this the same function?
