Interface Traffic Detail

Trying to clarify something. When looking at the interface tracking detail I see 9 entries for each interface for each polling interval. My polling intervals for interface statistics collection are every 9 minutes. Does this mean I am querying the router and receiving detail stats for each minute within that 9 minute interval?

We are working on exporting our detailed stats nightly for key interfaces into our capacity planning system so we can retain this data outside of SW but still report on it as needed.

Find more posts tagged with

Accepted answers

mcbridea

Hi Mike,

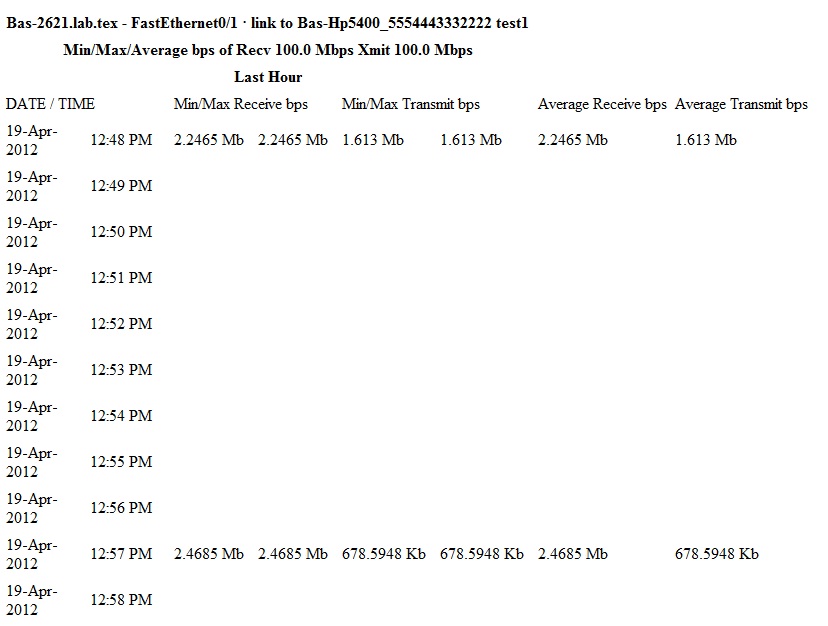

If you have the statistics polling set for 9 minutes then we only poll once every 9 minutes. I think the TimeDate stamp format is misleading in the view you show. Can you go to the interface detail page for the interface in question and click Edit on the Min/Max/avg pbs in/out chart. Then change the time period to Last Hour and the sample interval to Every Minute. The click Submit. From there click on the View Options pulldown and choose View Chart Data. It should show the polling each nine minutes with blank rows where there is no polling.

nine minute.jpg

All comments

nding

Mike,

Just to confirm. You are seeing 9 interface detail statistics on a single InterfaceID for the same date/time?

If the Interface Statistics Polling is every 9 mins, you should only see 1 row of statistics at 9 mins interval.

There is a change that the Interface itself is set to collect statistics per minute.

Run the following query to confirm:

SELECT StatCollection FROM Interfaces WHERE InterfaceID = __

* Fill __ with the InterfaceID

HTH.

mdriskell

That results in a 9.

Here is what I'm seeing when I look at the traffic detail however I removed the device and interface name from this data. Notice all 9 results differ by less than 1 second.

InterfaceSpeed	In_Averagebps	In_Minbps	In_Maxbps	In_TotalBytes	Out_Averagebps	Out_Minbps	Out_Maxbps	Out_TotalBytes	DateTime	InterfaceID
10752000	8193.535	8193.535	8193.535	553077	7933.512	7933.512	7933.512	535525	2012-04-12 00:03:28.843	805
10752000	1218.756	1218.756	1218.756	82268	1443.595	1443.595	1443.595	97445	2012-04-12 00:03:28.873	805
10752000	1227.955	1227.955	1227.955	82889	1432.217	1432.217	1432.217	96677	2012-04-12 00:03:28.903	805
10752000	1073.648	1073.648	1073.648	72473	1339.079	1339.079	1339.079	90390	2012-04-12 00:03:28.937	805
10752000	1054.508	1054.508	1054.508	71181	1253.555	1253.555	1253.555	84617	2012-04-12 00:03:28.967	805
10752000	990.4057	990.4057	990.4057	66854	1251.096	1251.096	1251.096	84451	2012-04-12 00:03:28.983	805
10752000	1055.678	1055.678	1055.678	71260	1295.643	1295.643	1295.643	87458	2012-04-12 00:03:29.013	805
10752000	1175.868	1175.868	1175.868	79373	1291.88	1291.88	1291.88	87204	2012-04-12 00:03:29.043	805
10752000	7371.584	7371.584	7371.584	497594	9154.815	9154.815	9154.815	617965	2012-04-12 00:03:29.077	805

niluka

Hi Mike,

best tool for this is solarwinds NTA, with that you can get more detail reports. NTA collect and report traffic stats real time. But keep one thing in you mind,, CPU load.

Neil

mdriskell

Neil, I'm not looking for the actual traffic (I have a separate tool for that). I'm simply wondering why for 1 polling interval I have 9 data points.

mdriskell

Can anyone from SW Staff answer this question???

mcbridea

Hi Mike,

nine minute.jpg
