I'm trying to add a cisco 2900 to solarwinds. I have created a RO community string but the test still fails in solarwinds when I try to add the switch. What else do I need to do? I'm a little new to cisco conifgs.
What version of SNMP are you trying to use?
Heres what i add to my 2921's
snmp-server community public RO
snmp-server enable traps
snmp-server host <ip> version 2c public
Have you created a host configuration on the 2900 that points to the PM server?
What does your PM config look like?
I tried entering this:
User Access Verification
Password:switch>enablePassword:INTSW#config tEnter configuration commands, one per line. End with CNTL/Z.switch(config)#snmp-server community "string" roswitch(config)#snmp-server enable trapsswitch(config)#snmp-server host x.x.x.x version 2c "string"
switch(config)#
whats the PM?

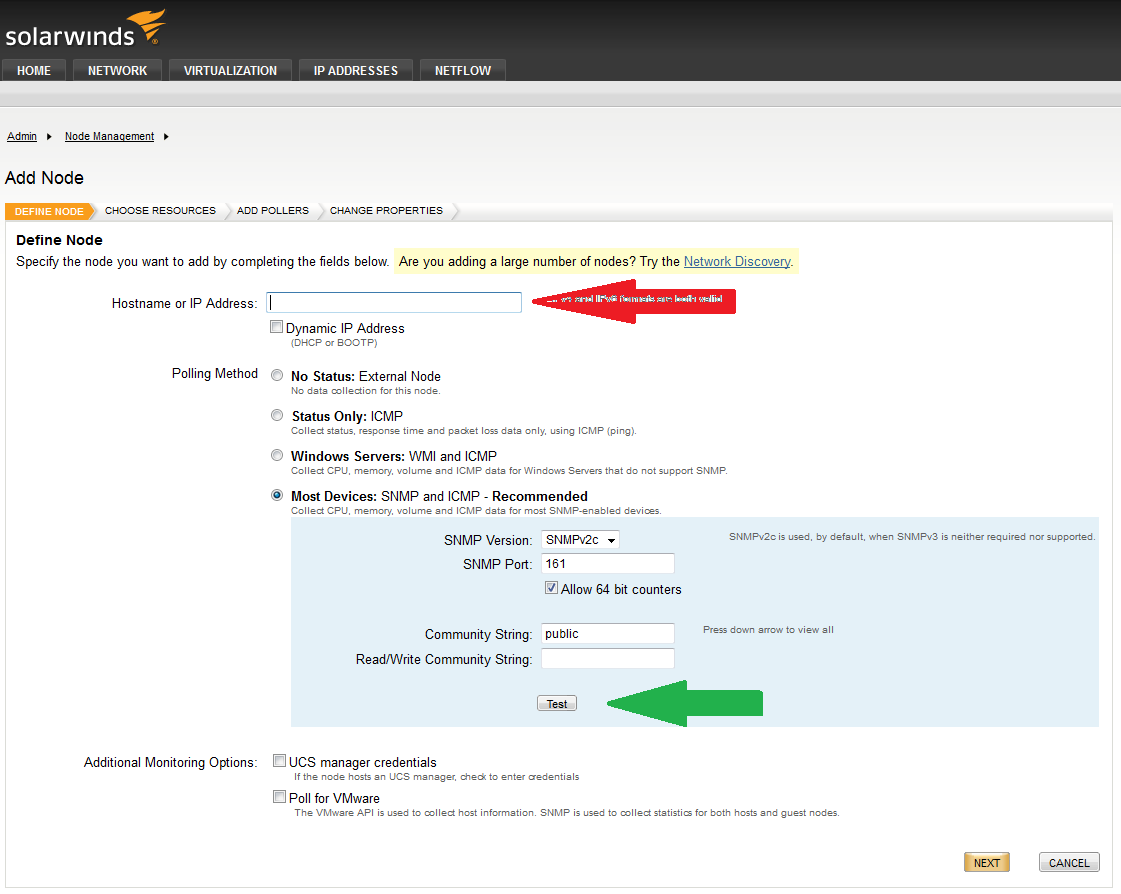

Go to Manage Nodes, then click on Add Node, and you will get this screen:
Put your IP address where the red arrow is pointing to, and click on the Test button where the green arrow is. If you don't get a successful message, then you need to check the connectivity between your Orion server and your device.
By the way you can't telnet to 161 to check access - SNMP uses UDP and the telnet command attempts to make a TCP connection.
You could conceivably telnet from the router to SolarWinds on 162 to see of the trap port is open in that direction.
<< This (TCP/162) doesn't seem to work for SOLARWINDS as it doesn't seem to have TCP/162 open. Other SNMP servers may have use TCP/162, however. Use of UDP for SNMP traffic is much more common than TCP>>
Hi
a script that can send an sms (message by phone) during an alertI do not use and I can not use the software Orion NCM Web Console Is there another solution that allows you to do what I seen
Can you give me more information on Solarwinds Alert Manager (win32 app) on the use of script and receiving sms message by phone thank you
Bilel
bilel,
I have answered you on this same question here. Please keep your questions limited to a single thread.
Thank you,
Danielle
