Additional Web Server Broken Images/Radial Gauges

hpstech

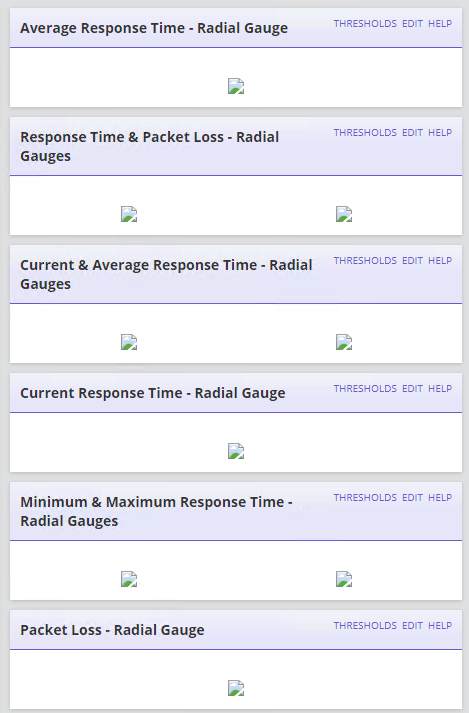

I've added an additional web server and there are many broken icons and radial images across multiple pages.

Anyone ever experience this?

Does a new additional web server need any Orion platform hotfix patching after the install?

Thanks

Find more posts tagged with

Accepted answers

hpstech

Applied all patches to main polling engine. We deployed the AWS with all the latest patches, main polling engine was not patched with January 2019 patches yet.

All is well now.

All comments

aLTeReGo

Can you please post a screenshot of what you're seeing? Have you tried re-running the website portion of the Configuration Wizard?

hpstech

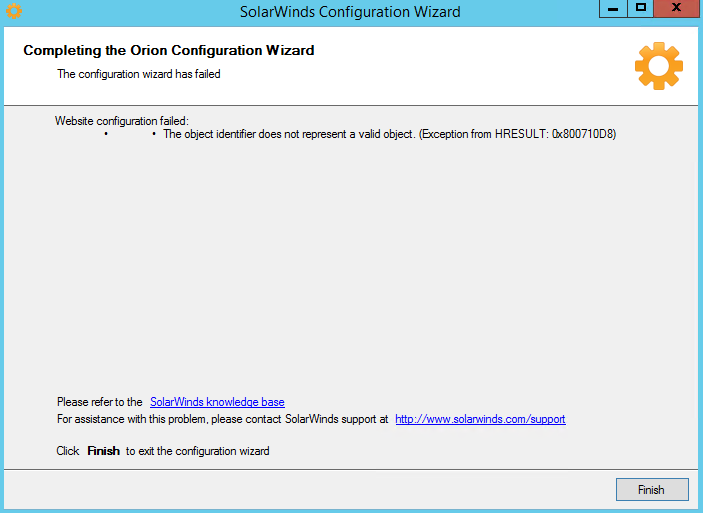

Thanks for the reply. I have re-ran the CW. I'm under the gun to get this stood up so I appreciate any suggestions.

I have confirmed that .NET versions are consistent.
I have tried with and without https.

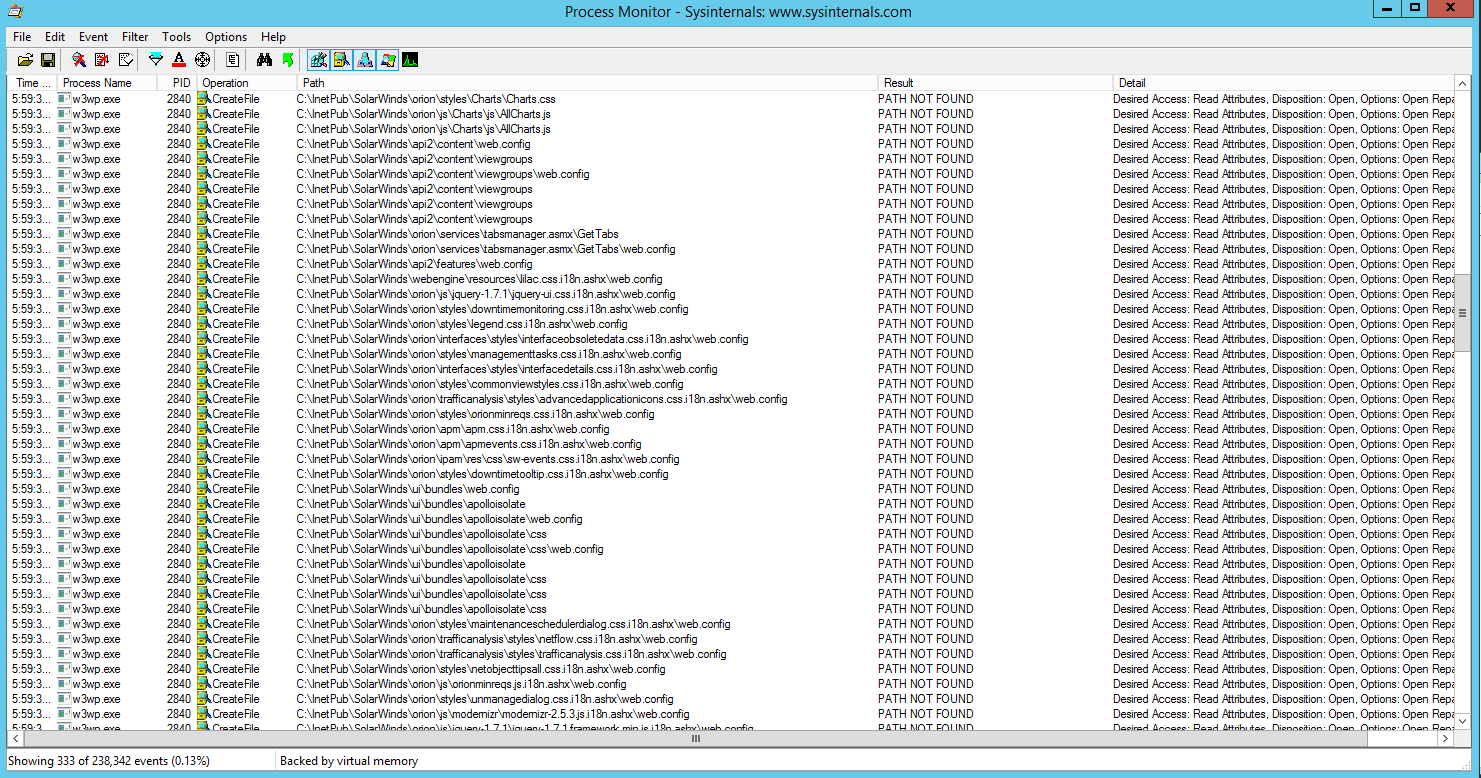

I ran ProcMon and found interesting missing file/folder events, but not entirely sure if they are related although some of the folders its complaining about are not there, but not sure if these are red herrings. I have attached a screenshot.

Ticket # 00240639

aLTeReGo

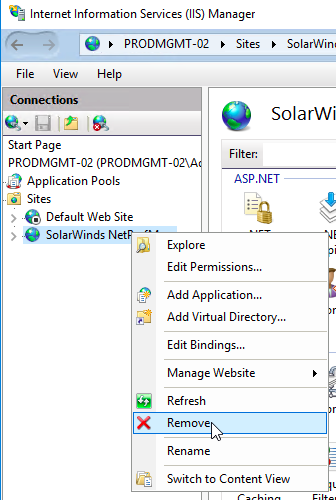

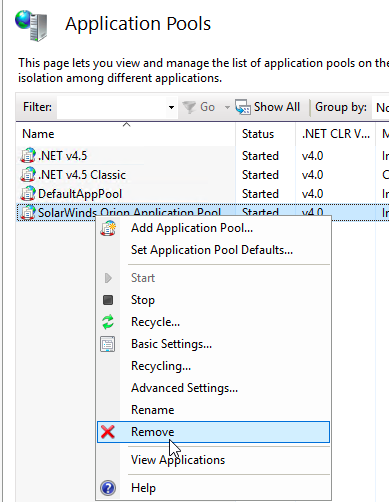

I recommend deleting the entire c:\inetpub\solarwinds directory, then removing the "SolarWinds NetPefMon" website and "SolarWinds Orion Application Pool" AppPool. Once you've deleted all three, re-run the website portion of the Configuration WIzard. It should recreate all of the items removed.

hpstech

Uninstalling IIS now per KB.

hpstech

Applied all patches to main polling engine. We deployed the AWS with all the latest patches, main polling engine was not patched with January 2019 patches yet.

All is well now.
