SNMP Trap Variable Bindings

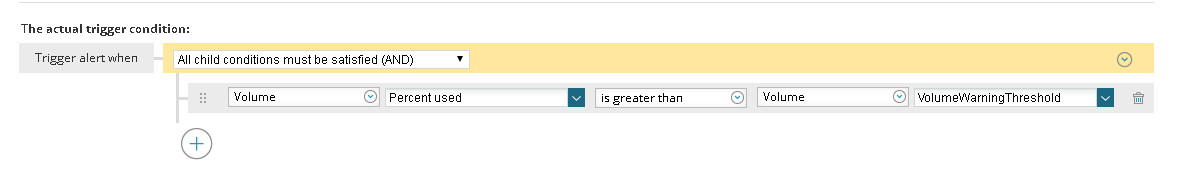

I'm trying to setup variable bindings for SNMP traps. I have the following SNMP Trap Alert setup with the following action:

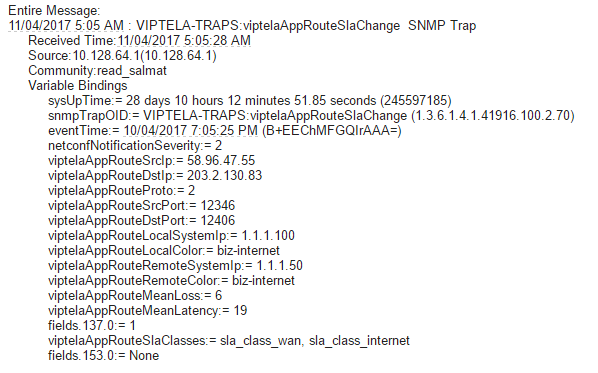

I can see in the email I receive that its receiving the variables and the variable bindings:

But in the email it's not replacing the variables:

Find more posts tagged with

Accepted answers

All comments

mesverrum

From when I have done varbinds in the past I believe the syntax is more generic, it should be something like this:

${vbData1}	Trap variable binding value
${vbName1}	Trap variable binding name

piharrison

This should reveal all the trapvarbinds and such... use HTML

Message:

Please check the details below for more information.

SNMP Trap Details
SolarWinds application information: ${Application}
Node community string: ${Community}
Copyright information: ${Copyright}
Fully qualified node name: ${DNS}
Host name of the device triggering the trap: ${Hostname}
IP address of device triggering alert: ${IP_Address}
Message sent with triggered trap and displayed in Trap Details field of Trap Viewer: ${Message}
Name or type of trap triggered: ${MessageType}
Raw numerical values for properties sent in the corresponding incoming trap.: ${Raw}
Raw numerical values for properties sent in the corresponding incoming trap. The same as ${Raw}.: ${RawValue}
Trap variable binding name 0: ${vbName1}
Trap variable binding value 0: ${vbData1}
Trap variable binding name 1: ${vbName1}
Trap variable binding value 1: ${vbData1}
Trap variable binding name 2: ${vbName2}
Trap variable binding value 2: ${vbData2}
Trap variable binding name 3: ${vbName3}
Trap variable binding value 3: ${vbData3}
Trap variable binding name 4: ${vbName4}
Trap variable binding value 4: ${vbData4}
Trap variable binding name 5: ${vbName5}
Trap variable binding value 5: ${vbData5}
Trap variable binding name 6: ${vbName6}
Trap variable binding value 6: ${vbData6}
Trap variable binding name 7: ${vbName7}
Trap variable binding value 7: ${vbData7}
Trap variable binding name 8: ${vbName8}
Trap variable binding value 8: ${vbData8}
Trap variable binding name 9: ${vbName9}
Trap variable binding value 9: ${vbData9}
Trap variable binding name 10: ${vbName10}
Trap variable binding value 10: ${vbData10}
Trap variable binding name 11: ${vbName11}
Trap variable binding value 11: ${vbData11}
Trap variable binding name 12: ${vbName12}
Trap variable binding value 12: ${vbData12}
Trap variable binding name 13: ${vbName13}
Trap variable binding value 13: ${vbData13}
Trap variable binding name 14: ${vbName14}
Trap variable binding value 14: ${vbData14}
Trap variable binding name 15: ${vbName15}
Trap variable binding value 15: ${vbData15}

-Phil
