Is there a way to add "All Application Monitors" or "All Component Monitors" to dashboard?

I have a request from business to add something other than All Applications Tree and Applications With Problems to a NOC view.

I think they are wondering if there is a widget where it can display a list of all application monitors, so they can immediately see the server name associated with a bad application.

The other one, I think they are wondering if they can see a list of all components, like SQL Experience Monitor on XXX

Does that functionality exist?

Edit: for now, I've recommended that they just fully expand the All Applications Tree widget and that seems to mostly accomplish the same thing.

Find more posts tagged with

noc view

sam

Accepted answers

steffen.gutzeit

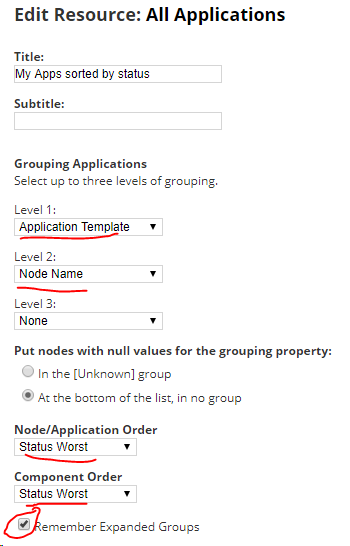

I would go with Osborne's approach and use the "All Application" widget. When you edit this widget you can have it look like this:

And when you expand the view even further you can see all the components that are being monitored for the concerned application:

Cheerio,

Steffen

All comments

osborne_graham

Theres an out of the box widget called 'down applications' which will list all app monitors in a down state along with the server reporting the error. Is this what you are after?

steffen.gutzeit

I would go with Osborne's approach and use the "All Application" widget. When you edit this widget you can have it look like this:

And when you expand the view even further you can see all the components that are being monitored for the concerned application:

Cheerio,

Steffen

dgsmith80

I use the "Applications With Problems" & "Down Applications" they are widgets that are out of the box.

rushcoil

I have those set up but I think they don't like the groups and would rather see a list.

It looks like expanding the levels and telling the view to stick will be a good solution. Thank you!

rushcoil

I stumbled upon the expanded view that sticks but I hadn't seen the status worst thing. That is a great idea. Thank you, I will add that on their view.

rushcoil

I'm curious - where did you find the option to edit the widget? I can't seem to find that on my end. Thanks!

EDIT: Oops, I had to get out of NOC mode to find it. Thank you!
