Issue with alerting on interfaces

I am trying to set up an alert on our SD-WAN box (CloudGenix ION 2k) to go off when Port 1 is down and Port 2 is up. I cannot get it to trigger at all.

What I want this alert to do: Port 1 is the device's primary connection. Port 2 is the back up connection. We want to be alerted when Port 1 is down and Port 2 is up...this will indicate if the device's primary is down and running on a back up.

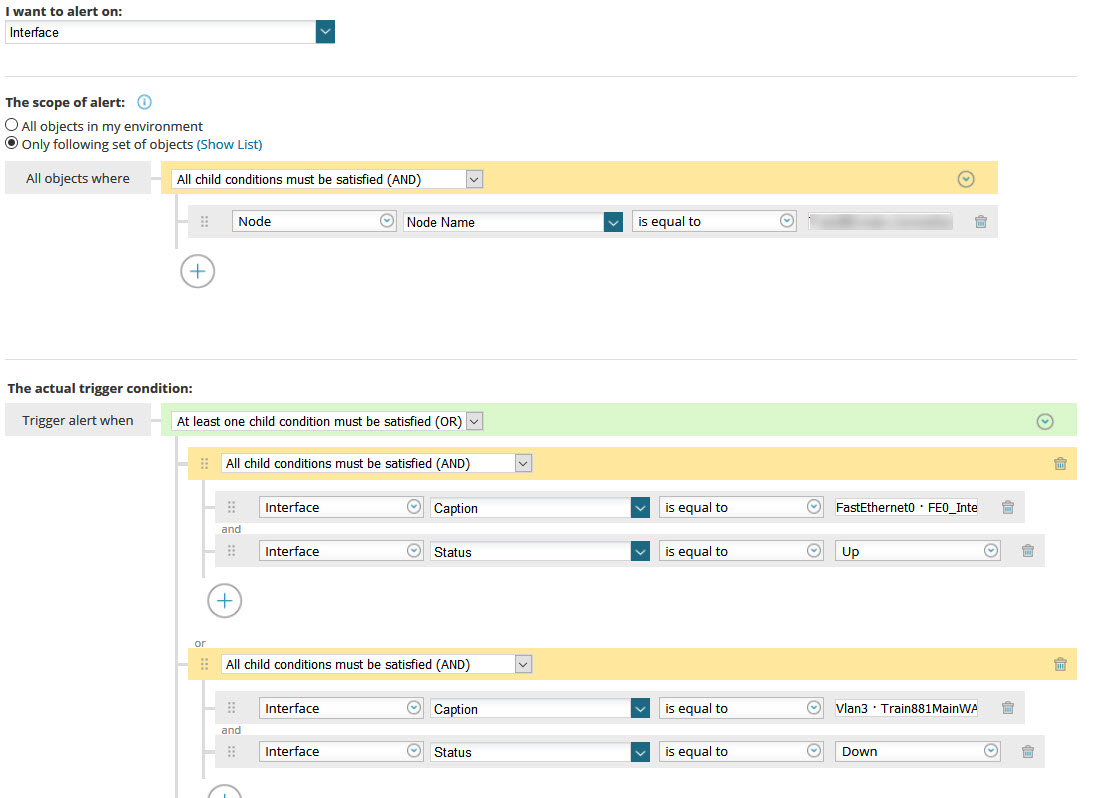

Here's what I've got so far:

I have set to alert on just one device for testing purposes.

I have tried both "interface caption" and "interface name" with no luck.

Picture of the node's interfaces:

What am I doing wrong here?

Thanks!

Find more posts tagged with

interfaces

port

npm

interface

sd-wan

Accepted answers

All comments

borgan

I tried the same thing you have and got the same result. I reconstructed the Trigger Conditions and it worked for me.

See the screenshot.

borgan

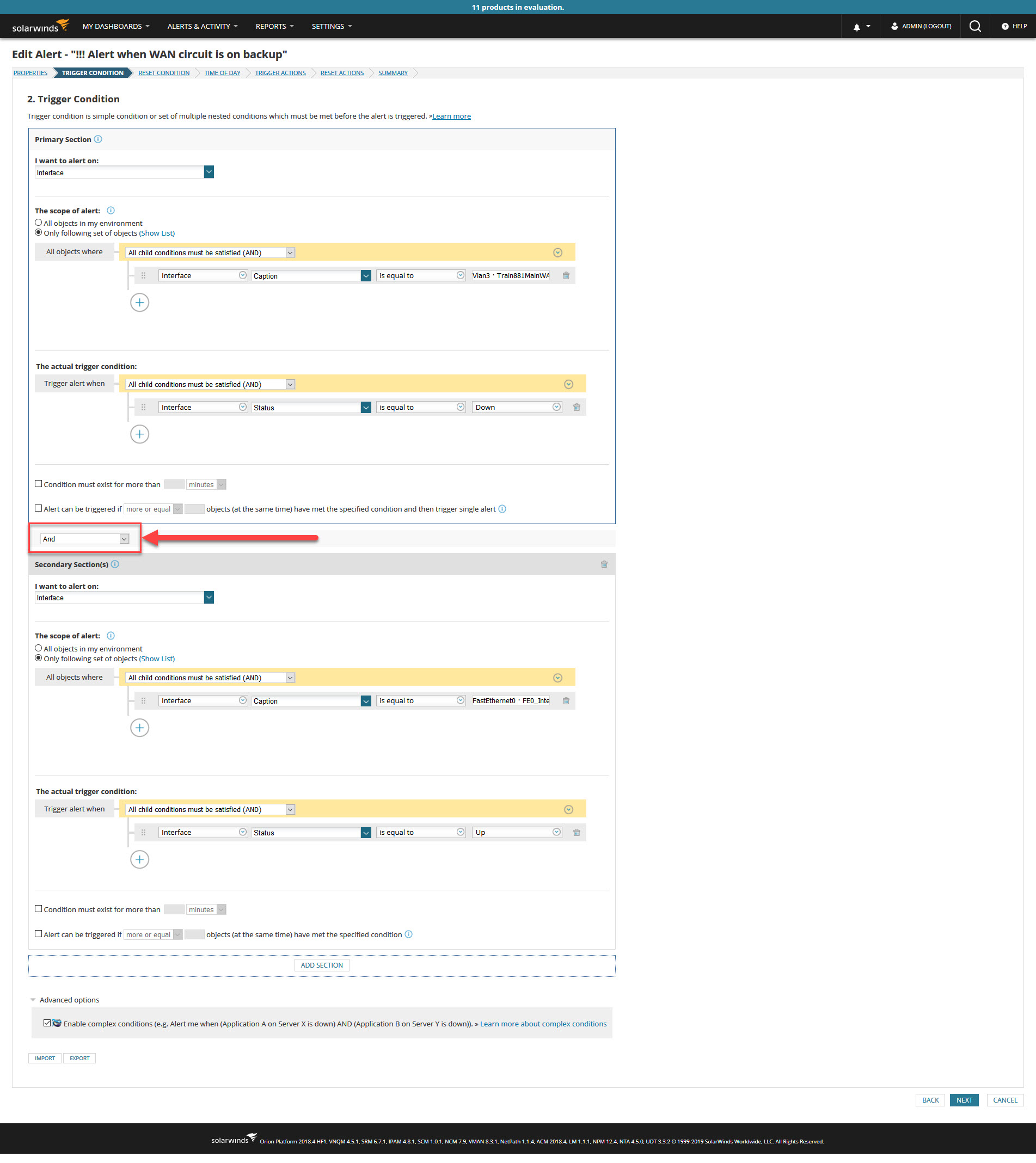

Ignore the first response as it will not work correctly. See this screenshot. In this one, I used the Complex Conditions so that the alert fires when the status of both the Primary and Secondary interfaces are in the required state at the same time.

alert trigger.jpg

rmullal

This worked! Much appreciated!

rmullal

So now some weird stuff is happening with this alert...the alert will trigger for some nodes when BOTH port 1 and port 2 are down. I've tried turning the alert off then on again, but no luck. I have also tried deleting and re-adding the node. Do you have any other suggestions? It's effecting about 10 nodes.
