VCSA and PSC CPU/Memory monitoring

We have set up the nodes for our VCSA (vCenter Server Appliance) and PSC (vCenter Platform Services Controller) in SolarWinds for monitoring. However, the average CPU and memory statistics for both show 100%. If you look at the resource consumption in vSphere neither the CPU or memory statistics are anywhere close to that. According to vSphere performance monitoring our VCSA CPU average is 19.3% and the memory is 11% and the PSC CPU average is 2.8% and the memory is 13.7%.

We have rebooted both guests, removed and added back the resource from the node, and unmanaged/remanaged each node. In SolarWinds the monitors for both guests and their resources are showing 100%.

Has anyone experienced this before? If so, what did you do to get it fixed?

Current environment

VCSA and PSC are VMware Linux OS

ESX hosts are at 6.0.0, build 4600944

Orion Platform 2016.1.5300, SAM 6.2.4

Find more posts tagged with

vcenter server platform services controller

vmware 6.0

vcsa

vcenter server appliance

psc

Accepted answers

All comments

stevenwhunt

Have you opened a support case for this issue?

pboydit

We have opened a support case.

Thanks

abhough88

Were you able to get this resolved? We are having the same issue.

Thanks

Adam

FormerMember

Same here, having the same issue. Were you able to get a resolution?

skipdog77

We face the same issue. All four vcenter 6 appliances show 100% for memory and CPU load. Sometimes we can remove the monitoring and re-add it and for 1-2 poll cycles it shows the correct amount. After the second or third poll cycle it returns to 100%.

damien.solodow

What VCSA versions?

We have VCSA 6.5.0b, NPM 12.1.0 and SAM 6.2.4 and it's reporting correct CPU and memory load.

styrker801

We're also experiencing the same problem, we have 3 VCSA and 3 PSC (6.0u3, but had issues since 6.0) in the environment and they are all reporting the same high CPU utilization.

From my findings and I'm not sure if it's VMware or Solarwinds, but VMware's MIB shows the OID for CPU utilization is: 1.3.6.1.2.1.25.3.3.1.2 (VMware's published OIDs can be found in VMware's KB Article)

So if I run a SNMP walk against that OID, I get the following response:

HOST-RESOURCES-MIB

hrProcessorLoad

column

1.3.6.1.2.1.25.3.3.1.2

.1.3.6.1.2.1.25.3.3.1.2.1 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.2 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.3 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.4 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.5 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.6 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.7 = INTEGER: 100

.1.3.6.1.2.1.25.3.3.1.2.8 = INTEGER: 100

Since this particular VCSA has 8 vCPU, it returns 8 values, all at 100.

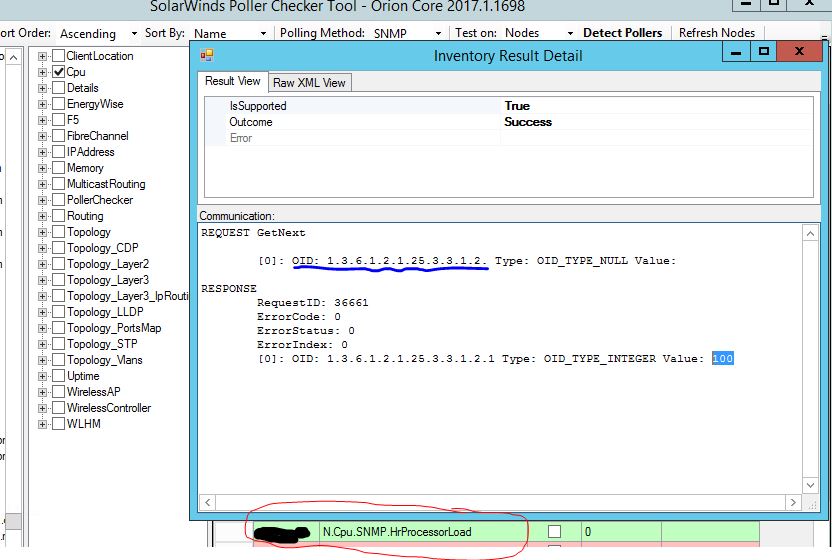

If I use the Solarwinds poller checker tool, I can validate that it is using the OID value specified by VMware, see attached screenshot.

So I don't know if Solarwinds is getting the wrong value from VMware or VMware is reporting the incorrect value to Solarwinds; but for now we have just disabled CPU/Memory utilization monitor on these devices.

farida.kanchwala

Hi,

Has anyone had any latest updates on this. We have recently upgraded to NPM 12.0.1 and SAM 6.3. We are having similar issues with all 8 CPU reporting 100% on VCSA 6.0. I run SNMP walk against the device OID and I get "No more variables left in this MIB view (It is past the end of the MIB tree)!

kevinsolarwindsvman

You nailed it.

I've seen quite a few of these cases come through support, where the software is reporting VCSA machines as having 100% CPU and Memory. Through poller checker and snmpwalk these devices are reporting to us this information even though the device isn't actually using that much of it's resources.

Currently the only potential solution I've been able to suggest to other customers is that if VMware has another OID that we can use or if you can find an OID your device will support that returns more correct values, we can use those to create a new poller using Manage Pollers on the site. This would replace our default poller and hopefully start to make it look more correct. Unfortunately I haven't had any customers get back to me with any success at this, so we are left at a bit of stand still.

styrker801

I installed a vCenter 6.5 in a test lab, and the VCSA or the PSC no longer shows 100%. My belief is it's an issue/bug with vCenter 6.0.

stevenstadel

Any update on accurate OIDs for Memory and CPU for vSphere 6.0 Appliances?

cczech

Here's the MIB article from VMware.

https://kb.vmware.com/s/article/1013445

and this article was updated around the same time per the previous post.

https://kb.vmware.com/s/article/2054359

shack

With regards to your PSC's are you just polling them via SNMP or passing creds for VMWare?

Do you know what level permission is needed to pass creds for VMWare or if it provides any additional information?

novell

Very new and novice to this to pardon my ignorance. What is OID (object ID?) and where do I get the poller checker and snmpwalk tools? And also if anyone found a resolution to this issue.

Thanks,

novell

we ran the following command on the vCenter Server and Orion reported the actual utilization:

sync; echo 3>/proc/sys/vm/drop_caches

farida.kanchwala

Hi Novell,

Yes OID is Object ID. You can find the poller checker within your SolarWinds installation files. Check this out https://support.solarwinds.com/success_center/Network_performance_Monitor_(NPM)/Use_the_Poller_Checker_tool

https://support.solarwinds.com/success_center/Network_perfomance_Monitor_(NPM)/SolarWinds_SNMP_Walk_A_New_Tool_For_Collecting_SNMP_MIB_Walks

crzyr3d

Any update on this issue? The ability to monitor without the use of MIB's?

crzyr3d

Were you able to get this resolved?

crzyr3d

We have this version VMware-vCenter-Server-Appliance 6.5.0.20000 embedded build 8307201 VMware, Inc x86_64. I'm still getting the way off stat. Are you monitroing by snmp v2 or v3?
