Need a resource that shows down nodes and Down time

I have a resource on my summary page that shows all of my down servers, but have just been asked to modify it so that it shows how long those devices have been down.

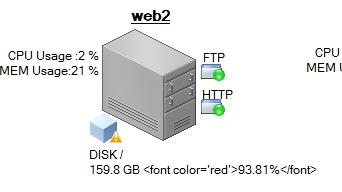

So far I have a real simple view.

Any help will be appreciated. Just need a new column that says how long it has been down.

Find more posts tagged with

custom resources

npm

summary view

Accepted answers

christopher.t.jones123

try this query

select n.caption as [Device]  -- shows the current status icon  , '/Orion/images/StatusIcons/Small-' + n.StatusIcon AS [_IconFor_Device]  -- makes a clickable link to the node details  , n.DetailsUrl as [_linkfor_Device]--shows Custom Property "Notification Group", n.CustomProperties.Notification_Group as [Notification Group]-- shows the timestamp of the down event, if there is no timestamp then is says the event was greater than the number of days in your event retention settings  , isnull(tostring(t2.[Down Event]),concat('Greater than ',(SELECT CurrentValue FROM Orion.Settings where settingid='SWNetPerfMon-Settings-Retain Events'),' days ago')) as [Down Event]  -- shows the timestamp of the up event, unless the object is still down  , isnull(tostring(t2.[Up Event]),'Still Down') as [Up Event]  -- figures out the minutes between the down and up events, if the object is still down it counts from the down event to now, displays 99999 if we cannot accurately determine the original downtime, and   , isnull(MINUTEDIFF(t2.[Down Event], isnull(t2.[Up Event],GETUTCDATE())),99999) as Minutes      from orion.nodes n  left join (SELECT       -- Device nodeid used for our join      StartTime.Nodes.NodeID          -- Down Event time stamp in local time zone       ,ToLocal(StartTime.EventTime) AS [Down Event]           -- Up Event time stamp in local time zone       ,(SELECT TOP 1       ToLocal(EventTime) AS [EventTime]       FROM Orion.Events AS [EndTime]       -- picks the first up event that is newer than the down event for this node    WHERE EndTime.EventTime >= StartTime.EventTime      -- EventType 5 is a node up     And endtime.eventtype = 5  AND EndTime.NetObjectID = StartTime.NetObjectID        AND EventTime IS NOT NULL        ORDER BY EndTime.EventTime        ) AS [Up Event]-- This is the table we are querying      FROM Orion.Events StartTime          -- EventType 1 is a node down  WHERE StartTime.EventType = 1            ) t2 on n.NodeID = t2.nodeid      -- this is how I catch nodes that are down but have aged out of the events table  where (n.status = 2 and [Up Event] is NULL and (n.CustomProperties.Notification_Group = 'Server Group' or n.CustomProperties.Notification_Group = 'Linux Group' or n.CustomProperties.Notification_Group = 'Hosted Technology'))    -- If you want to filter the results to only show outages of a minimum duration uncomment the below line  --and MINUTEDIFF(isnull(t2.[Down Event],(GETUTCDATE()-30)), isnull(t2.[Up Event],GETUTCDATE())) >  60      -- if you want to use this query in a search box of the Custom Query resource uncomment the below line  --and n.Caption like '%${SEARCH_STRING}%'      order by t2.[down event] desc

All comments

christopher.t.jones123

casey.carson take a look at this thwack post by mesverrum, it's a really nice resource and sounds like exactly what you need

Node Downtime with Duration and Minimum Length Filtering

casey.carson

I tried that report and it was not showing just my down nodes. Unfortunately, I do not know SQL well enough to make this work for my needs. I really just need the report above with a column showing how long it has been down.

Thank you!

christopher.t.jones123

can you share the query or a screenshot of how you are currently capturing this? or if you're willing can you try the below-modified query from the mentioned article, it should just target down devices. Notice i've changed the final "WHERE" statement to just look for node status = 2 (which is down)

select n.caption as [Device]
-- shows the current status icon
, '/Orion/images/StatusIcons/Small-' + n.StatusIcon AS [_IconFor_Device]
-- makes a clickable link to the node details
, n.DetailsUrl as [_linkfor_Device]
-- shows the timestamp of the down event, if there is no timestamp then is says the event was greater than the number of days in your event retention settings
, isnull(tostring(t2.[Down Event]),concat('Greater than ',(SELECT CurrentValue FROM Orion.Settings where settingid='SWNetPerfMon-Settings-Retain Events'),' days ago')) as [Down Event]
-- shows the timestamp of the up event, unless the object is still down
, isnull(tostring(t2.[Up Event]),'Still Down') as [Up Event]
-- figures out the minutes between the down and up events, if the object is still down it counts from the down event to now, displays 99999 if we cannot accurately determine the original downtime, and
, isnull(MINUTEDIFF(t2.[Down Event], isnull(t2.[Up Event],GETUTCDATE())),99999) as Minutes


from orion.nodes n
left join (SELECT
-- Device nodeid used for our join
StartTime.Nodes.NodeID

-- Down Event time stamp in local time zone
,ToLocal(StartTime.EventTime) AS [Down Event]

-- Up Event time stamp in local time zone
,(SELECT TOP 1
ToLocal(EventTime) AS [EventTime]
FROM Orion.Events AS [EndTime]
-- picks the first up event that is newer than the down event for this node
WHERE EndTime.EventTime >= StartTime.EventTime
-- EventType 5 is a node up
AND EndTime.EventType = 5
AND EndTime.NetObjectID = StartTime.NetObjectID
AND EventTime IS NOT NULL
ORDER BY EndTime.EventTime
) AS [Up Event]

-- This is the table we are querying
FROM Orion.Events StartTime

-- EventType 1 is a node down
WHERE StartTime.EventType = 1

) t2 on n.NodeID = t2.nodeid


-- this is how I catch nodes that are down but have aged out of the events table
where n.status = 2


-- If you want to filter the results to only show outages of a minimum duration uncomment the below line
--and MINUTEDIFF(isnull(t2.[Down Event],(GETUTCDATE()-30)), isnull(t2.[Up Event],GETUTCDATE())) >  60


-- if you want to use this query in a search box of the Custom Query resource uncomment the below line
--and n.Caption like '%${SEARCH_STRING}%'


order by t2.[down event] desc

casey.carson

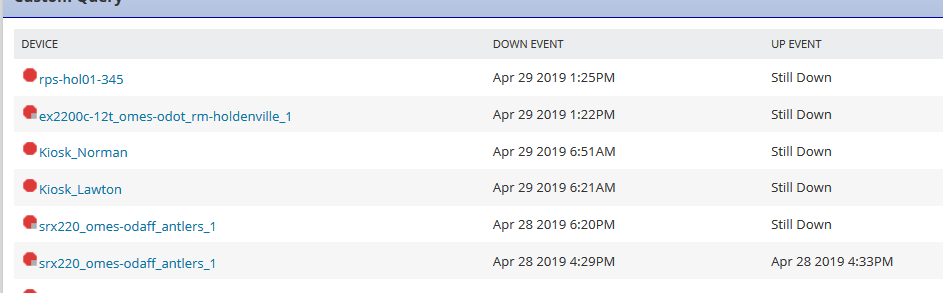

Thank you for your help! That gave me some great data, but it is listing several devices multiple times. If we can get this to just show the devices that are showing "Still Down" and target only devices from custom property called Notification Group. The 3 groups I want in the report are called Server Group, Linux Group, Hosted Technology.

Here is what I am using now:

bobmarley

Here is a simple SWQL

SELECT TOP 1000 IPAddress, Caption, StatusDescription

FROM Orion.Nodes

Where StatusDescription LIKE 'Node Status Is Down.'

jtimes

Is there a way to just show the currently down devices with this SWQL?

christopher.t.jones123

not sure which one you are referring to. But all the queries posted here should only show nodes that are down
